  • Page 1 User Manual of Product 1: Shure SE535LTD Professional Wired Sound Isolating Earbuds, High Definition Sound + Natural Bass, Three Drivers, Secure in-Ear Fit, Detachable Cable, Durable Quality - Red User Manual of Product 2: Shure True Wireless Adapter (Gen 2) for Sound Isolating Earphones, Secure Over-Ear Fit, Bluetooth 5 Wireless Technology, Long Battery Life With Charging Case, &...

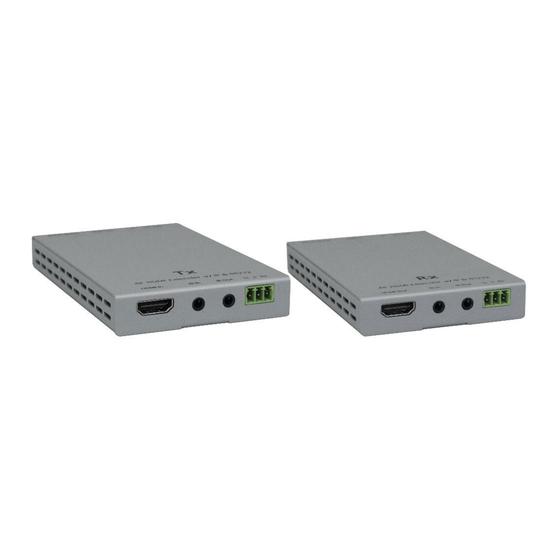

  • Page 2 MONOPRICE Blackbird™ 4K Pro HDBaseT™ Extender Kit P/N 21609 User's Manual...
  • Page 3: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference.  This device is intended for indoor use only. ...
  • Page 4: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-...
  • Page 5: Package Contents

    PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x HDBaseT™ Transmitter 1x HDBaseT Receiver 4x Mounting Brackets...
  • Page 6 6. Power LED: Illuminates red when power is applied. 7. HDBT Out: RJ45 jack for connecting the Cat6 cable to the Receiver. 8. RS232 Mode Switch: Switch for determining the behavior of the RS232 connection. When in the Ctrl position, it serves as an RS232 serial extender. When in the Update position, it allows you to update the Valens IC program by connecting to a PC and running the batch file.
  • Page 7: Sample Connection Diagram

    SAMPLE CONNECTION DIAGRAM INSTALLATION Perform the following steps to install this extender kit. 1. Ensure that all equipment to be connected is powered off and unplugged from its power source. 2. Place or mount the receiver and transmitter in their intended locations. 3.
  • Page 8 6. (Optional) Plug an IR transmitter (not included) into the IR Out jack on the Receiver, then position the IR emitter so that it can transmit infrared signals to the display. 7. Route a Cat6 Ethernet cable (not included) between the Receiver and the Transmitter.
  • Page 9: Technical Support

    Congratulations, your extender is installed and fully operational! TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.
  • Page 10: Specifications

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your...
  • Page 11 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Blackbird™ is a trademark of Monoprice Inc. HDBaseT™ is a trademark of HDBaseT Alliance. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

This manual is also suitable for:
