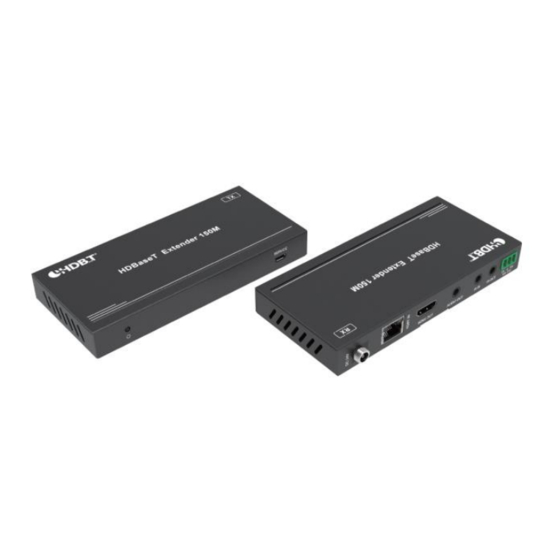

- Page 1 Blackbird™ 4K HDBaseT™ Extender Kit P/N 41097 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 openings. Ensure that the device is in an open area where it can get sufficient airflow to keep from overheating. Prior to operation, check the unit and power cord for • physical damage. Do not use if physical damage has occurred.
- Page 4 INTRODUCTION This Blackbird™ 4K HDBaseT™ Extender Kit allows you to extend 4K@60Hz HDMI® video signals to distances up to 394 feet (120 meters) over a single Cat6 Ethernet cable. It complies with the HDMI 2.0 and HDCP™ 2.2 specifications and supports up to 18Gbps bandwidth.
- Page 5 FEATURES Compliant with the HDMI® 2.0, HDCP™ 2.2/1.4, and DVI™ • 1.0 standards Supports 18Gbps bandwidth • Extends 4K@60Hz video to distances up to 394 feet (120 • meters) and 1080p@60Hz signals to distances up to 492 feet (150 meters) Includes an HDMI loop pass-through output on the •...
-
Page 6: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links. -
Page 7: Product Overview
PRODUCT OVERVIEW Transmitter : The LED illuminates red when power is applied. • SERVICE: Micro USB port for performing firmware • updates. DC 24V: DC barrel connector for connecting the included • AC power adapter. Note that this extender kit supports the Power over Cable (PoC) feature and therefore only includes a single AC power adapter. - Page 8 The LED on the right indicates the data status. It illuminates fully when the HDMI® signal contains HDCP™, flashes when the signal does not have HDCP, and is dark when there is no HDMI signal. HDMI OUT: HDMI loop pass-through output for •...
- Page 9 Receiver : The LED illuminates red when power is applied. • SERVICE: Micro USB port for performing firmware • updates. DC 24V: DC barrel connector for connecting the included • AC power adapter. Note that this extender kit supports the Power over Cable (PoC) feature and therefore only includes a single AC power adapter.
- Page 10 HDCP™, flashes when the signal does not have HDCP, and is dark when there is no HDMI® signal. HDMI OUT: HDMI port for connecting an HDMI display. • AUDIO OUT: 3.5mm stereo analog jack for connecting an • amplifier or powered speakers for separate amplification of audio de-embedded from the HDMI signal.
-
Page 11: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM... -
Page 12: Ir Pass-Through
IR PASS-THROUGH The following diagram illustrates the connection and operation of IR pass-through. -
Page 13: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 14 HDCP™ Version 2.2 and 1.4 Video Bandwidth 18Gbps 8/10/12-bit: 1080p@60Hz, 4K@30Hz, 4K@60Hz YCbCr Color Depth 4:2:2/4:2:0 8-bit: 4K@60Hz YCbCr 4:4:4 Transmission Method HDBaseT™ 4K@60Hz: 394 feet (120 Maximum Transmission meters) 1080p@60Hz: 492 feet (150 Distances meters) 4K@60Hz: 10 feet (3 meters) Maximum HDMI®...
-
Page 15: Regulatory Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right... - Page 16 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio...
- Page 17 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Blackbird™ is a trademark of Monoprice Inc. HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
