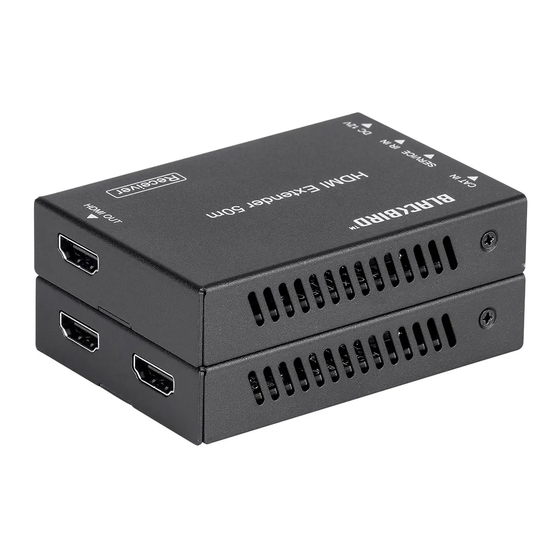

- Page 1 MONOPRICE Blackbird™ 4K HDMI® Extender P/N 24281 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 3: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 4: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x HDMI® extender transmitter 1x HDMI extender receiver... - Page 5 7. HDMI In: HDMI® port for connecting the video source device. Receiver 1. CAT In: RJ45 jack for attaching a Cat6 Ethernet cable from the transmitter. 2. Link LED: The LED illuminates when there is a valid link between the transmitter and the receiver.
-
Page 6: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM... -
Page 7: Installation
INSTALLATION 1. Ensure that all equipment to be connected is powered off and unplugged from its power source. 2. Place or mount the transmitter and receiver in their intended locations. 3. Using a High Speed HDMI® Cable (not included), plug one end into the HDMI input on your video display, then plug the other end into the HDMI Out port on the receiver. -
Page 8: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 9: Specifications
SPECIFICATIONS Model 24281 Maximum Video Resolution 4K@30Hz Video Bandwidth 10.2Gbps Color Spaces RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bits per channel HDMI® Version HDCP Version 4K@30Hz: up to 164 feet (40 meters) Maximum Transmission Distance 1080p@60Hz: up to 196 feet (60 meters) -
Page 10: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
