HDMI® and USB KVM Extender
P/N 34898
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 34898 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Monoprice 34898

  • Page 1 HDMI® and USB KVM Extender P/N 34898 User's Manual...
  • Page 2: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference.  This device is intended for indoor use only. ...
  • Page 3  This device has no user serviceable parts. Do not attempt to open, service, or modify this device. INTRODUCTION Thank you for purchasing this HDMI® and USB KVM Extender! This Keyboard-Video-Mouse extender can extend high resolution HDMI video and USB 2.0 signals to distances up to 164 feet (50 meters) over a single Cat6 Ethernet cable with zero latency.
  • Page 4: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-...

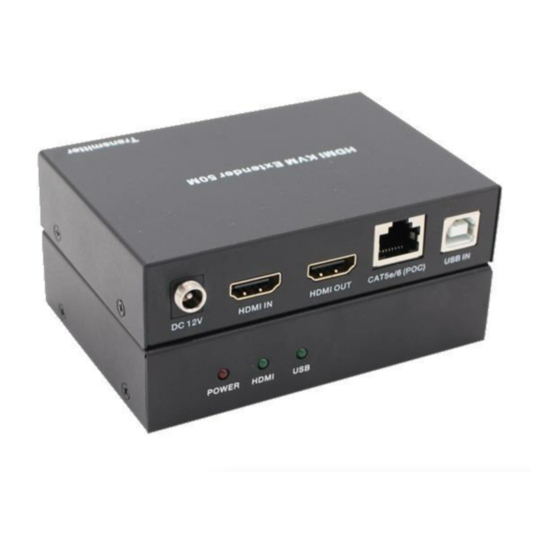

  • Page 5 4. DC 12V: DC barrel connector for connecting the included AC power adapter. 5. HDMI IN: HDMI® connector for connecting the HDMI video source. 6. HDMI OUT: HDMI loop output connector for connecting a local display. 7. CAT5e/6 (POC): RJ45 jack for connecting an Ethernet cable (not included) to the receiver.
  • Page 6: Sample Connection Diagram

    SAMPLE CONNECTION DIAGRAM...
  • Page 7: Specifications

    SPECIFICATIONS Model 34898 Transmitter Inputs 1x HDMI®, 1x USB Type-B Transmitter Outputs 1x HDMI, 1x RJ45 Receiver Inputs 1x RJ45 Receiver Outputs 1x HDMI, 2x USB Type-A Maximum Video Resolution 1080p@60Hz HDMI Version 1.4b HDCP Version USB Version Maximum Transmission Distance...
  • Page 8: Regulatory Compliance

    REGULATORY COMPLIANCE Notice for FCC Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
  • Page 9 HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. DTS®, the Symbol, and DTS and the Symbol together are registered trademarks of DTS, Inc. DTS-HD™ and DTS-HD Master Audio™ are trademarks of DTS, Inc. Dolby®, Dolby®...
