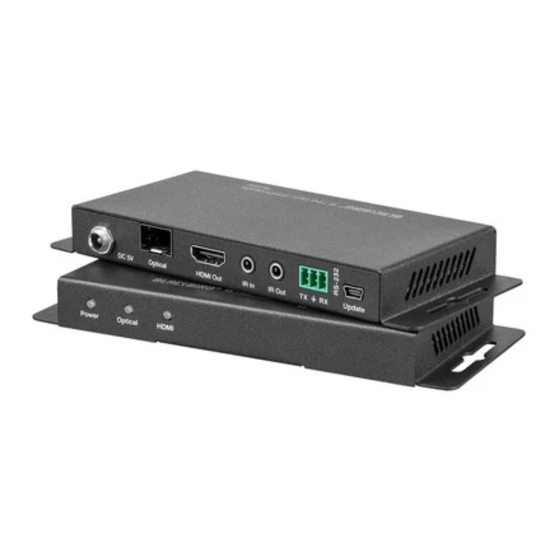

Blackbird™ 4K Fiber Optic HDMI® Extender
P/N 24279
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blackbird 24279 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Monoprice Blackbird 24279

  • Page 1 MONOPRICE Blackbird™ 4K Fiber Optic HDMI® Extender P/N 24279 User's Manual...
  • Page 2: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference.  This device is intended for indoor use only. ...
  • Page 3: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-...
  • Page 4: Package Contents

    PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Fiber optical transmitter 1x Fiber optical receiver...
  • Page 5: Product Overview

    PRODUCT OVERVIEW Transmitter 1. Power LED: The LED illuminates when power is applied. 2. Optical LED: The LED illuminates when there is a valid optical link between the transmitter and the receiver. 3. HDMI LED: The LED illuminates when there is an active HDMI® signal. 4.
  • Page 6 Receiver 1. Power LED: The LED illuminates when power is applied. 2. Optical LED: The LED illuminates when there is a valid optical link between the transmitter and the receiver. 3. HDMI LED: The LED illuminates when there is an active HDMI® signal. 4.
  • Page 7: Sample Connection Diagram

    SAMPLE CONNECTION DIAGRAM...
  • Page 8: Installation

    INSTALLATION 1. Ensure that all equipment to be connected is powered off and unplugged from its power source. 2. Place or mount the transmitter and receiver in their intended locations. Use the mounting brackets, as desired. 3. Using a High Speed HDMI® Cable (not included), plug one end into the HDMI input on your video display, then plug the other end into the HDMI Out port on the receiver.
  • Page 9: Technical Support

    TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.
  • Page 10: Specifications

    SPECIFICATIONS Model 24279 Maximum Video Resolution 4K@60Hz 4:4:4, 1080p@120Hz, 1080p 3D@60Hz Video Bandwidth 18 Gbps Color Spaces RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit, 10-bits, or 12-bits per channel HDMI® Version 2.0b HDCP Version Up to 3280 feet (1000 meters) using single-mode fiber cable Maximum Transmission Distance Up to 984 feet (300 meters) using multi-mode fiber...
  • Page 11: Regulatory Compliance

    REGULATORY COMPLIANCE Notice for FCC Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
