Summary of Contents for Monoprice Blackbird 21608

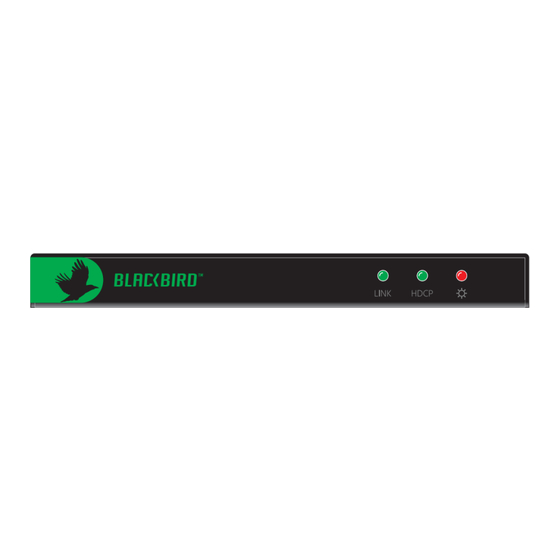

- Page 1 ™ ™ Blackbird by Monoprice 4K PRO HDBaseT EXTENDER KIT ™ 21608 User Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using the Blackbird 4K Pro HDBaseT Extender Kit, paying extra ™ ™ attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This Extender Kit is intended for indoor use only. -
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY WARNINGS AND GUIDELINES ........................2 INTRODUCTION ................................3 FEATURES ..................................3 PACKAGE CONTENTS ..............................4 PRODUCT OVERVIEW ..............................4 TWISTED PAIR CABLE DESCRIPTION ..........................5 SYSTEM CONNECTION ..............................6 TECHINCAL SPECIFICATIONS ............................7 TROUBLESHOOTING & MAINTENANCE ........................8 CUSTOMER SERVICE .............................. -
Page 4: Package Contents
PACKAGE CONTENTS Take an inventory of the package contents to make sure you have all the items listed below. Please contact Monoprice Customer Service for a replacement if anything is missing or damaged. 1x Transmitter • 1x Receiver • 4x Mounting Ears •... -
Page 5: Twisted Pair Cable Description
IR IN Connect with 5V receiver to collect infrared signal, work with far-end IR OUT port. IR OUT Connect with 5V emitter to collect infrared signal, work with far-end IR IN port. HDMI Connect with HDMI source ® ® Connect to the HDBT IN socket on Receiver via CAT5e / CAT6a cable, supports bi- HDBT OUT directional PoH. -
Page 6: System Connection
SYSTEM CONNECTION USAGE PRECAUTIONS The system should be installed in a clean environment with the proper temperature and humidity. 2. All of the power switches, plugs, sockets, and power cords should be insulated and safe. 3. All devices must be connected before the power is turned on. 4. -
Page 7: Techincal Specifications
TECHINCAL SPECIFICATIONS Transmitter Receiver INPUT 1x HDMI 1x IR In ® 1x IR In HDBaseT Input Signal ™ 1x RS232 1x RS232 1x HDMI Female 1x 3.5 mm mini-Jack for IR In ® Input Connector 1x 3.5 mm mini-Jack for IR In 1x RJ45 1x 3P Captive Connector 1x 3P Captive Connector... -
Page 8: Troubleshooting & Maintenance
Can’t control the device using a correct. PC through the RS232 port. Contact Monoprice Support if The device is broken. within warranty. Change the IP Address of the Can’t recognize the device that’s The connected device has the extender or the connected connected to the Ethernet port. -
Page 9: Customer Service
If you have any problems with your order, please allow us to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links. -
Page 10: Notice For Ised Canada
Monoprice , Blackbird , the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - Page 11 Product pictures are for reference only. Brea, CA 92821 – USA Specifications described herein are subject to change without prior notification. www.monoprice.com Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Copyright © 2023 Monoprice, Inc. All rights reserved.
