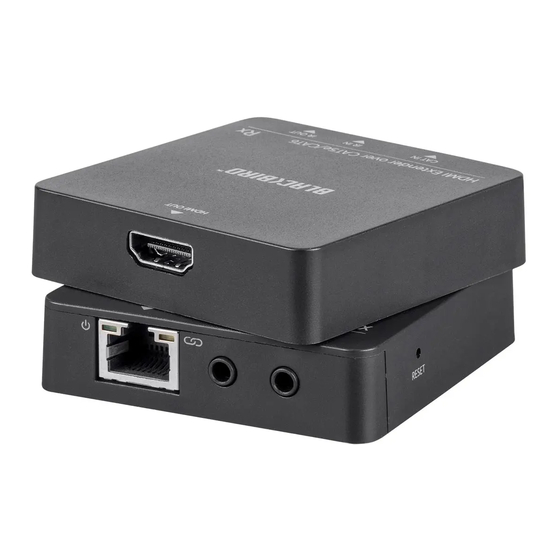

- Page 1 MONOPRICE Blackbird™ HDMI® Extender P/N 24181 User's Guide...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... - Page 3 Ensure that power is turned off and disconnected before making any electrical connections. Remove the batteries from the controller if it will go unused for a lengthy period of time. Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or detergents.
-
Page 4: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 5: Product Overview
PRODUCT OVERVIEW Transmitter 1. CAT OUT: RJ45 jack for connecting the Cat6 Ethernet cable to the receiver. The green LED illuminates when power is applied. The yellow LED illuminates when there is a valid link with the receiver. 2. IR IN: 3.5mm jack for attaching one of the included IR receivers. 3. -
Page 6: Sample Connection Diagram
Receiver 1. CAT IN: RJ45 jack for connecting the Cat6 Ethernet cable from the transmitter. The green LED illuminates when power is applied. The yellow LED illuminates when there is a valid link with the transmitter. 2. IR IN: 3.5mm jack for attaching one of the included IR receivers. 3. -
Page 7: Installation
INSTALLATION Perform the following steps to install the HDMI® extender. 1. Ensure that all equipment to be connected is powered off and unplugged from its power source. 2. Position the receiver and transmitter in their intended location. 3. Using a High Speed HDMI Cable (not included), plug one end into the HDMI input on your remote display or projector, then plug the other end into the HDMI OUT port on the receiver. -
Page 8: Technical Support
Congratulations, your Blackbird™ HDMI® Extender is installed and ready for use. TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 9: Specifications
REGULATORY COMPLIANCE Notice for FCC Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. - Page 10 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Blackbird™ is a trademark of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
