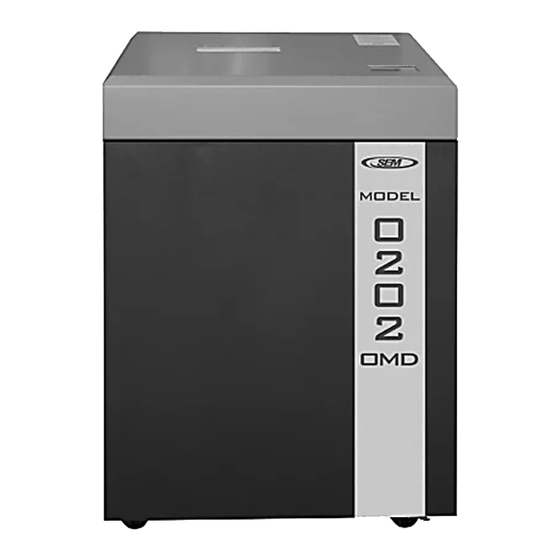

SEM Model 0202 OMD Product Operation And Maintenance Procedure

Optical media shredder
Hide thumbs

Advertisement

Quick Links

Download this manual

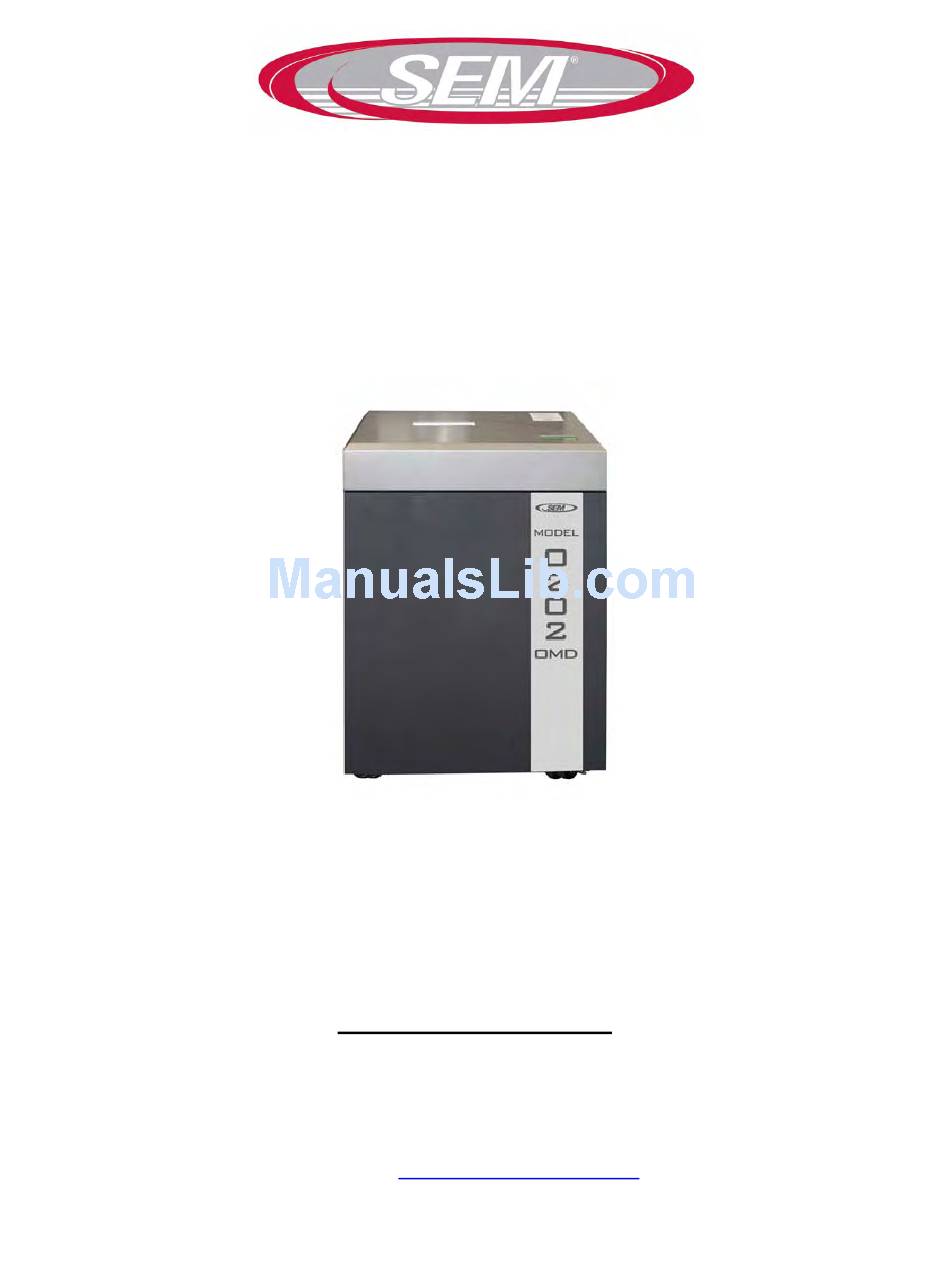

Security Engineered Machinery Co., Inc
PRODUCT OPERATION & MAINTENANCE PROCEDURE
For
SEM Model 0202 OMD
Optical Media Shredder
POP-0014 Rev. 0
Created 05/28/2013
Security Engineered Machinery Co., Inc.
NATIONWIDE SERVICE
Phone Toll Free: (800)225-9293
Email:Service@SEMSHRED.com
Fax: (508) 366-6814
Website:
WWW.SEMSHRED.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the Model 0202 OMD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEM Model 0202 OMD

Summary of Contents for SEM Model 0202 OMD

  • Page 1 Security Engineered Machinery Co., Inc PRODUCT OPERATION & MAINTENANCE PROCEDURE SEM Model 0202 OMD Optical Media Shredder POP-0014 Rev. 0 Created 05/28/2013 Security Engineered Machinery Co., Inc. NATIONWIDE SERVICE Phone Toll Free: (800)225-9293 Email:Service@SEMSHRED.com Fax: (508) 366-6814 Website: WWW.SEMSHRED.COM...

  • Page 2: Table Of Contents

    PRODUCT OPERATION & MAINTEANCE PROCEDURE Model 0202 OMD   Table of Contents ***IMPORTANT SAFETY PROCEDURES*** ....................3   Introduction ................................. 4   Items/Packaging ..............................4   Usage..................................4   Operating the unit .............................. 5   Customer Service ............................13  ...

  • Page 3: Important Safety Procedures

    PRODUCT OPERATION & MAINTEANCE PROCEDURE Model 0202 OMD ***IMPORTANT SAFETY PROCEDURES*** Your new CD/DVD shredder incorporates powerful, heavy duty cutting mechanisms, serious and permanent injury may result if proper precautions are not followed. 1. This equipment should never be operated by children or individuals that are untrained or incapable of understanding these safety precautions! 2.

  • Page 4: Introduction

    It also features a touch screen LCD Interface for ease of use and extended capabilities. The Model 0202 OMD is also capable of running on 120V or 230V power at 50 or 60Hz and comes equipped right out of the box to do so without any alterations required by the user. Simply plug in the appropriate power cord (both provided with the unit) depending on voltage supply.

  • Page 5: Operating The Unit

    PRODUCT OPERATION & MAINTEANCE PROCEDURE Model 0202 OMD Operating the unit Before using the unit, always ensure the corrugated waste bin and a waste bin bag is installed in the unit!! Attach the appropriate power cord to the receptacle at the rear of the unit. Attach the other end to normal line voltage.
  • Page 6 PRODUCT OPERATION & MAINTEANCE PROCEDURE Model 0202 OMD The LCD Display Interface will immediately illuminate. The initial SEM ‘splash’ screen will appear for several seconds. It shows the unit name and model number. The main user screen now appears. It is comprised of a Forward and a Reverse button. The LCD Display Interface is a touch screen display that allows the user to control the unit via finger touches and receive feedback via several symbols and indicators.
  • Page 7 PRODUCT OPERATION & MAINTEANCE PROCEDURE Model 0202 OMD The unit may be operated in two ways. The user may simply insert an optical media disc into the slot. The unit is equipped with a photo sensor for detection of the media and will activate automatically and shutoff after several seconds.
  • Page 8 PRODUCT OPERATION & MAINTEANCE PROCEDURE Model 0202 OMD In the event of a jam, the unit will automatically go into reverse mode and then forward again for several seconds to try and clear the jam. The symbols below are the indicators for a Jam and Auto clearing of the jam.
  • Page 9 PRODUCT OPERATION & MAINTEANCE PROCEDURE Model 0202 OMD If the unit becomes full of waste, the Waste Bin indicator will appear. The waste bin bag should now be removed and a new bag installed. Anytime the door is opened, the unit will de-activate if running and the Door Open symbol will appear.
  • Page 10 If the unit is not used and the LCD Interface Display is untouched for greater than 60 seconds, the unit will go into Low Power mode and the display will revert to the SEM ‘splash’ screen with a ‘dimmed’ screen. If the unit is further untouched for several more minutes the screen will turn fully black.
  • Page 11 PRODUCT OPERATION & MAINTEANCE PROCEDURE Model 0202 OMD When the Oil indicator appears the user should insert 3-4 oil sheets. These will need to be folded, as shown. The unit is equipped with a thermal switch for safety to ensure that the motor does not overheat. If the unit is run continuously for longer than 1 hour then at some point the switch will engage and disallow the unit to activate until the temperature has dropped to safe levels.
  • Page 12 If the unit encounters many errors or an unsafe condition is detected, the Service Needed symbol is displayed. If this occurs, please contact SEM Service and Support. If the “Service Needed” symbol is displayed, there will be a number displayed along with it. Please write down this number as it will help identify the cause of the fault.

  • Page 13: Customer Service

    GSA Customers: www.fedshred.com Commercial Customers: www.semshred.com IMPORTANT Two to three preventive maintenance calls per year are recommended Only authorized SEM service personnel should be allowed to service the shredder. Accessories Part Number Description 640ASB0202 Case of 50 Anti-Static Waste Collection BAGS...
