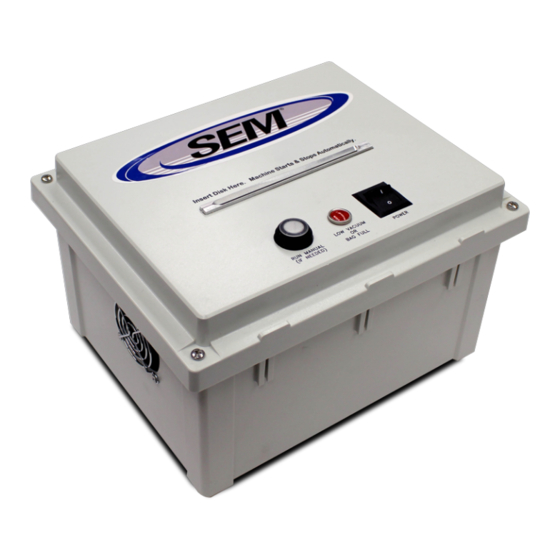

Operation and Maintenance Manual
Model 0200 OMD, Model 0200 OMD/SSD
Model 0200 OMD/SSD-C
POP-0120 – Rev 0 | Created 2-27-19 – ECN-00452
For sales, service, parts, and customer support, contact us:
SECURITY ENGINEERED MACHINERY
5 Walkup Drive • Westborough, MA 01581
info@semshred.com
1-508-366-1488 • Toll Free US 1-800-225-9293
www.semshred.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SEM 0200 OMD
Summary of Contents for SEM 0200 OMD

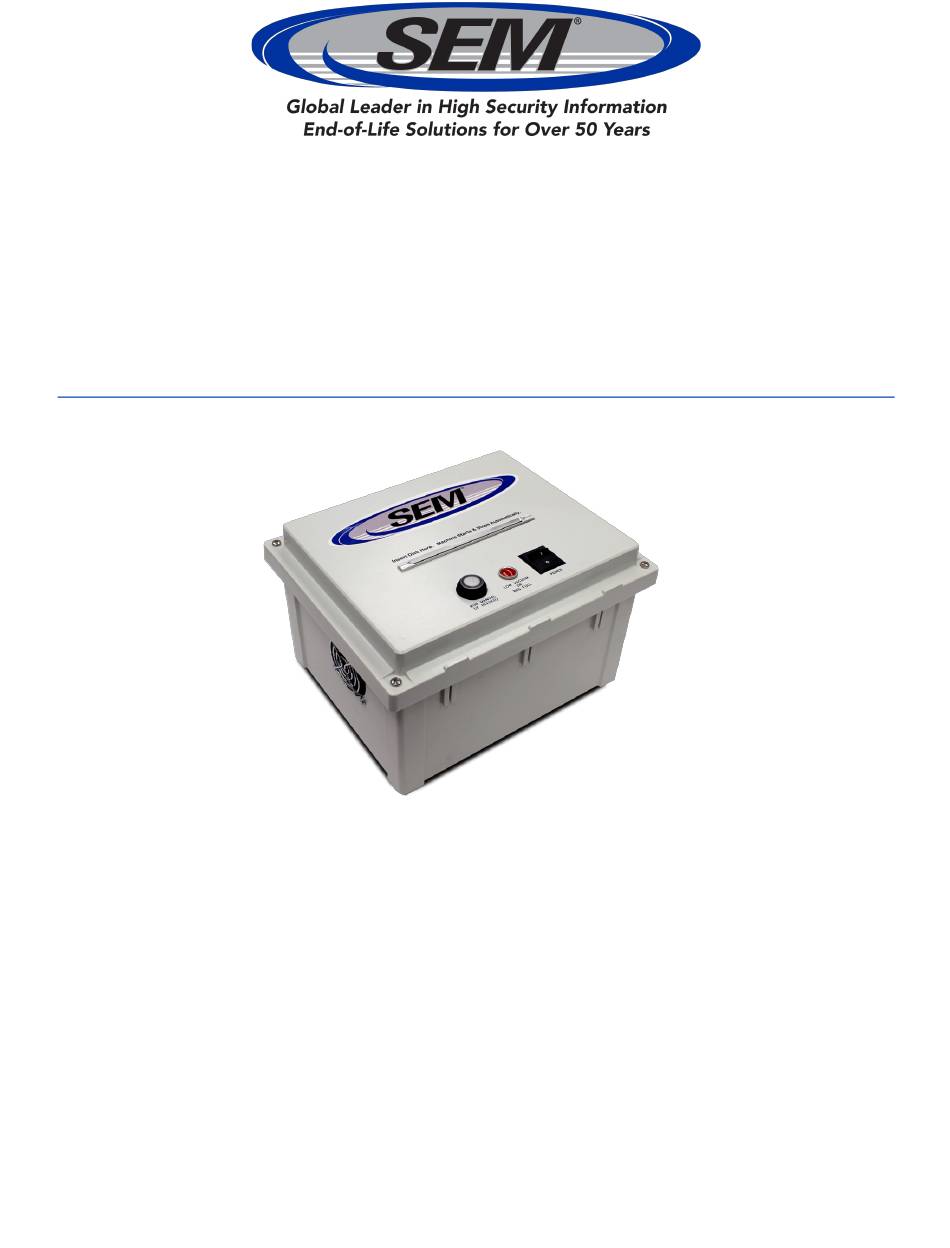

- Page 1 Operation and Maintenance Manual Model 0200 OMD, Model 0200 OMD/SSD Model 0200 OMD/SSD-C POP-0120 – Rev 0 | Created 2-27-19 – ECN-00452 For sales, service, parts, and customer support, contact us: SECURITY ENGINEERED MACHINERY 5 Walkup Drive • Westborough, MA 01581 info@semshred.com...
- Page 2 Model 0200 – POP-0120 Rev 0 Disclaimers Every care has been taken by the staff of SEM in compilation of the data contained in all training and informational materials (“collateral”) and in verification of its accuracy when published; however, the content of this collateral is subject to change without notice due to factors outside the control of SEM and this collateral should therefore be used as a guide only.
-
Page 3: Table Of Contents
Model 0200 – POP-0120 Rev 0 Contents Safety ..................................4 Overview ................................... 4 Unpacking and Installation ............................5 Without Cabinet ..............................5 With Cabinet ................................. 6 Operation ................................. 7 Controls ................................7 Normal Operation ..............................7 Maintenance ................................8 Tools ..................................8 Access Cutting Head ............................. -
Page 4: Safety
Model 0200 – POP-0120 Rev 0 Safety 1. Read manual and adhere to all warnings and instructions. 2. Do not attempt to adjust or modify this machine. This may void your warranty or cause the unit to deviate from factory specifications. 3. -
Page 5: Unpacking And Installation
Model 0200 – POP-0120 Rev 0 Unpacking and Installation Without Cabinet 1. Remove the unit and vacuum from the packaging. Retain unit packaging for 90 days. 2. Set up the vacuum according to the included instructions and attach any of the 1-1/4” nozzle tools. Insert the tool into the opening in the rear of the unit. -
Page 6: With Cabinet
Model 0200 – POP-0120 Rev 0 With Cabinet 1. Carefully remove unit from pallet and remove from packaging. Retain packaging for 90 days. a. Open top of box. b. Remove the hard top and foam corner pieces. c. With another person, tilt the box toward you and pull the unit towards you out of the box while the other pulls the box away. -
Page 7: Operation
Model 0200 – POP-0120 Rev 0 Operation Controls Figure 5 - Controls • Power: Turns the power to the unit on or off. • Low Vacuum or Bag Full Indicator: Indicates that there is not enough vacuum pressure for the unit to run. -
Page 8: Maintenance
Every 4-6 months – Vacuum or shake out any particles that have built up inside the unit. Yearly or as needed – Replace vacuum filter. Lubrication This unit does not require frequent lubrication; however, the gearbox should be checked by SEM personnel if issues arise as it requires special disassembly. Changing Bags – Cabinet 1. -
Page 9: Troubleshooting
Check that unit is receiving sufficient power. o Check fuse in the rear of the unit. You will need to remove the top of the cabinet. Parts, Service and More Description SEM PN# Vacuum Bag – 3/pack 300-45634417 Vacuum Filter...
