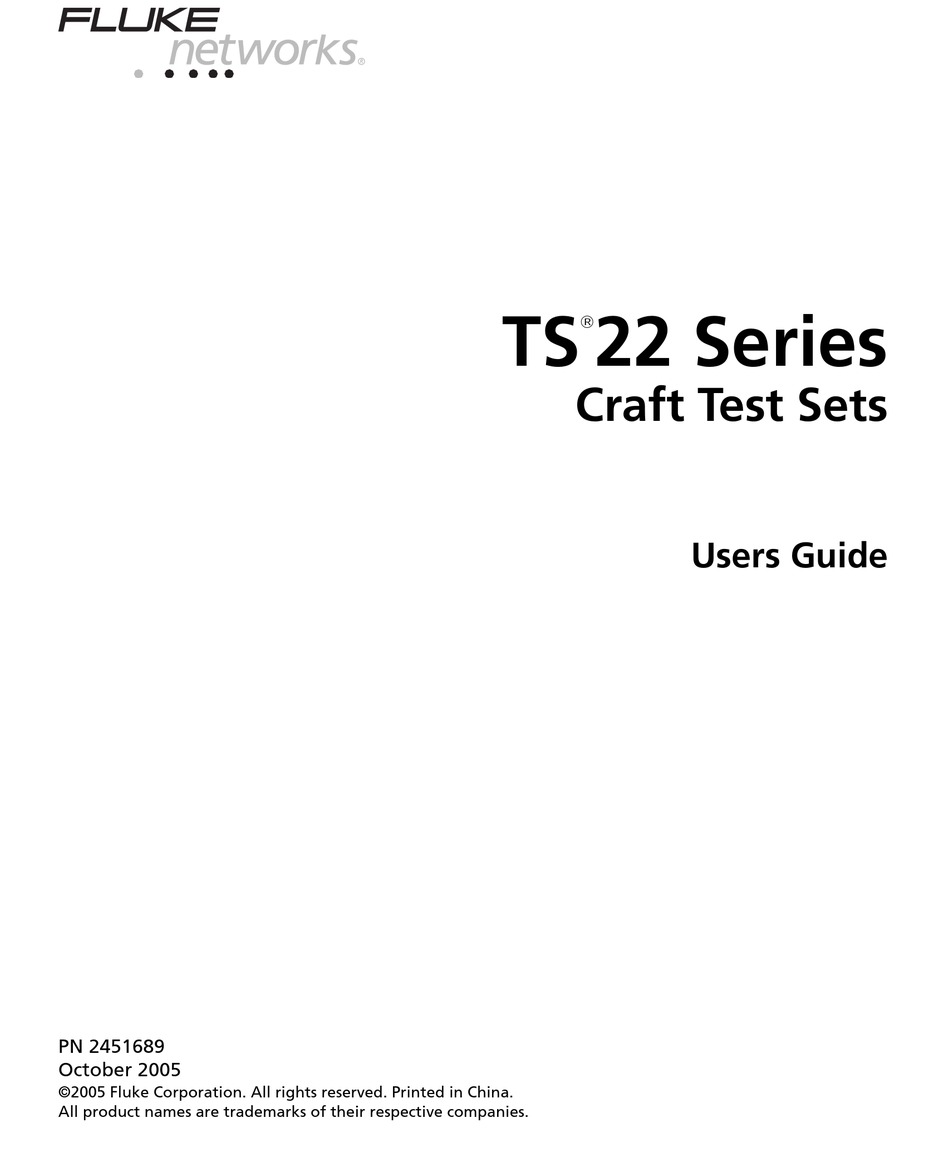

- Page 1 22 Series Craft Test Sets Users Guide PN 2451689 October 2005 ©2005 Fluke Corporation. All rights reserved. Printed in China. All product names are trademarks of their respective companies.
- Page 2 Networks warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective media. Fluke Networks does not warrant that software will be error free or operate without interruption.
-
Page 3: Table Of Contents
TS22A Speakerphone and Speaker Monitor Modes ................5 Keypad Controls and Indicators ........................ 6 Operation ................................7 TS22 Amplified Speaker Mode ........................7 TS22A Speakerphone Mode ........................7 TS22A Speaker Monitor Mode ........................7 Selecting a Dial Signal ..........................7 Last Number Redial ............................ -
Page 4: Introduction
(auto dial) for 9 individual • numbers. Japan: 03-3434-0510 • Korea: 82 2 539-6311 The TS22 Series Test Set often called a “butt-in,” is a • self-contained, line-powered, combination handset Singapore: 65-6799-5566 used by installers, repair technicians, and other •... -
Page 5: Safety Information
European Union directives. See Figure 1. Do not put products containing circuit The housing for the TS22 Series Test Set is made of boards into the garbage. Dispose of high-impact polycarbonate which provides excellent circuits boards in accordance with local insulating properties. -
Page 6: Battery
Battery” on page 9 for instructions on changing the Warning battery. When not in use, the 9 V battery in the TS22 Note Series Test Set should be changed once a If the test set fails to operate properly at any... -
Page 7: Switchable Electronic Ringer
Voice Controls When the speaker is on, the transmitter and receiver are automatically switched off to prevent acoustic Figure 3 describes the voice controls for the TS22 Series feedback. With no signal present, the speaker will Test Set. automatically turn off after 5 minutes to conserve battery power. -
Page 8: Ts22A Speakerphone And Speaker Monitor Modes
On the TS22A, pressing the MUTE button turns off the speakerphone microphone for privacy. On button the TS22, it disables the amplified speaker. SPEAKER This button controls the speakerphone (TS22A only) and Monitor speaker sound levels. See “TS22 Button Amplified Speaker” and “TS22A Speakerphone and Speaker Monitor Modes”. Figure 3. Voice Controls... -
Page 9: Keypad Controls And Indicators
Ring (negative) side. The LEDs will flash momentarily during pulse or tone dialing, and are off while in speakerphone mode or amplified speaker mode. Note The TS22 Series Test Sets function in either polarity. Figure 4. TS22 Series Test Set Keypad Area... -
Page 10: Operation
TS22 Amplified Speaker Mode Set the TALK/MONITOR switch to M, then press the SPEAKER button once to enter speaker mode To put the TS22 Test Set into amplified speaker mode: with low volume. Connect the test set to a line. The TALK/MONITOR Press the SPEAKER button a second and third time switch may be in either position. -
Page 11: Storing Number In Repertory Memory (Auto Dialer)
Dialer) Connect the test set to the line and receive dial tone. The TS22 and TS22A Test Sets have 9 memory locations, which correspond to number keys 1 through 9. Each Dial the number. location will store up to 18 digits. If a nineteenth digit is... -
Page 12: Line Monitoring
To locate a short circuit, open one side of the line chlorinated solvent on the test set. Doing so and place the TS22 or TS22A Test Set in the loop – will damage the test set. one test lead to each side of the opened line. On the Central Office (CO) side of the fault, a loud CLICK will be heard;... -
Page 13: Replacing The Belt Clip
The belt clip assembly is field replaceable in the event To replace the battery (see Figure 5): of damage or prolonged wear. To order a replacement belt clip, contact your local Fluke Networks authorized Disconnect the test set from the line and place on distributor.
