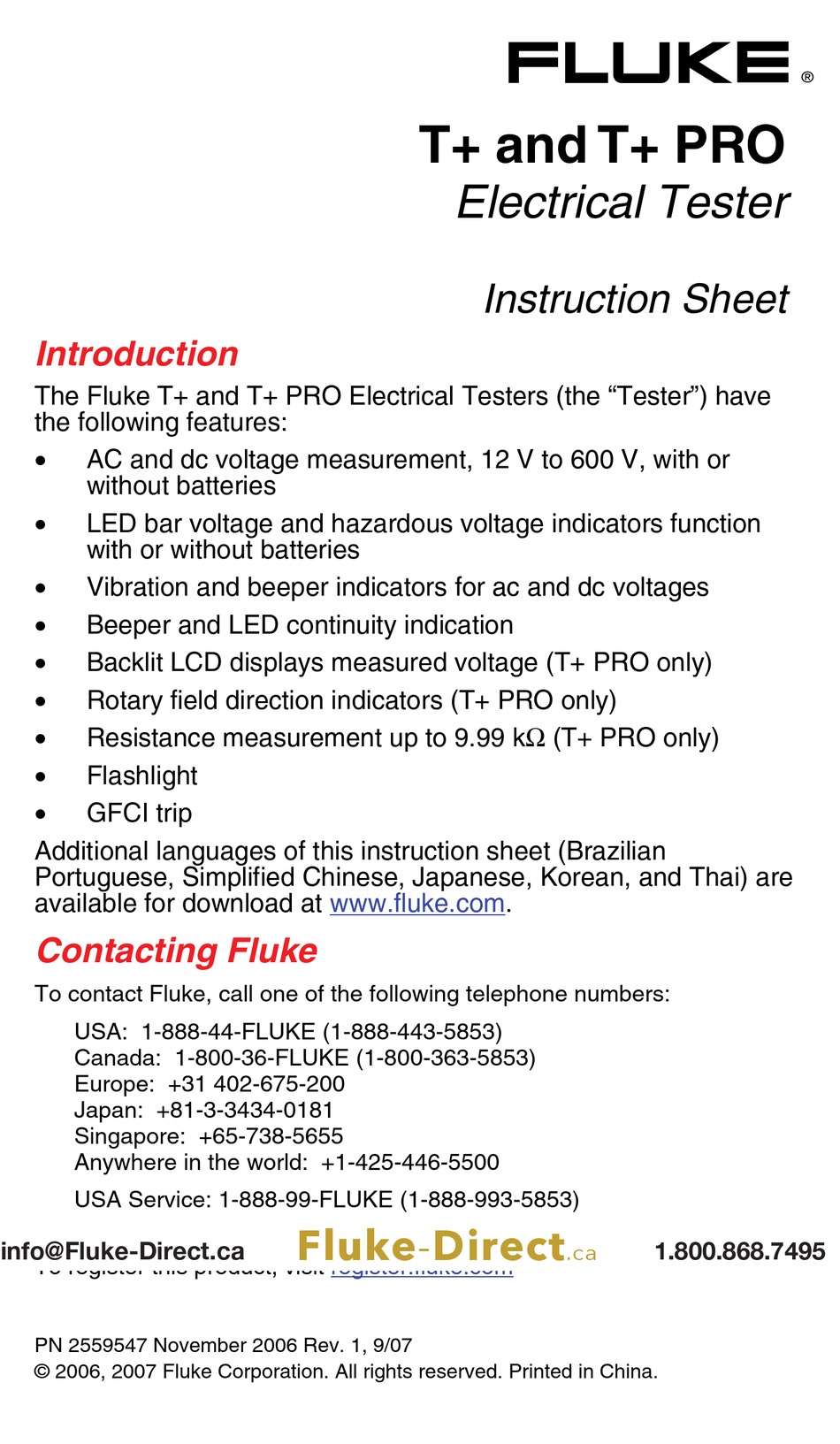

Introduction

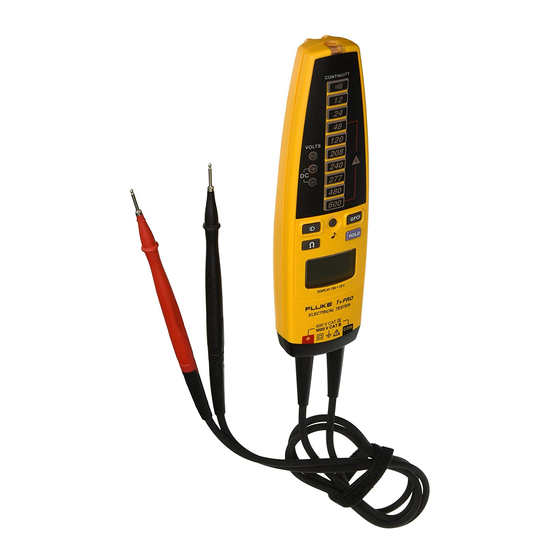

The Fluke T+ and T+ PRO Electrical Testers (the "Tester") have
the following features:
•
AC and dc voltage measurement, 12 V to 600 V, with or
without batteries
•
LED bar voltage and hazardous voltage indicators function
with or without batteries
•
Vibration and beeper indicators for ac and dc voltages
•
Beeper and LED continuity indication
•
Backlit LCD displays measured voltage (T+ PRO only)
•
Rotary field direction indicators (T+ PRO only)
•
Resistance measurement up to 9.99 kΩ (T+ PRO only)
•
Flashlight
•
GFCI trip
Additional languages of this instruction sheet (Brazilian
Portuguese, Simplified Chinese, Japanese, Korean, and Thai) are
available for download at www.fluke.com.
Contacting Fluke
To contact Fluke, call one of the following telephone numbers:
USA: 1-888-44-FLUKE (1-888-443-5853)
Canada: 1-800-36-FLUKE (1-800-363-5853)
Europe: +31 402-675-200
Japan: +81-3-3434-0181
Singapore: +65-738-5655
Anywhere in the world: +1-425-446-5500
USA Service: 1-888-99-FLUKE (1-888-993-5853)
Or, visit Fluke's Web site at www.fluke.com.
info@Fluke-Direct.ca
To register this product, visit
PN 2559547 November 2006 Rev. 1, 9/07
© 2006, 2007 Fluke Corporation. All rights reserved. Printed in China.
T+ and T+ PRO
Fluke-Direct
register.fluke.com
Electrical Tester
Instruction Sheet
.ca
®
1.800.868.7495

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fluke T+

Summary of Contents for Fluke T+

  • Page 1 ® T+ and T+ PRO Electrical Tester Instruction Sheet Introduction The Fluke T+ and T+ PRO Electrical Testers (the “Tester”) have the following features: • AC and dc voltage measurement, 12 V to 600 V, with or without batteries •...

  • Page 2: Safety Information

    • Comply with local and national safety requirements when working in hazardous locations. • Use proper protective equipment, as required by Fluke-Direct local or national authorities when working in info@Fluke-Direct.ca 1.800.868.7495 hazardous areas. • Use caution when working above 30 V ac rms, 42 V peak, or 60 V dc.
  • Page 3 All appliances or equipment on the circuit being tested should be unplugged to help avoid erroneous readings. WCaution Although the Tester may be used with depleted batteries, replace depleted batteries immediately to avoid Tester damage from battery acid leakage. Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...
  • Page 4 Canadian Standards Laboratories Association Certification Do not dispose of this product as unsorted municipal waste. Conforms to relevant Contact Fluke or a Australian standards N10140 qualified recycler for disposal. CAT III equipment is designed to protect CAT IV equipment is...

  • Page 5: Optional Accessories

    Press to turn the flashlight on, release to turn it off. The flashlight will turn off 5 seconds after release of the pushbutton. Batteries are required for this feature. Toggles the ohms function on or off. T+PRO only. See “Measuring Resistance (T+ PRO Only)”. Batteries are required for this feature.
  • Page 6 Indicates phase rotation for a right or left-hand turning field from one phase to the next in a three-phase system Measurement units Numeric display AC or dc volts Continuity test function is selected Figure 1. Display Indicators Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...

  • Page 7: Automatic Operation

    HOLD function is activated, this switches off after 1 minute if a voltage is not detected. HOLD Press H to freeze the display reading. Press again to release HOLD. HOLD does not interfere with the voltage LED function. Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...

  • Page 8: Self Test

    WCaution Although the Tester may be used with depleted batteries, replace depleted batteries immediately to avoid Tester damage from battery acid leakage. Fluke-Direct To perform the self test, short the two probes. The self test lights info@Fluke-Direct.ca 1.800.868.7495 all LEDs, and all LCD segments (T+ PRO). The beeper sounds (unless disabled) and the Tester switches to continuity mode.

  • Page 9: Measuring Voltage

    To measure voltage, connect the probes to the circuit under test. The voltage is indicated by the voltage LED stack and beeper (if enabled). The T+PRO will show the measurement on the LCD for voltages > 10 V; < 10 V the LCD remains blank. The AC, DC+ and DC- LEDs will only operate for voltages greater than 24 V.

  • Page 10: Testing For Continuity

    20 kΩ) is indicated by the beeper and a lighted P. If the beeper is disabled, it will not sound during this test. The T+PRO shows F on the LCD. If the resistance is greater than 20 kΩ, the beeper will not sound and P will not light.
  • Page 11 To measure resistance, turn off the circuit power, press O, and place the test probes across the resistance under test. For resistances less than 9.99 kΩ, the T+PRO display shows the resistance value. For greater resistances, the display shows OL.
  • Page 12 The GFCI is fully functional but a wiring problem exists within the installation or receptacle. • The GFCI is faulty and the installation wiring is correct. Consult an electrician to check the wiring and GFCI. Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495 Note •...
  • Page 13 Tester and grip the main body with one hand. Attach both probes to the test points. If the red lead is 120 degrees ahead of the black lead, K is displayed. If the red Fluke-Direct lead lags the black lead by 120 degrees, J is displayed. In info@Fluke-Direct.ca 1.800.868.7495...
  • Page 14 Note You can verify the rotary field direction by reversing the two probes and watching for an indication of a change in the field direction. CONTINUITY eqc05f.emf Figure 5. Rotary Field Measurement Fluke-Direct info@Fluke-Direct.ca 1.800.868.7495...

  • Page 15: Maintenance

    1000 V CAT III/600 V CAT IV; Pollution Degree II AC Bandwidth: 45 Hz to 66 Hz Maximum Input Voltage Between Terminal and Fluke-Direct Earth Ground: Maximum working voltage 1000 V ac or dc. info@Fluke-Direct.ca 1.800.868.7495 Maximum measurable voltage 600 V ac or dc. This will be displayed on the LED and the LCD (T+ PRO).
  • Page 16 9.9 oz LIMITED WARRANTY & LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for two years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
