Introduction

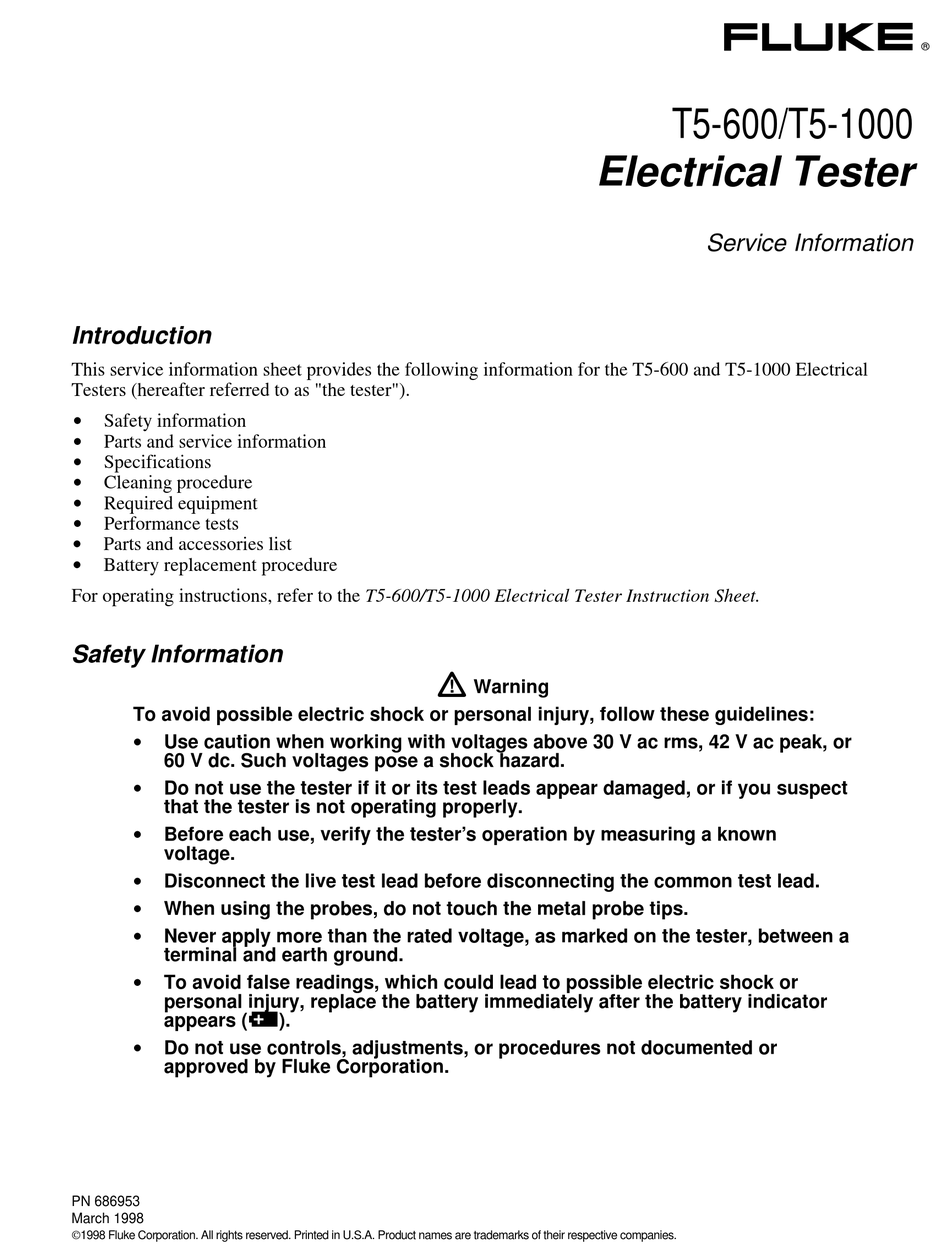

This service information sheet provides the following information for the T5-600 and T5-1000 Electrical
Testers (hereafter referred to as "the tester").
•

Safety information

•
Parts and service information
•
Specifications
•
Cleaning procedure
•
Required equipment
•
Performance tests
•
Parts and accessories list
•
Battery replacement procedure
For operating instructions, refer to the T5-600/T5-1000 Electrical Tester Instruction Sheet.
Safety Information
To avoid possible electric shock or personal injury, follow these guidelines:
•
Use caution when working with voltages above 30 V ac rms, 42 V ac peak, or
60 V dc. Such voltages pose a shock hazard.
•
Do not use the tester if it or its test leads appear damaged, or if you suspect
that the tester is not operating properly.
•
Before each use, verify the tester's operation by measuring a known
voltage.
•
Disconnect the live test lead before disconnecting the common test lead.
•
When using the probes, do not touch the metal probe tips.
•
Never apply more than the rated voltage, as marked on the tester, between a
terminal and earth ground.
•
To avoid false readings, which could lead to possible electric shock or
personal injury, replace the battery immediately after the battery indicator
appears (M).
•
Do not use controls, adjustments, or procedures not documented or
approved by Fluke Corporation.
PN 686953
March 1998
©1998 Fluke Corporation. All rights reserved. Printed in U.S.A. Product names are trademarks of their respective companies.
Electrical Tester
Warning
T5-600/T5-1000

Service Information

®
