Installation Guide
IP-DECT Base Station & IP-DECT Gateway
Power Distribution
The DB1 can be powered using the following methods:
• From the IPBL via the Express Powering Pair (EPP) and data pairs
• With a local AC-adapter
NOTE: For more information about power distribution, see
page 25.
Software
The software in the DB1 can be updated by downloading new software without
disconnecting the equipment. The new software is stored in flash memory. For
information on how to update the software in the DB1, see the applicable Installation and
Operation Manual for the DB1.
Connectors
• Two 8-pin RJ45 modular jacks for data and powering
LEDs

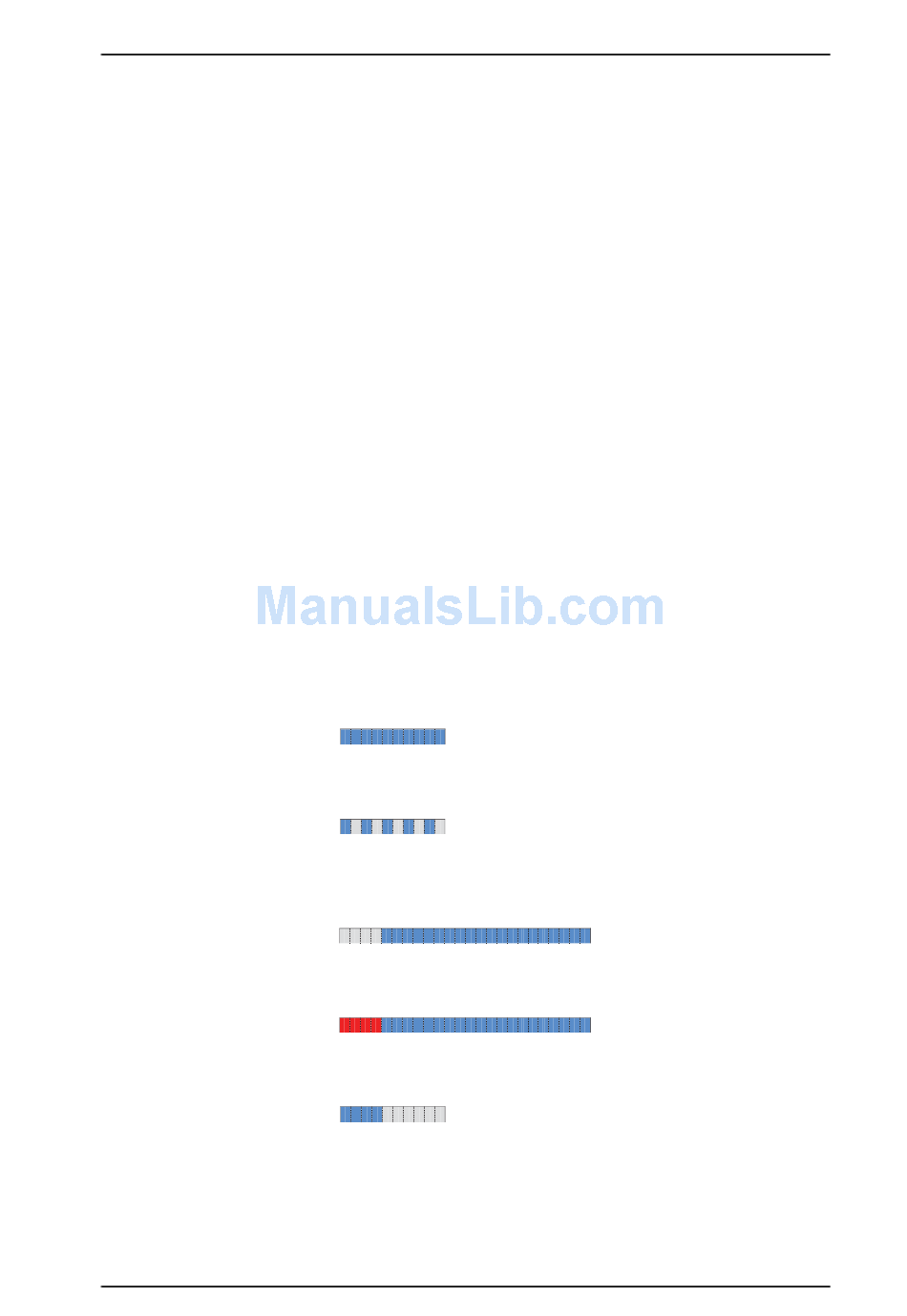

The DB1 has one RGB LED to indicate status. This section describes the different
indications and when they shall be used. In the illustrations below: Each blink pattern is
represented by a number of blocks where each block is 100 ms. Light grey blocks means
that the LED is off. Whenever the indication is changed the new pattern always starts from
the first block.
Idle/OK
Starting up
Active traffic
Fully occupied for
speech traffic
Software
download
15 October 2014 / Ver. B
Solid blue.
100 ms blue, 100 ms off.
400 ms off, 2000 ms blue.
400 ms red, 2000 ms blue.
400 ms blue, 600 ms off.
TD 92989EN
3.3 Power the Base Station
DB1 operational and no
traffic on the DB1.
The DB1 is in start-up phase,
i.e. waiting to be initialized
by the IPBL.
DB1 operational and traffic
on the DB1.
Fully occupied with traffic.
Download of firmware in
progress.
on
