Installation Guide
IP-DECT Base Station & IP-DECT Gateway
2.5
DB1
The following versions of the DB1 are available:
• DB1 with internal antenna
• DB1 with external antennas
The DB1 is backward compatible with the BS3x0 when it comes to coverage, functionality,
accessories and mounting bracket. If an old BS3x0 has to be replaced you just reuse the
mounting bracket and install the DB1.
2.5.1
DB1 with Internal Antenna

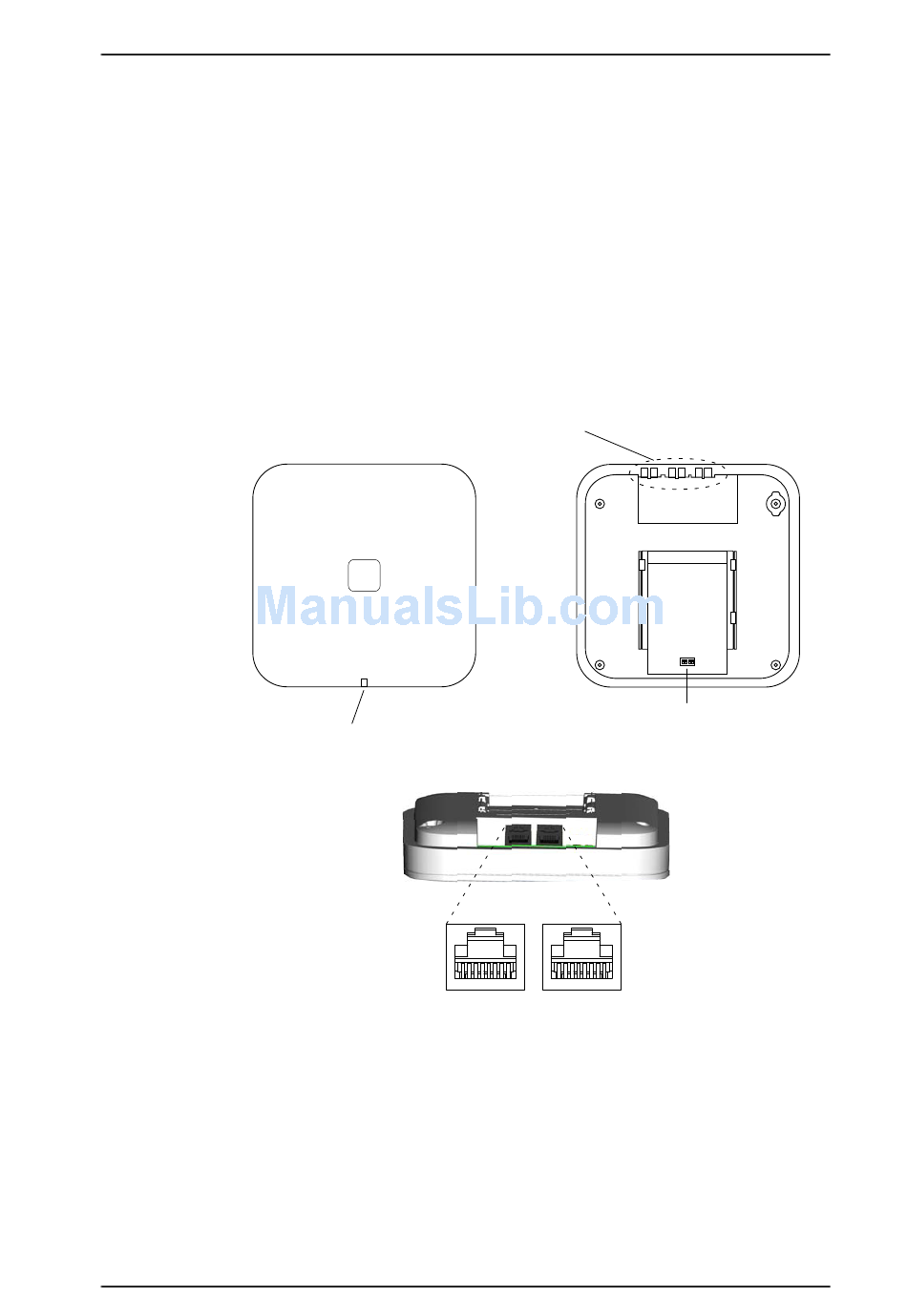

Figure 6. DB1 Overview
Contents of the Box
The box in which the DB1 is packed contains:
• A DB1 with integrated antennas
• A mounting bracket
• Two screws with wall plugs
15 October 2014 / Ver. B
Used for cable ties
to provide strain
relief for cables
Front view
LED
Back view while lying down
DECT
(RJ45)
Back view
N
O
4
3
2
1
DIP switch
Power Supply
(RJ45)
TD 92989EN
14
