Installation Guide
IP-DECT Base Station & IP-DECT Gateway

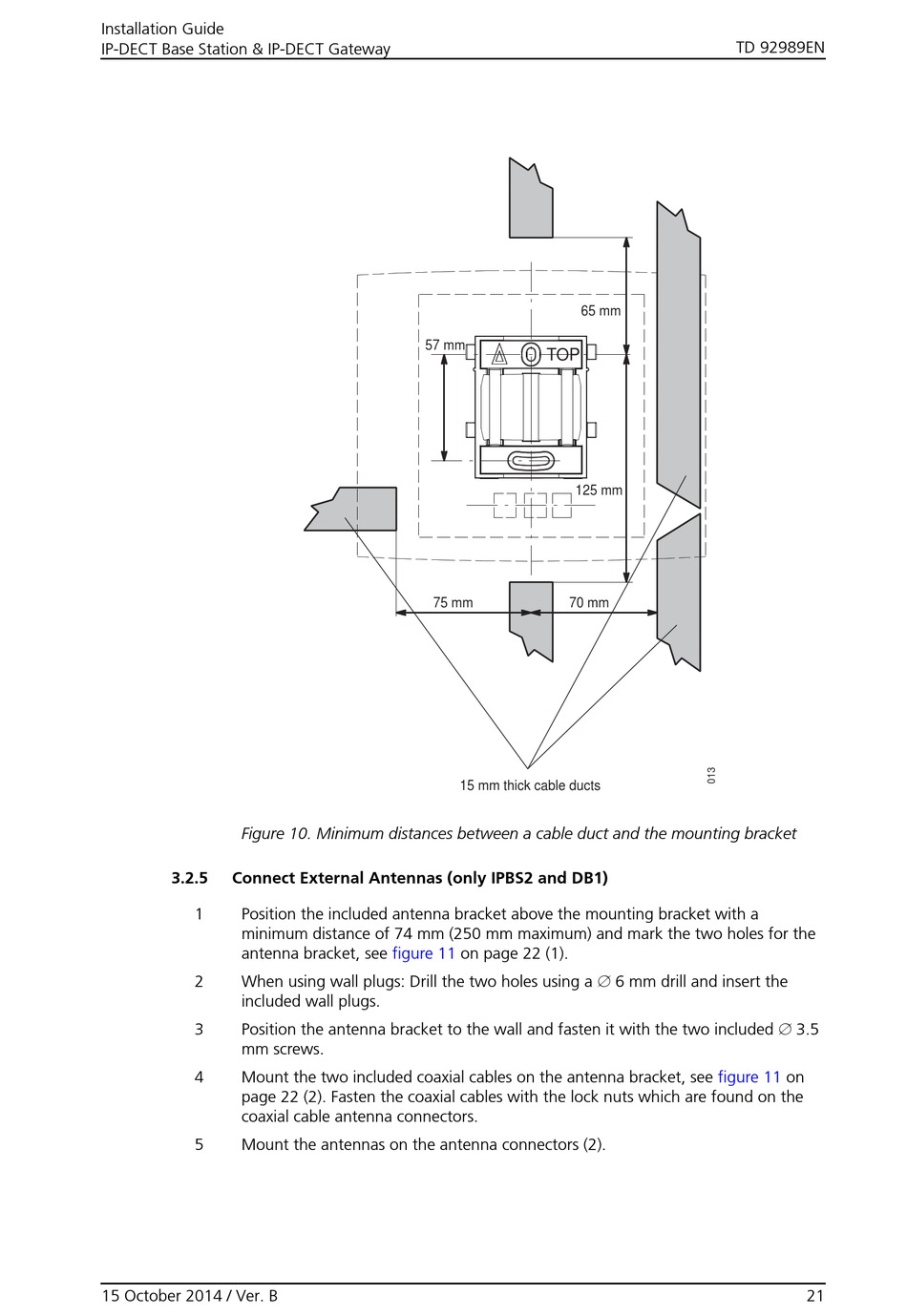

Figure 10. Minimum distances between a cable duct and the mounting bracket
3.2.5
Connect External Antennas (only IPBS2 and DB1)
1
Position the included antenna bracket above the mounting bracket with a
minimum distance of 74 mm (250 mm maximum) and mark the two holes for the
antenna bracket, see
When using wall plugs: Drill the two holes using a 6 mm drill and insert the
2
included wall plugs.
Position the antenna bracket to the wall and fasten it with the two included 3.5
3
mm screws.
4
Mount the two included coaxial cables on the antenna bracket, see
page 22 (2). Fasten the coaxial cables with the lock nuts which are found on the
coaxial cable antenna connectors.
5
Mount the antennas on the antenna connectors (2).
15 October 2014 / Ver. B
57 mm
TOP
75 mm
15 mm thick cable ducts
figure 11
on page 22 (1).
TD 92989EN
65 mm
125 mm
70 mm
figure 11
on
21
