Bs3X0 - ASCOM IP-DECT IPBS1 Installation Manual

Installation Guide
IP-DECT Base Station & IP-DECT Gateway
2.4

BS3x0

The following versions are available:
• BS330 with Internal antenna
• BS340 with External antennas
Front view

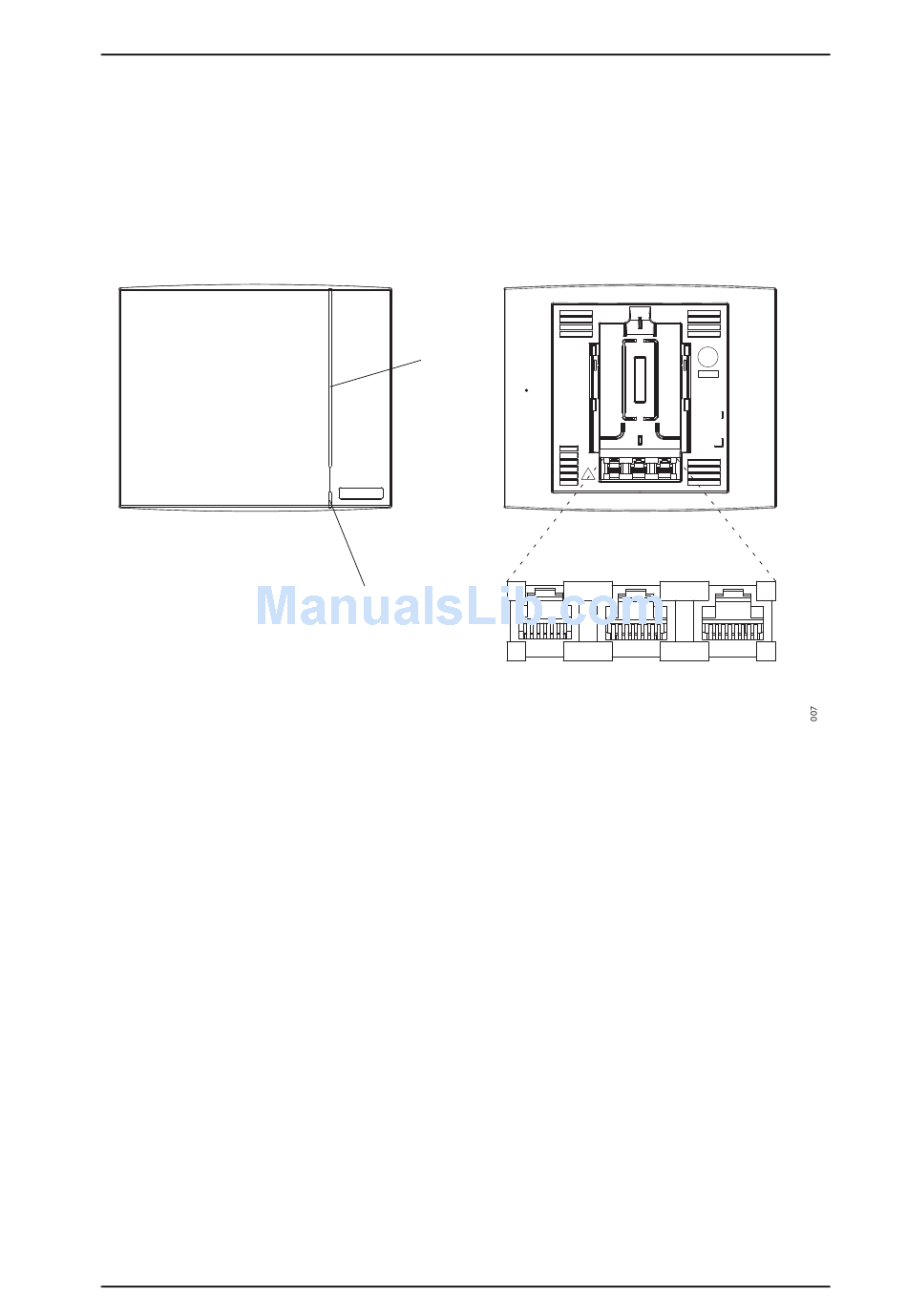

Figure 5. BS3x0 Overview
Contents of the Box
The box in which the base station is packed contains:
• A base station
• Two antennas (only base station with external antenna)
• A mounting bracket
• Two screws with wall plugs
Power Distribution
The base station can be powered using the following methods:
• From the IPBL via the Express Powering Pair (EPP) and data pairs
• With a local AC-adapter
NOTE: For more information about power distribution, see
page 25.
15 October 2014 / Ver. B
LED2
LED1
(RJ12)
Back view
Data/Power Data/Power
Test
(RJ45)
3.3 Power the Base Station
TD 92989EN
(RJ45)
on
12
