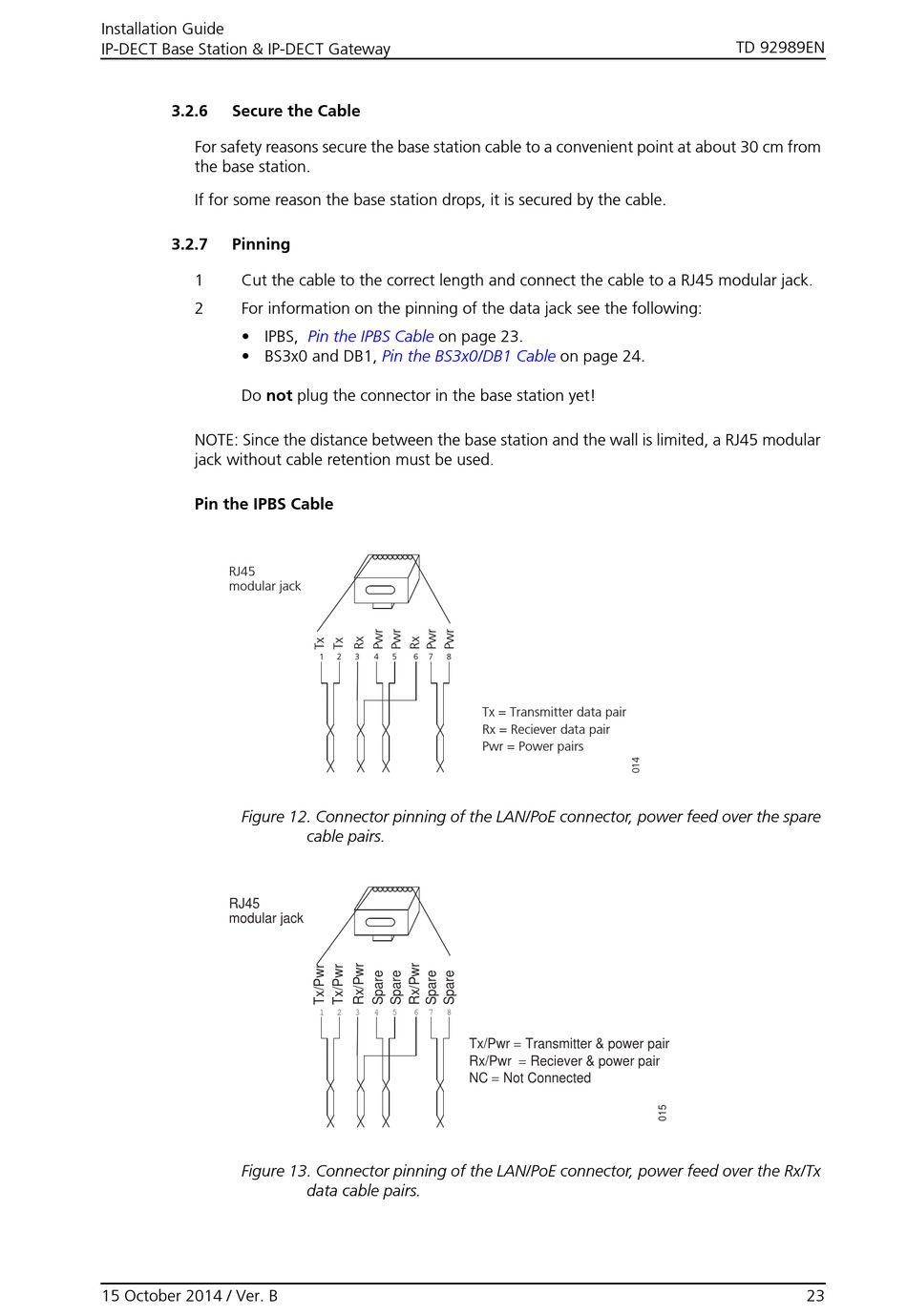

Installation Guide
IP-DECT Base Station & IP-DECT Gateway
3.2.6
Secure the Cable
For safety reasons secure the base station cable to a convenient point at about 30 cm from
the base station.
If for some reason the base station drops, it is secured by the cable.
3.2.7
Pinning
1
Cut the cable to the correct length and connect the cable to a RJ45 modular jack.
2
For information on the pinning of the data jack see the following:
• IPBS,
• BS3x0 and DB1,
Do not plug the connector in the base station yet!
NOTE: Since the distance between the base station and the wall is limited, a RJ45 modular
jack without cable retention must be used.
Pin the IPBS Cable
RJ45
modular jack
Figure 12. Connector pinning of the LAN/PoE connector, power feed over the spare
RJ45
modular jack
Figure 13. Connector pinning of the LAN/PoE connector, power feed over the Rx/Tx
15 October 2014 / Ver. B
Pin the IPBS Cable
on page 23.
Pin the BS3x0/DB1 Cable
1
2
3
4
5
6
7
8
cable pairs.
1
2
3
4
5
6
7
8
Tx/Pwr = Transmitter & power pair
Rx/Pwr = Reciever & power pair
NC = Not Connected
data cable pairs.
on page 24.
Tx = Transmitter data pair
Rx = Reciever data pair
Pwr = Power pairs
TD 92989EN
23
