Installation Guide
IP-DECT Base Station & IP-DECT Gateway
4

Installation of the IPBL

This section describes how to install the IPBL.
4.1

Install the IPBL

IMPORTANT:

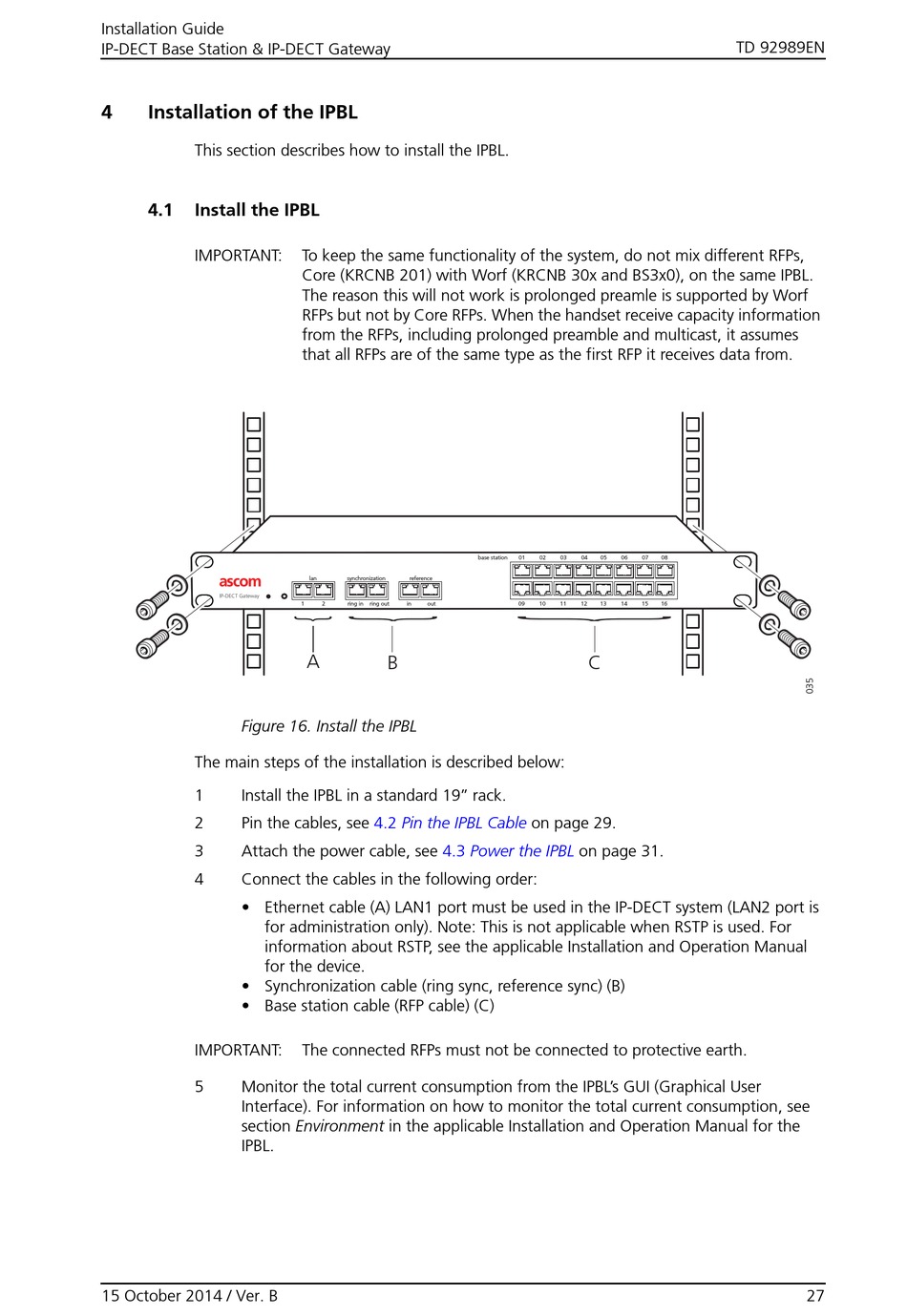

Figure 16. Install the IPBL
The main steps of the installation is described below:
1 Install the IPBL in a standard 19'' rack.
2 Pin the cables, see
3 Attach the power cable, see
4 Connect the cables in the following order:
• Ethernet cable (A) LAN1 port must be used in the IP-DECT system (LAN2 port is
for administration only). Note: This is not applicable when RSTP is used. For
information about RSTP, see the applicable Installation and Operation Manual
for the device.
• Synchronization cable (ring sync, reference sync) (B)
• Base station cable (RFP cable) (C)
IMPORTANT:
5 Monitor the total current consumption from the IPBL's GUI (Graphical User
Interface). For information on how to monitor the total current consumption, see
section Environment in the applicable Installation and Operation Manual for the
IPBL.

15 October 2014 / Ver. B
To keep the same functionality of the system, do not mix different RFPs,
Core (KRCNB 201) with Worf (KRCNB 30x and BS3x0), on the same IPBL.
The reason this will not work is prolonged preamle is supported by Worf
RFPs but not by Core RFPs. When the handset receive capacity information
from the RFPs, including prolonged preamble and multicast, it assumes
that all RFPs are of the same type as the first RFP it receives data from.
lan synchronization reference
1 2 ring in ring out in out
A
B
4.2 Pin the IPBL Cable
4.3 Power the IPBL
The connected RFPs must not be connected to protective earth.
base station 01 02 03 04 05 06 07
09 10 11 12 13 14 15
C
on page 29.
on page 31.
TD 92989EN
08
16
