ACE-B7400
Quick Manual
0
ACE-B7400 Quick Manual

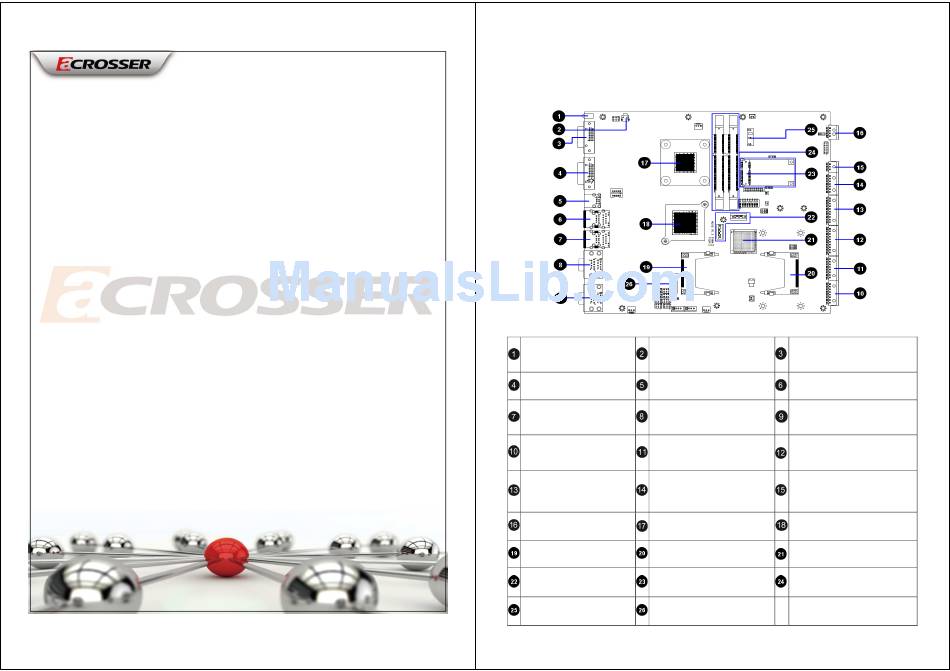

1. I/O Connector and Key parts illustration (Top Side)
LED1
Green LED: Power On.
Orange LED: HDD Active.
DVI-I1
DVI-I Connector.
CN26
RJ45 & USB 2.0 Connector
CN7
Gaming Input Isolation
Connector.
CN4
Gaming Open-Drain Output
Connector.
CN1
System Power Input Connector.
CF1
CF Card Slot 1.
SATA1/SATA2
SATA 3.0 Connectors.
CASESW1
Micro-switch for Chassis
Open/Close Detection.
P/N：220010423-G
PWR_BTN1
DVI-D1
System Power Button
DVI-D Connector.
USB1
CN25
USB 2.0 Connector
RJ45 & USB 2.0 Connector
COM1_2
COM3_4
RS-232 Connector
RS-232 Connector
(9-bits Protocol supported).
CN5
CN6
Gaming Open-Drain Output
Gaming Input Isolation Connector.
Connector.
CN3
CN2
TTL, RS232, RS485, cctalk
2.1 Channel Audio Amplifier Output
selectable connector
Connector.
(UART RX,TX signal only).
U44
U43
AMD Hudson-E1 Fusion
AMD FT1 APU. (T48N/T52R)
Controller Hub.
CF2
U40
CF Card Slot 2.
Acrosser Gaming Core (AGC).
CN_DIMM1/CN_DIMM2
MINI-PCIE1
DDR3 SODIMM Socket.
Mini-PCIe Slot.
Maximum total 8GB.
BAT_BH1
CR2032 Battery Holder
for system RTC.
1
P/N：220010423-G
