AR-B104D Quick Manual V1.01

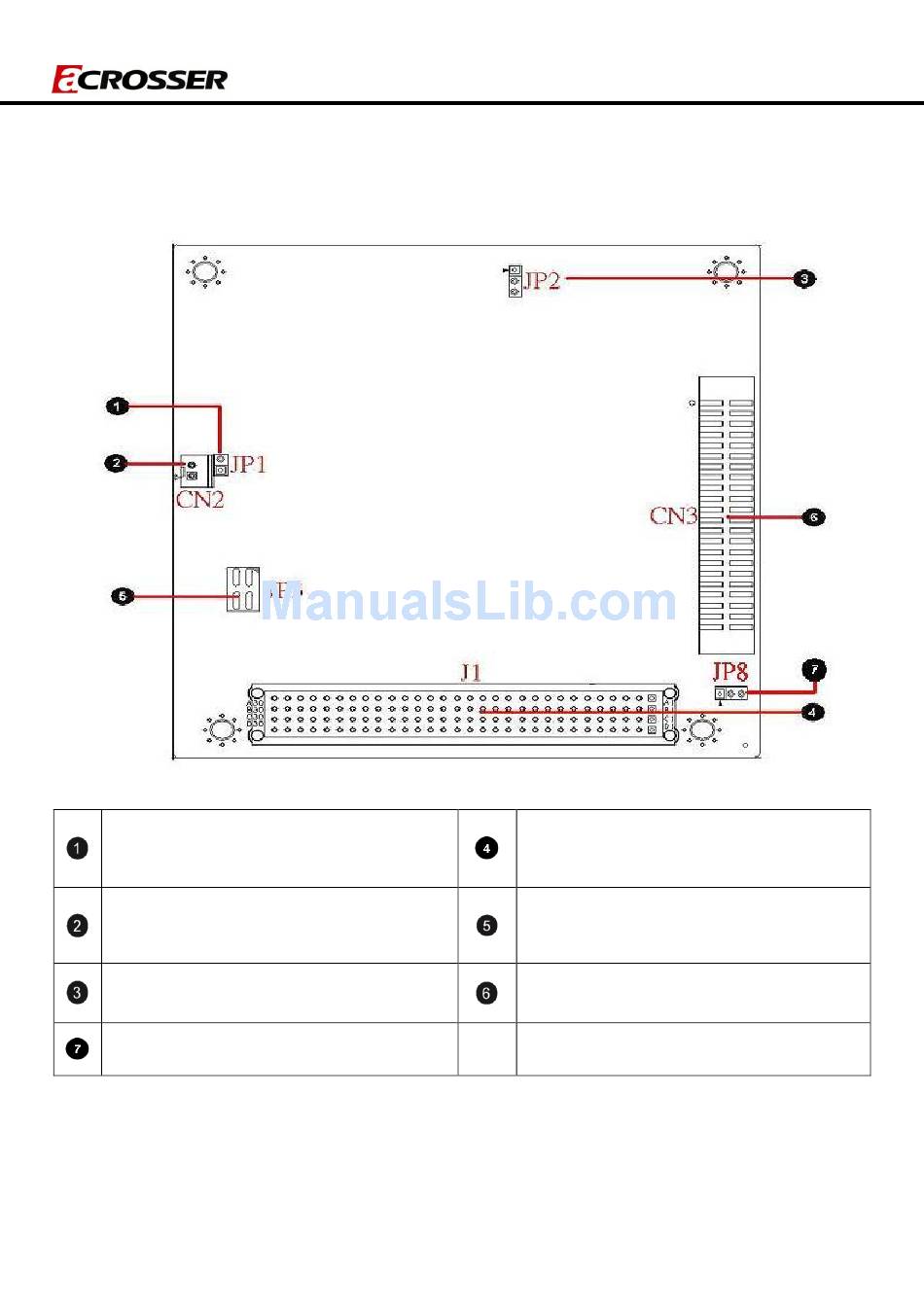

1. Mainboard illustration (Top Side)
JP1
CAN Bus terminal resister select pin
header.
CN2
CAN Bus connector
JP2
Clear SRAM pin header.
JP8
SRAM mode select.
AR-B104D Quick Manual
J1
PCI BUS connector (PC-104 Plus)
JP3
Operation mode selection.
CN3
GPIO connector.
1
P/N：220010396-G
Advertisement
Related Manuals for Acrosser Technology AR-B104D
Summary of Contents for Acrosser Technology AR-B104D
- Page 1 AR-B104D Quick Manual AR-B104D Quick Manual V1.01 1. Mainboard illustration (Top Side) CAN Bus terminal resister select pin PCI BUS connector (PC-104 Plus) header. Operation mode selection. CAN Bus connector Clear SRAM pin header. GPIO connector. SRAM mode select. P/N：220010396-G...
-
Page 2: Connector And Jumper Setting Table
AR-B104D Quick Manual 2. Connector and Jumper Setting Table 1. JP1 2. CN2 3. JP2 Description Description Description close 120 ohm CAN High Normal resister. CAN Low Clear SRAM open None. 4. CN4 define define define define define define define... -
Page 3: Operation Mode Description
AR-B104D Quick Manual 5. JP3 Description 1-2,3-4 open Mode 3 1-2 open,3-4 short Mode 2 1-2 short,3-4 open Mode 1 1-2,3-4 short Mode 0 Note: The JP3 default setting is Mode0. Operation mode description PCICLK IDSEL INT 0 Mode 0... - Page 4 AR-B104D Quick Manual 6. CN3 DESCRIPTION DESCRIPTION GPI0 GPI1 GPI2 GPI3 GPI4 GPI5 GPI6 GPI7 GPI8 GPI9 GPI10 GPI11 GPO0 GPO1 GPO2 GPO3 GPO4 GPO5 GPO6 GPO7 GPO8 GPO9 GPO10 GPO11 7. JP8 Description Memory mode open Disk mode P/N：220010396-G...
- Page 5 AR-B104D Quick Manual 3. AR-B104D digital I/O, SRAM disk & CAN bus Module AR-B104D is a PCI-104 super I/O module which equipped with CAN bus, SRAM disk and digital I/Os on a single module. Features 1x 2KV isolated CAN bus. Support 2.0A and 2.0B protocol.
- Page 6 AR-B104D Quick Manual Digital Logic Logic High: 3V to 28V Logic Low: 0V to 1.5V Maximum input frequency 10KHz( duty = 50% ). Counter 1. All digital input support counter mode 2. 12 x independent 16-bit counters 3. Connect to all digital inputs 4.
- Page 7 AR-B104D Quick Manual 6. API library for user development 7. CAN bus device status query 8. Device driver for Windows 2000/XP/XPe and Linux Maximum card Maximum 2 cards can be stacked up in one system Software 1. Windows XP, XPe and Linux device driver and 2.
