ACE-B7400 Quick Manual

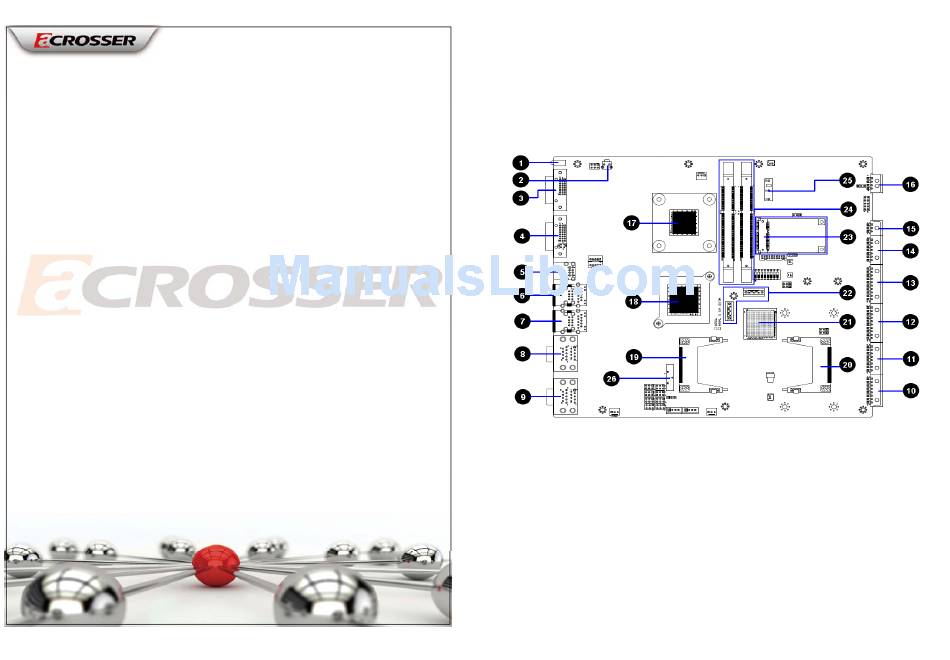

1. Mainboard illustration (Top Side)
 IO Conpoments and KEY Parts illustration:
ACE-B7400
Quick Manual
0
1
P/N：2200104-G
P/N：2200104-G
