AR-B6051 Quick Manual

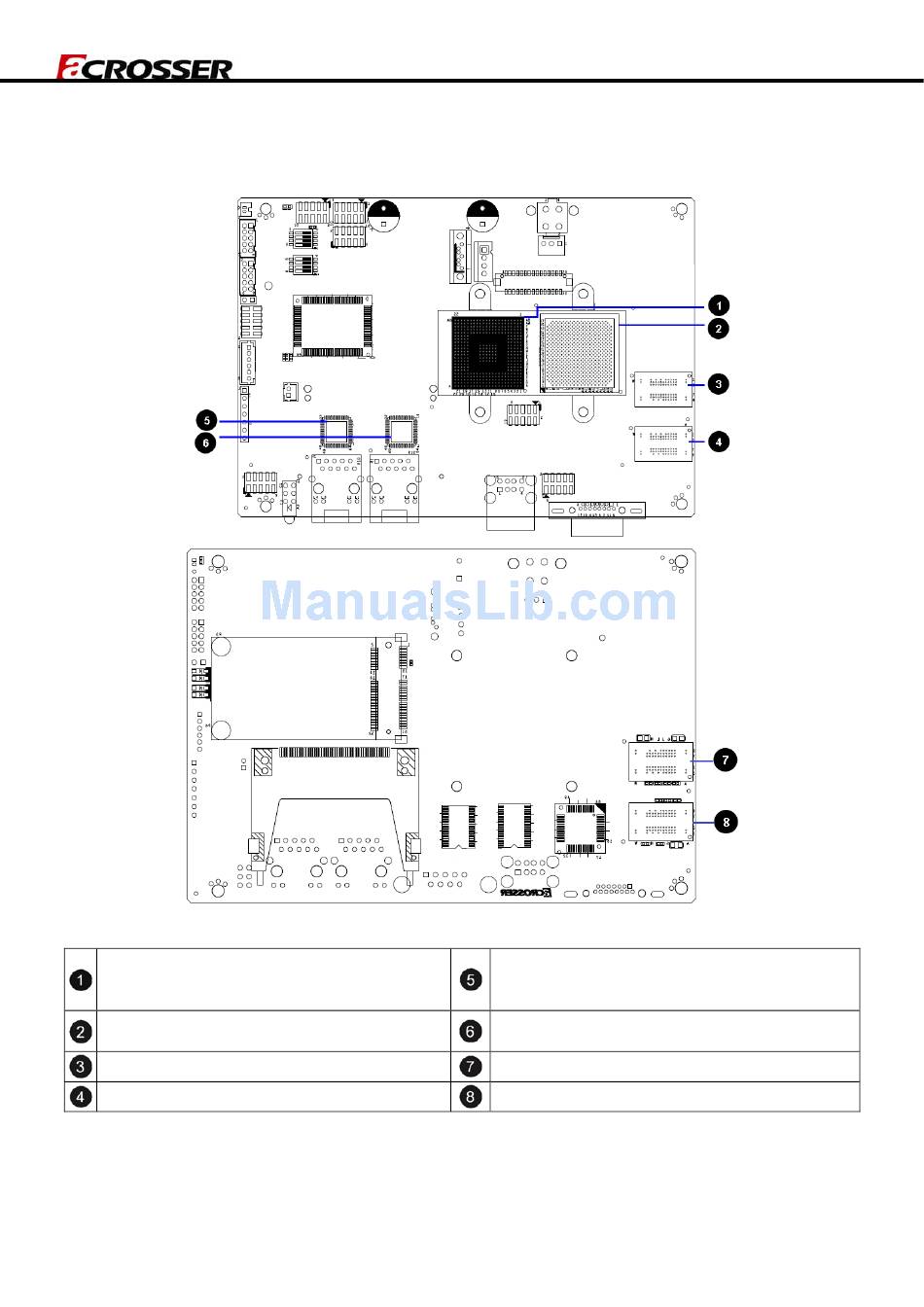

1. Mainboard illustration
CPU
Intel ATOM E640 is for AR-B6051E64
Intel ATOM E620 is for AR-B6051E62
Intel PCH E20G
DDR2-800 / DRAM3
DDR2-800 / DRAM1
AR-B6051 Quick Manual
LAN1
Intel WG82574L / GbE /PCIe
LAN2
Intel WG82574L / GbE /PCIe
DDR2-800 / DRAM4
DDR2-800 / DRAM2
1
220010428-G
Advertisement
Related Manuals for Acrosser Technology AR-B6051
Summary of Contents for Acrosser Technology AR-B6051
- Page 1 AR-B6051 Quick Manual AR-B6051 Quick Manual 1. Mainboard illustration LAN1 Intel ATOM E640 is for AR-B6051E64 Intel WG82574L / GbE /PCIe Intel ATOM E620 is for AR-B6051E62 LAN2 Intel PCH E20G Intel WG82574L / GbE /PCIe DDR2-800 / DRAM3 DDR2-800 / DRAM4...
-
Page 2: Locations Of Io Ports & Jumper Settings Definition
AR-B6051 Quick Manual 2. Locations of IO ports & Jumper settings definition TOP SIDE Bottom SIDE 220010428-G... - Page 3 AR-B6051 Quick Manual CN_BAT1 ATX12V1 LAN1 WAF-H_1X2P_1.25mm for RTC DC +12V Power in RJ45 GbE Connector Battery connector LED1 SYS_FAN1 For RS-485 Termination 120 ohm 3 in 1 LED for Power ,CF and SATA 3 pin FAN connector secretion. AUDIO1...
-
Page 4: Connectors And Jumper Settings
AR-B6051 Quick Manual 2.1 Connectors and Jumper Settings 1. ATX12V1 2.SYSFAN1 SIGNAL SIGNAL +12V +12V +12V 3. SATA_PWR1 4. LVDS1 30 pin DF13 connector Symbol Description VLED VLED Power Ground VLED_EN LED Enable VPWM_EN System PWM Ground RxIn3+ LVDS receiver signal channel 3... - Page 5 AR-B6051 Quick Manual 7. VGA1 (D-SUB 15 pin Connector) 8. USB1 Upper: Port #4. D-SUB 15 pin For CRT Monitor Lower: Port #3. 9. COM1: Pin header for RS-232 10 & 11. LAN1 , LAN2 SIGNAL RJ45 Ethernet Connector SOUT 12.
- Page 6 AR-B6051 Quick Manual 14. PIC1: PIC Programming Connector 15. CAN1: CAN Bus Connector Pin 1 ~ Pin 5: Reserve Pin 6 & Pin 7: - Short: AT Mode. - Open: ATX Mode latch Connect the None- CAN Bus (Controller Area Network)
- Page 7 AR-B6051 Quick Manual 20. COM2 (For RS-232 Function) 21. CN_BAT1 SIGNAL CAN Bus (Controller Area Network) SIGNAL SIGNAL BAT+ BAT- SOUT 22. SW1: RS-422 RX terminator resistor 23. SW2: RS-422/485 TX Terminator resistor selection selection Default: All OFF Default: All OFF 24.
- Page 8 AR-B6051 Quick Manual 26. LPC1 (LPC BUS Signal Header for Port-80 27. SATA1 (SATA device connector #1) Debug Tools) SIGNAL To connect SATA device: 33MHz Clock 1. Attach either end of the signal cable to LAD1 the SATA connector on motherboard.
