No-Salt Detector
(Chlorine Generator)
Connection (not used
on Magnum Valves)
Multi Single Tank
Lockout & Remote
Back
Regen/Start
Dry Contact Signal Input
Connection
Extension Cable
Figure 3 Remote Start/Multi-Tank Lockout Cable
Figure 4 Twin Sensor Cable
Figure 5 Twin Cable Extension
LCD Display
Time & Day
Regen Time & Day
Salt
Capacity
Hardness
Down Button
Set Button
Connection

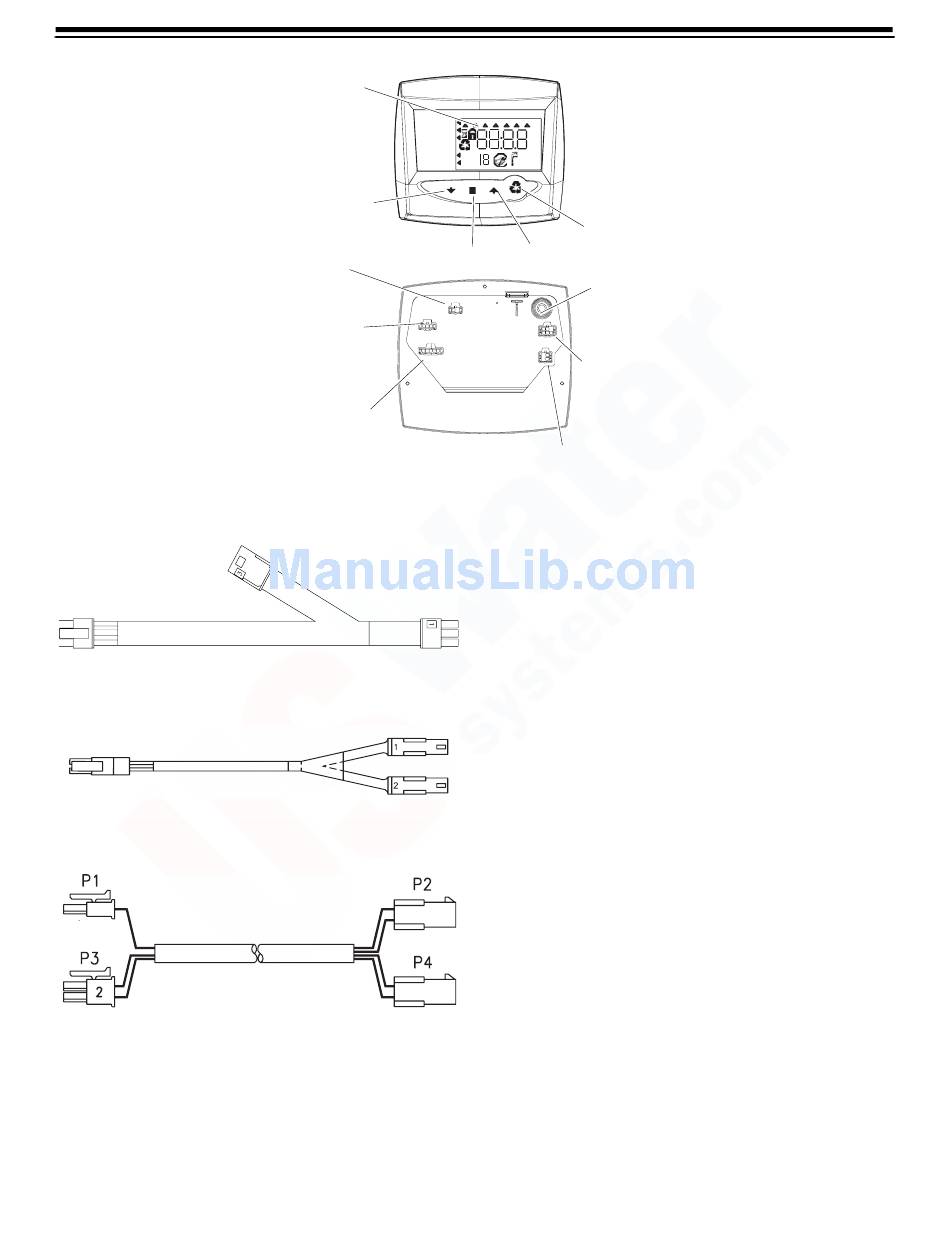

Figure 2 764 Controller Identification
SU MO TU WE TH FR SA
PM
MIN
g/L
x2
KG
C
P
x100
H
Lbs/ft³
Manual Regen Button
Up Button
AC Adapter
(low voltage)
Input
Main Motor &
Optical Sensor
Connection
Turbine Input
Location Selection
Location of a water conditioning system is important. The
following conditions are required:
•
Level platform or floor.
•
Room to access equipment for maintenance and
adding regenerant (salt) to tank.
•
Ambient temperatures over 34
o
o
120
F (49
C).
•
Water pressure below 100 psi (6.89 bar) and above 25
psi (1.7 bar).
•
In Canada the water pressure must be below 100 psi
(6.89 bar).
•
Constant electrical supply to operate the controller.
•
Total minimum pipe run to water heater of ten feet
(three meters) to prevent backup of hot water into
system.
•
Local drain for discharge as close as possible.
•
Water line connections with shutoff or bypass valves.
•
Must meet any local and state codes for site of
installation.
•
Valve is designed for minor plumbing misalignments.
Do not support weight of system on the plumbing.
•
Be sure all soldered pipes are fully cooled before
attaching plastic valve to the plumbing.
6
o
o
F (1
C) and below
