Magnum Flow Controls

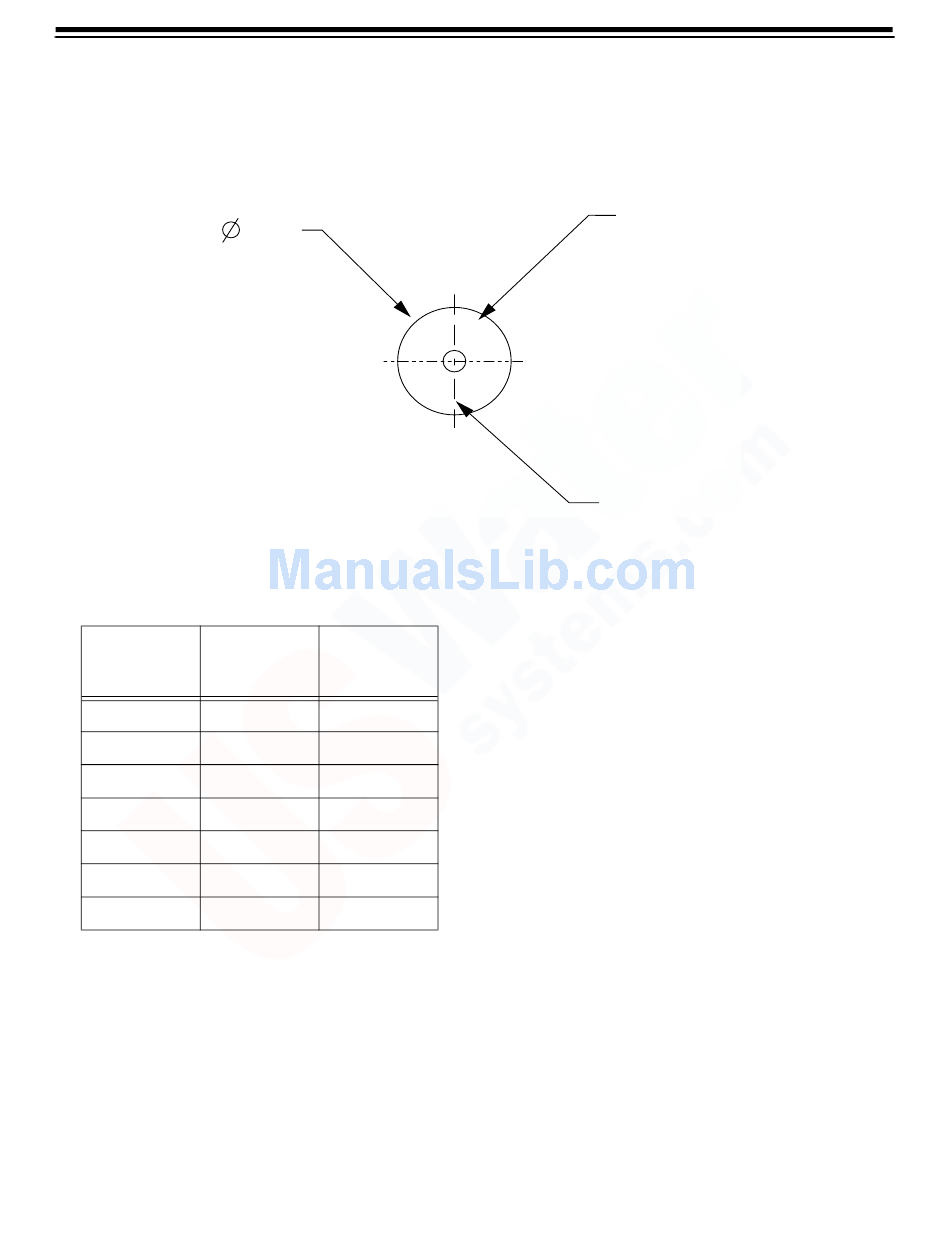

Refill Control Identification

Table 11 Magnum Refill Control Chart
(P/N Indicates 3-Pack)
Part Number Diameter
In. (cm)
1040679 14 (35.6)
1040680 16 (40.6)
1040681 18 (45.7)
1040682 21 (53.3)
1040683 24 (61.0)
1040684 30 (76.2)
1040685 36 (91.4)
NOTE: All flow rates are based on an inlet pressure of 60
psig (413 kPa). Actual rates vary with pressure,
temperatures and other system variables.
. 4 9 5
Tank
Flow Rate
GPM (LPM)
0.7 (2.65)
0.8 (3.03)
1.0 (3.79)
1.4 (5.30)
2.0 (7.57)
3.0 (11.36)
5.0 (18.93)
X X X
X X X
F l o w R a t e ( g p m )
49
C a v i t y N u m b e r
