Wiring Diagrams

Connecting the Logix 764 Twin Alternating or
Parallel Controls
The twin sensor and extension cables are used for twin
unit parallel and alternating applications. Four standard
connections are required for operation; the power AC
adapter, the flow sensor, motor/optical sensor, and the

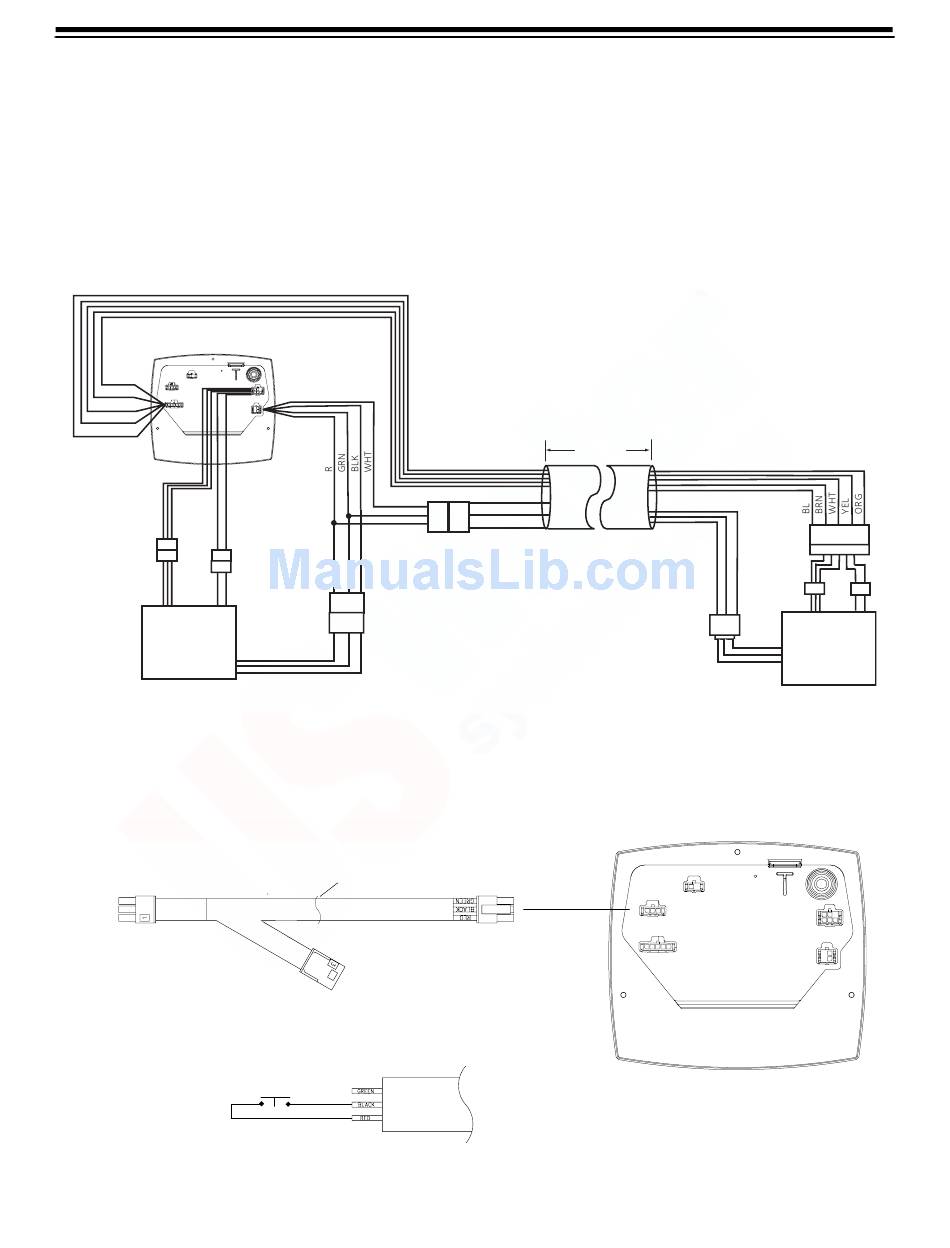

connection between tank 1 and tank 2 controls. Figure 31
outlines these standard features.
Logix 764 control
on Tank 1
BRN
ORG
WHT
YEL
BL
P1
Optical
Motor
Sensor
Flow Sensor
Tank 1

Remote Regeneration Start

Normally Open
Dry Contact Closure to
Start Regeneration
Note: Cable PN 3019464 sold separately.
BLK
GRN
2 P3
R
1
Figure 31
Cut Cable here
Strip back insulation
Figure 32
39
80 in.
(2017 mm)
P4
P2
Optical
Motor
Sensor
Flow Sensor
Tank 2
