Display Icons & Cursors
14
13
Regeneration Time
15
12
13
26
25

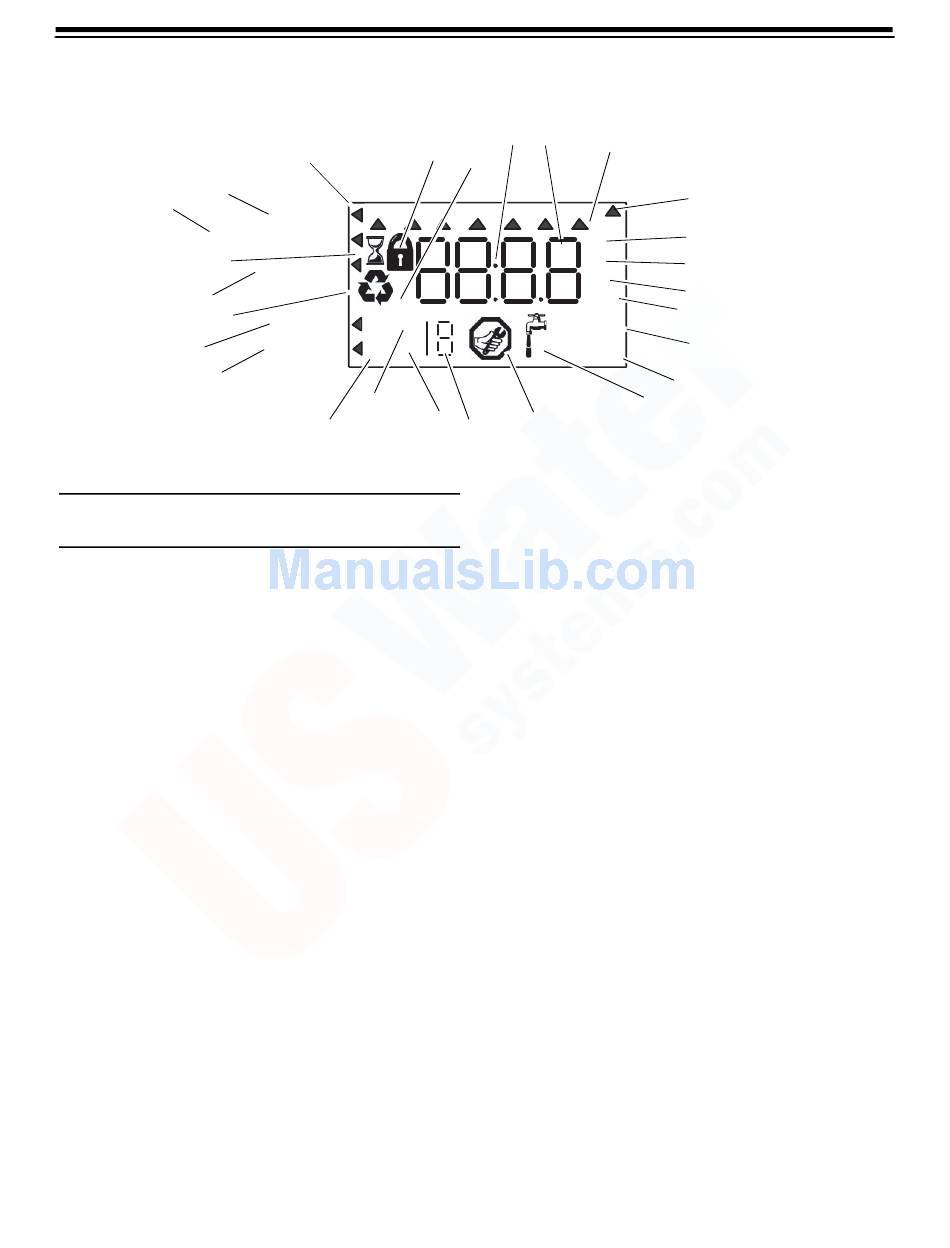

Note: In normal operation and during programming,
only a few of the icons are actually displayed.
1. This cursor is displayed when the days between
regeneration are being programmed (used with .5 to
99 day regeneration programming).
2. One of these cursors is displayed to indicate which
day will be programmed into the controller.
3. "PM" indicates that the time displayed is between
12:00 noon and 12:00 midnight (there is no AM
indicator). PM indicator is not used if clock mode is set
to 24-hour.
4. When "MIN" is displayed, the value entered is in
minute increments.
5. When g/L is displayed, the value for regenerant
amount entered is in grams/Liter.
6. When "Kg" is displayed, the value entered is in
kilograms or kilograins.
7. Four digits used to display the time or program value.
Also used for error codes.
8. Colon flashes as part of the time display. Indicates
normal operation (742 only).
9. Locked/unlocked indicator. In Level I programming
this is displayed when the current parameter is
locked-out. It is also used in Level II programming to
indicate if the displayed parameter is locked (icon
flashes) when controller is in Level I.
10. When "x2" is displayed, a second regeneration has
been called for.
9
16
SU MO TU
a
Time/Day
Salt Amount
x2
Capacity
P
C
a
H
Hardness
23
22
24
8
7
2
10
WE TH FR SA DAYS
PM
MIN
g/L
KG
x100
3
Lbs/ft
20
21
11. The recycle sign is displayed (flashing) when a
regeneration at the next time of regeneration has
been called for. Also displayed (continuous) when in
regeneration.
12. The display cursor is next to "SALT AMOUNT" when
programming the amount of regenerant. If the
controller is on a 3-cycle filter then backwash time is
programmed.
13. The display cursor is next to "REGENERATION TIME"
when programming the time of regeneration and the
days of regeneration.
14. The display cursor is next to "TIME/DAY" when
programming the current time and day.
15. The hourglass is displayed when the motor is running.
The camshaft should be turning.
16. These cursors appear next to the item that is
currently displayed.
17. X100 multiplier for large values.
3
18. When Lbs/ft is displayed the value for regenerant
amount entered is in pounds/cubic foot.
19. Faucet is displayed when the current flow rate is
displayed. Control may show the faucet and "0",
indicating no flow.
20. Maintenance interval display turns on if the months
in service exceed the value programmed in P11.
21. Used with #24, #25, and #26. Displays valve in
service, a sequence number or a value.
22. History Values (H). The number displayed by #23
identifies which history value is currently displayed.
24
1
3
4
5
a
If your Logix 764 controller was
6
purchased as a filter control, the
overlay will show: Time/Day,
17
Backwash Time, Backwash Length
and Capacity.
