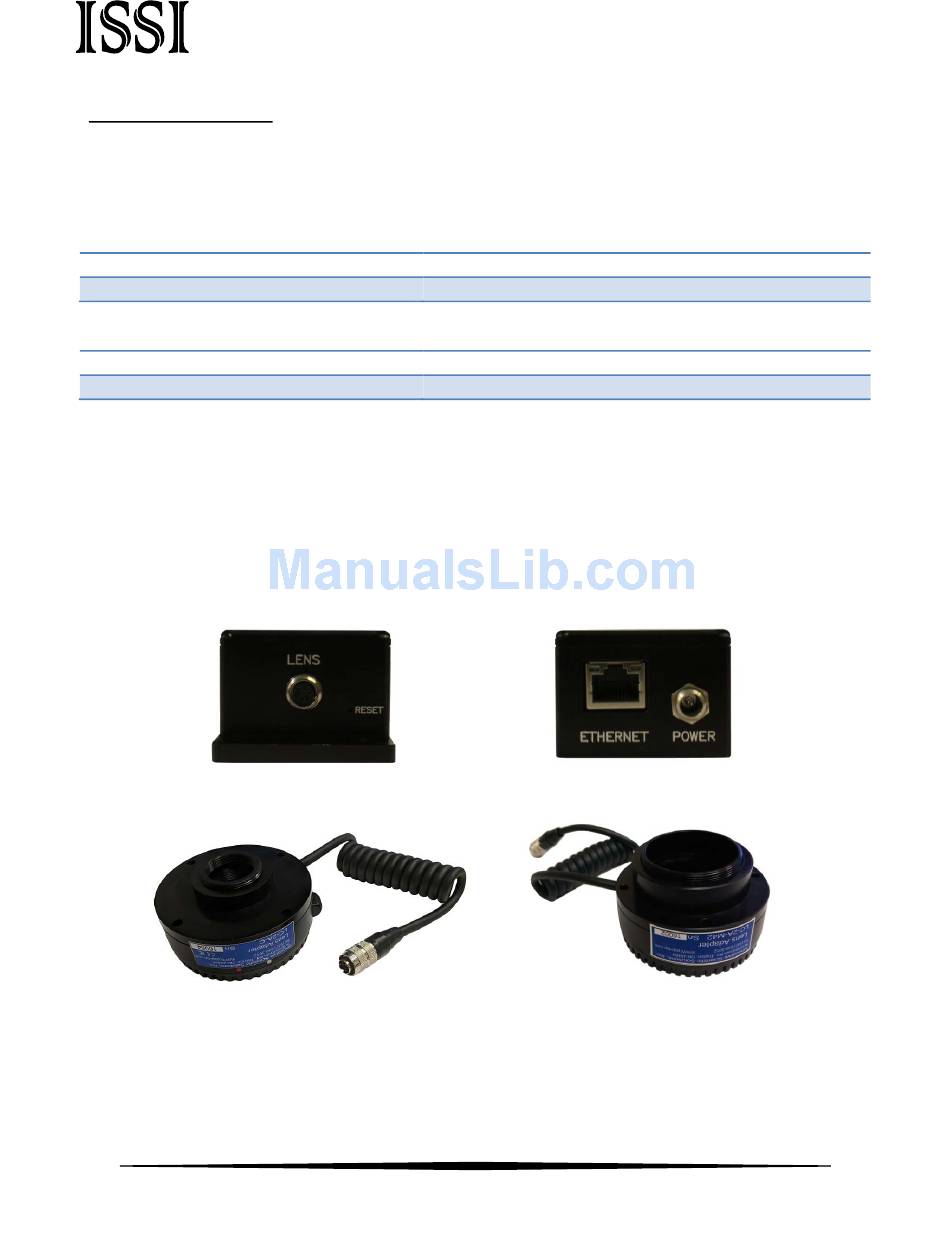

The Canon® lens control system consists of the control box (LC-2) and adapter (LC-2A-
C/M42/T). The adapter should be selected to match the desired camera body connection.
LC-2 Control Box Back Panel
Power
Ethernet
LC-2 Control Box Front Panel
Lens
Reset
On the front panel, the power and Ethernet communication connections are made.
The lens connection is located on the back panel. The side panel contains the reset switch for
the device. If the IP address is changed and forgotten, the reset switch will set the device
back to its default IP address of 192.168.2.252. Use a paper clip to reset the device, holding
for 3 seconds. Restart the software and the LC-2 will connect with its default IP address.
Lens Connection / Reset
LC-2A-C Lens Adapter
The lens adapters feature an EF lens mount on one side and the option of c- or M42x1-mount
on the other. The EF side connects to the lens and the c/M42 side connects to the camera
body.
Device is powered on
Ethernet communication connection
Connection for LC-2A-C/M42/T lens adapter
Reset switch
Ethernet / Power Connection
LC-2A-M42 Lens Adapter
3
