Innovative Scientific Solutions, Inc.
Installation and Operation
The LC-2 control box has a small slotted bracket to countersink M3 hex bolts for mounting. If
the camera being used with the LC-2 has no mounting holes to mount the LC-2 control box, a
bracket will need to be made to bolt the control box. It should be mounted within 6-inches
(150-mm) of the lens connection on the camera.

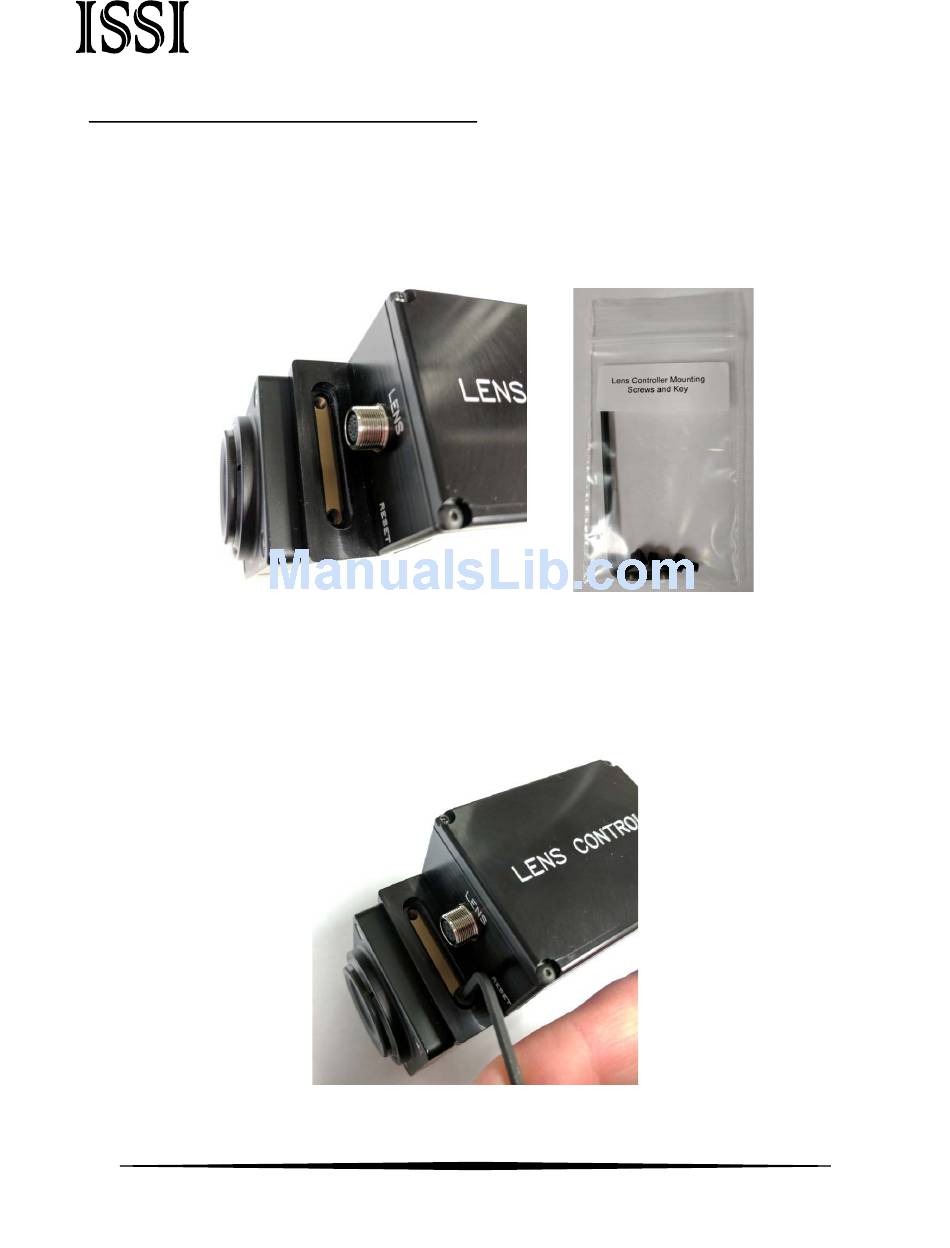

Line up the mounting bracket to the camera body mounting holes. If your camera has
different mounting holes, secure with customized bracket to fit the camera. Place the M3-0.5
hex bolt in place and tighten each using M3 hex wrench. Three M3-05 bolts are supplied with
the hardware kit.
5
