ISSI LC-2 Operation Manuals page 16

Innovative Scientific Solutions, Inc.

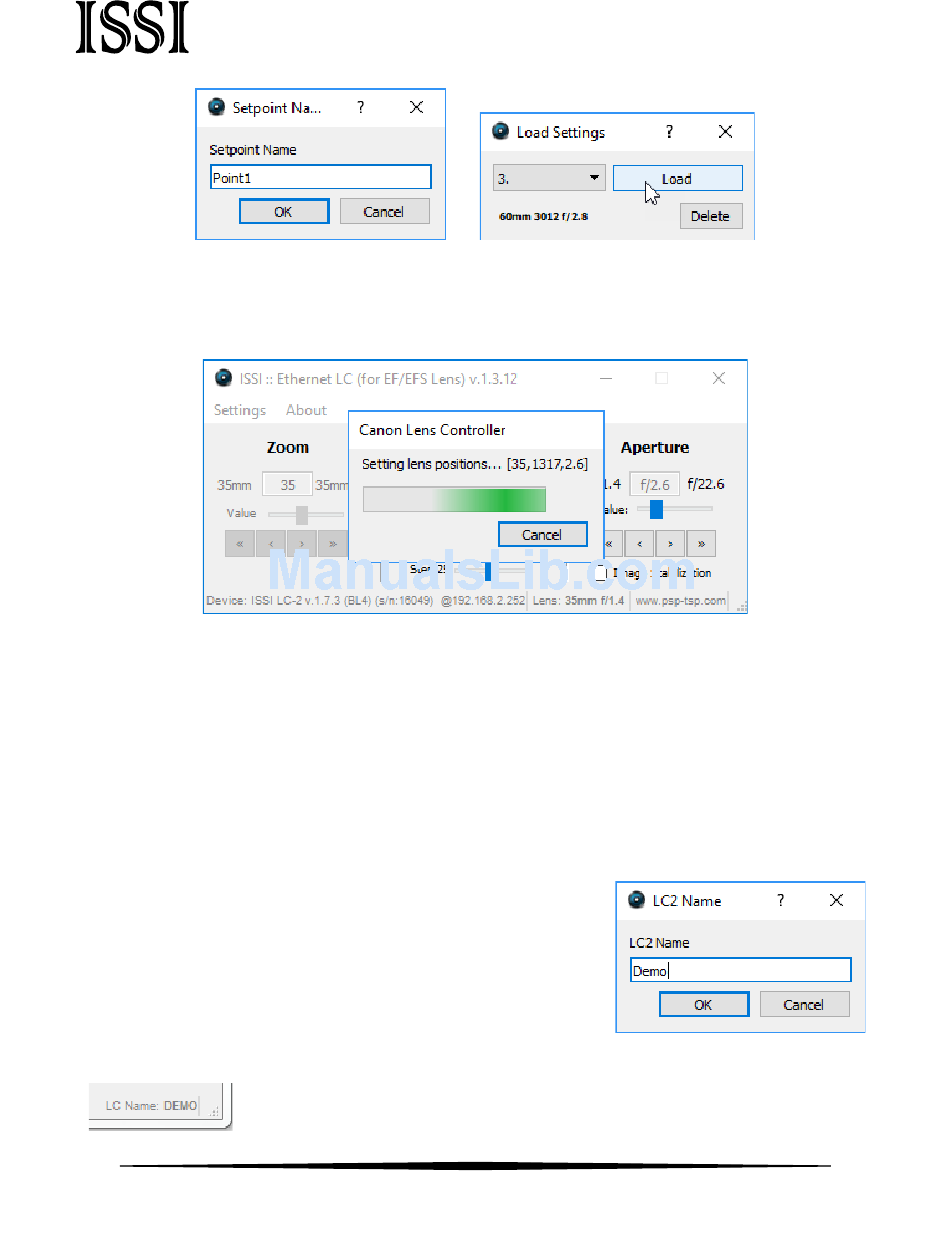

To recall those lens settings, select Load Settings and the lens will return each motor to those
positions. The lens focal length, position of the focus motor and F number will be displayed
for each saved set point.
When the position of the lens is being set, the above status window will show the progress.
Keyboard Commands
For faster access to preset positions, keyboard commands can be used to recall saved
positions. If a preset is saved with any single digit integer (0-9) it can be recalled by the
command Ctrl+0, 2......9. Individually recall these commands by holding Ctrl + the number
of the preset. To recall these presets, they must have the name of the single digit integer
being recalled. For example, if a preset is saved as 1, then pressing Ctrl+1 will recall that
preset.
Set Name will allow a device name to be entered for the
connected lens controller. If multiple lens controllers are
being used over the same network, this will aid in
distinguishing them.
This name will then be displayed in the bottom right corner of the user interface.
15
