Connections
Front Panel
Power
Ethernet
Back Panel
Lens
Side Panel
Reset

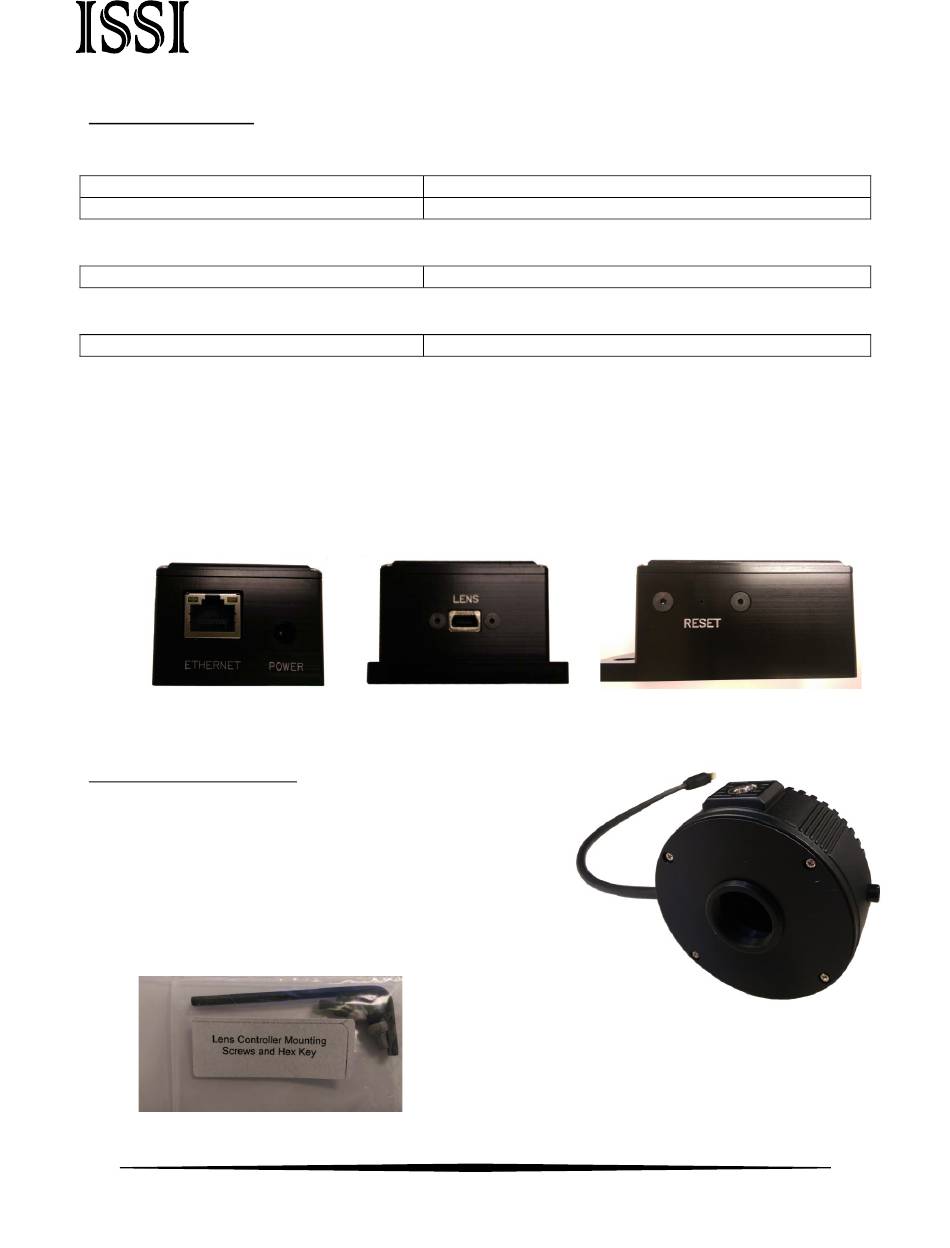

On the front panel, the power and Ethernet communication connections are made. The
lens connection is located on the back panel. The side panel contains the reset switch for the
device. If the IP address is changed and forgotten, the reset switch will set the device back to its
default IP address of 192.168.2.252. Use a paper clip to reset the device, holding for 2 seconds.
Restart the software and the LC-2 will connect with its default IP address.
Ethernet/ Power Connection
The LC-2 is shipped with:
1. Power connector
2. Ethernet cable
3. LC-2A lens adapter
4. LC-2 lens control box
5. M3 Toolkit for mounting
6. USB drive with software and instruction manual
M3 Toolkit
Device is powered on
Ethernet communication connection
Connection for LC-2A lens adapter
Reset switch
Lens Connection
3
Innovative Scientific Solutions, Inc.
Reset Switch
LC-2A Lens Adapter
