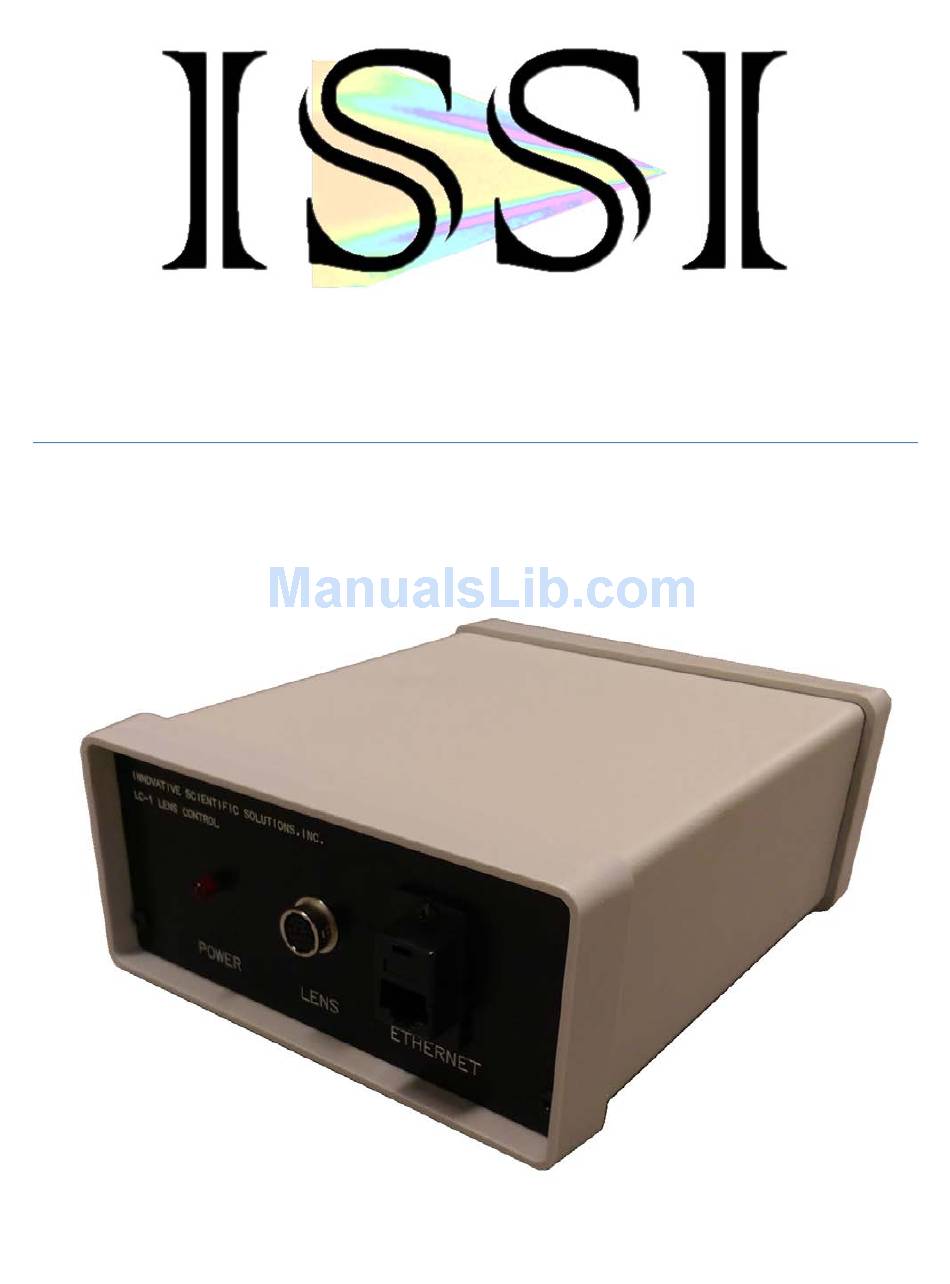

- Page 1 CCTV Lens Controller (LC-1) Operation Manual (Version 1.3)
-
Page 2: Table Of Contents
Software Operation ....................5 Multi Control ......................8 Connections ......................10 Wiring to Connector ....................12 Dimensions ......................13 Export Disclaimer ....................14 Appendix.........................15 For questions or comments, please contact ISSI Innovative Scientific Solutions, Incorporated 7610 McEwen Road Dayton, OH 45459 Ph: (937) 630-3012 Fax: (937) 630-3015 Email: issi-sales@innssi.com... -
Page 3: Features
The presets will save the position of the zoom, focus and iris. Since the LC-1 is an Ethernet device, it can be networked with other LC-1s or Ethernet devices. This makes communication and physical cable connections much simpler than traditional serial lens controllers and also allows them to be operated over a longer distance than serial devices. -
Page 4: Specifications
Reset Resets to default IP address, resets entire box 2A/125 VAC, 1A/250 VAC Device power connections The LC-1 is shipped with: 1. Power cord 2. Ethernet cable 3. Lens cable with Hirose connector for wiring to lens 4. Software and manual on flash drive... -
Page 5: Nic Network Setup
IP address. The host can be any value 1-254 but different from the host address of the LC-1. The subnet mask should be set to match that of the LC-1 which, by default is 255.255.255.0. The Default Gateway and all other fields can be left blank. -
Page 6: Software Operation
Innovative Scientific Solutions, Inc. Software Operation Open the software for the LC-1 from the desktop and it will ask for the IP of the connected LC- Enter the IP address of the LC-1 connected to the network. To communicate with multiple LC-1s over this network (through a network switch), open up another instance of the program on the desktop. - Page 7 If the toolbar is red, that means it is not a valid IP address. Type in the desired IP address and click Apply to implement. Always on Top makes the LC-1 software always appear as the front window for all windows open on the desktop.
- Page 8 Innovative Scientific Solutions, Inc. Save Settings and enter a name for those lens settings. Settings are saved to the computer in which the interface is open, not the lens controller itself. To recall those lens settings, select Load Settings and the lens will return each motor to those positions.
-
Page 9: Multi Control
To add LC-1s to the multi-control, click the Add IP button. This will open a window where the IP address of an LC-1 can be entered. As with the presets for single lens controllers, the settings saved in multi-mode are to the computer and not the lens controller itself. - Page 10 To recall a set point for all selected LC-1s in multi-mode, click the Load button. This will move each lens on each connected LC-1 to the positions saved from that set point (+/- 2 units). Set points are saved on each computer, not on each...
-
Page 11: Connections
Use a Cat5 or Cat6 Ethernet cable (provided) to connect to a PC network interface card or network switch. The LC-1 is set up for universal power. The lens is supplied with a Hirose connection to connect to the LC-1. This is a keyed connection and will only attach one way. - Page 12 The back panel contains the reset button. This reset button is used to reset the IP address to the default IP address if the IP address was changed and is forgotten. To reset the LC-1 to the default IP address, hold for 2 seconds and the IP address will be reset IP to 192.168.2.251.
-
Page 13: Wiring To Connector
**Disclaimer**: This is provided to show the specifications of the connector on the LC-1 and the capabilities of the LC-1 itself. It is not a guarantee of performance with every CCTV or zoom lens. Damage to the LC-1 due to improper wiring or connection to a lens is not covered by the product warranty. - Page 14 Innovative Scientific Solutions, Inc. Control Cable Pinout Color Blue Brown Black Shield Black Center Red Shield Red Center Orange Center White Shield White Center Yellow Gray Orange Shield...
-
Page 15: Dimensions
Innovative Scientific Solutions, Inc. Dimensions... -
Page 16: Export Disclaimer
Except as authorized by law or distributor agreement with ISSI, you agree and warrant not to export or re-export the information to any country, or to any person, entity, or end-user subject to U.S. -
Page 17: Appendix
Innovative Scientific Solutions, Inc. Appendix ISSI Lens Controller API Based on UDP protocol, 1337/UDP port is used for communication. Action: Get controller f/w version Command: “ver” (hex: 766572) Answer: “ISSI LC=2.3” Action: Change controller IP address to 192.168.1.2 Command: “ChangeIP=192.168.1.2”... - Page 18 Innovative Scientific Solutions, Inc. Answer: “Iris=Y”, where Y – current value of Iris motor Action: Set zoom motor value to X Command: “setZoom=X” Answer: “zoomDone”, it may take for a while to position the motors. Action: Set focus motor value to X Command: “setFocus=X”...
