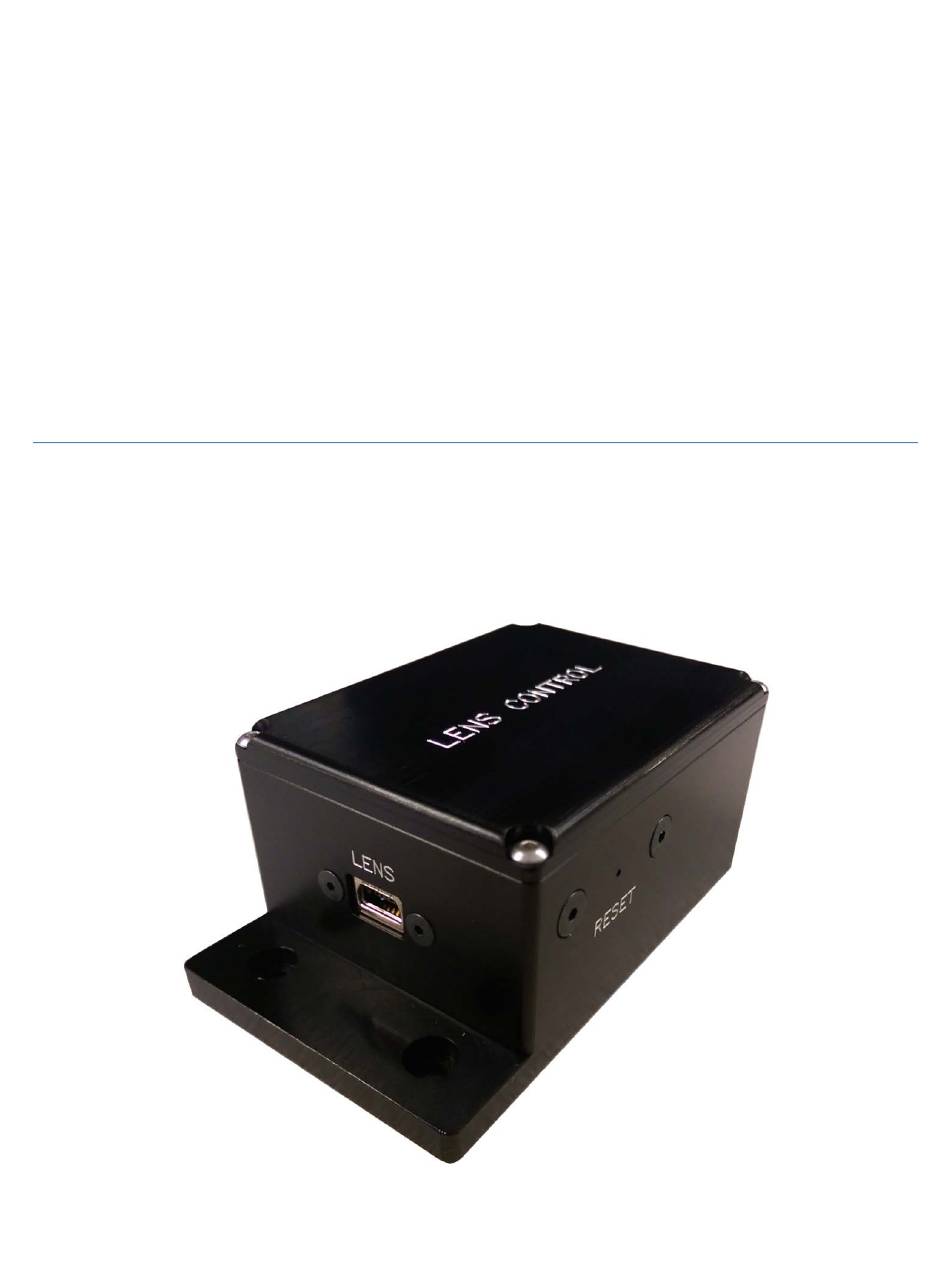

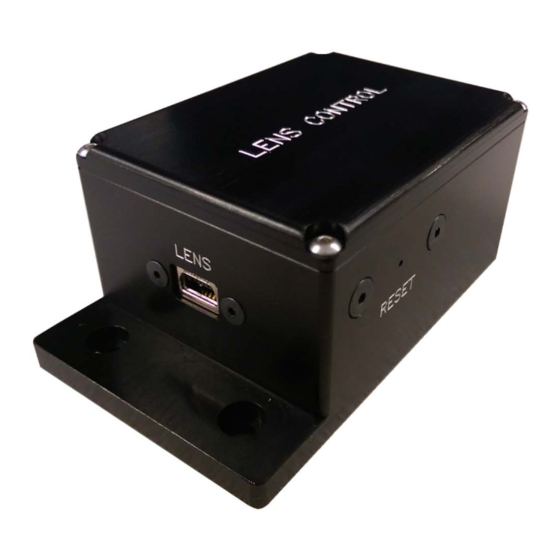

- Page 1 INNOVATIVE SCIENTIFIC SOLUTIONS, INCORPORATED Ethernet Len Controller (LC-2) Operation Manual...
-
Page 2: Table Of Contents
NIC Network Setup......................4 Software Operation ......................7 Multi Control ........................10 Firmware Upgrade.......................10 Dimensions ..........................12 Export Disclaimer ........................14 For questions or comments, please contact ISSI Innovative Scientific Solutions, Incorporated 7610 McEwen Road Dayton, OH 45459 Ph.: (937) 630-3012 Fax: (937) 630-3015 www.psp-tsp.com... -
Page 3: Features
The presets will save the position of the focus and aperture. Since the LC-2 is an Ethernet device, it can be networked with other LC-2s or Ethernet devices. This makes communication and physical cable connections much simpler than traditional serial lens controllers and also allows them to be operated over a longer distance than serial devices. -
Page 4: Connections
If the IP address is changed and forgotten, the reset switch will set the device back to its default IP address of 192.168.2.252. Use a paper clip to reset the device, holding for 2 seconds. Restart the software and the LC-2 will connect with its default IP address. Ethernet/ Power Connection... -
Page 5: Nic Network Setup
The lens controller can be mounted using the provided M3 screw kit and wrench. Use a Cat5 or Cat6 Ethernet cable (provided) to connect to a PC network interface card or network switch. The lens adapter is supplied with a mini USB 2.0 connection to connect to the LC-2. The LC-2 is set up for universal power. - Page 6 IP address. The host can be any value 1-254 but different from the host address of the LC-2. The subnet mask should be set to match that of the LC-2 which, by default is 255.255.255.0. The Default Gateway and all other fields can be left blank.
- Page 7 If connection problems persist, check the connection of the Ethernet cable between the computer NIC and the LC-2. To check that there is a physical connection, ping the IP address of the LC-2 from the Command Prompt. To do this, open the command prompt window and enter:...
-
Page 8: Software Operation
Innovative Scientific Solutions, Inc. Software Operation Open the software for the LC-2 from the desktop and it will ask for the IP of the connected LC-2. Enter the IP address of the LC-2 connected to the network. To communicate with multiple LC- 2s over this network (through a network switch);... - Page 9 If the toolbar is red, that means it is not a valid IP address. Type in the desired IP address and click Apply to implement. Always on Top makes the LC-2 software always appear as the front window for all windows open on the desktop.
- Page 10 Innovative Scientific Solutions, Inc. lens settings. Settings are saved to the computer in which the interface is open, not the lens controller itself. To recall those lens settings, select Load Settings and the lens will return each motor to those positions.
-
Page 11: Multi Control
‘About’ menu. Firmware updates will be issued if needed and will always be posted to the ISSI website under the ISSI products page in the download section for the LC-2. Click on Firmware Update to open the window to select the firmware file to upload. - Page 12 The following warning will appear to notify the user to cycle the power by the power connection before uploading the firmware update. Clicking Yes will place the LC-2 into firmware upgrade mode for 10 seconds. Cycle the power within the 10 second window and the firmware will be uploaded.
-
Page 13: Dimensions
Innovative Scientific Solutions, Inc. Dimensions LC-2 Control Box... - Page 14 Innovative Scientific Solutions, Inc. LC-2A Lens Adapter...
-
Page 15: Export Disclaimer
Except as authorized by law or distributor agreement with ISSI, you agree and warrant not to export or re-export the information to any country, or to any person, entity, or end-user subject to U.S. export controls, including without limitation persons or entities listed on the U.S.
