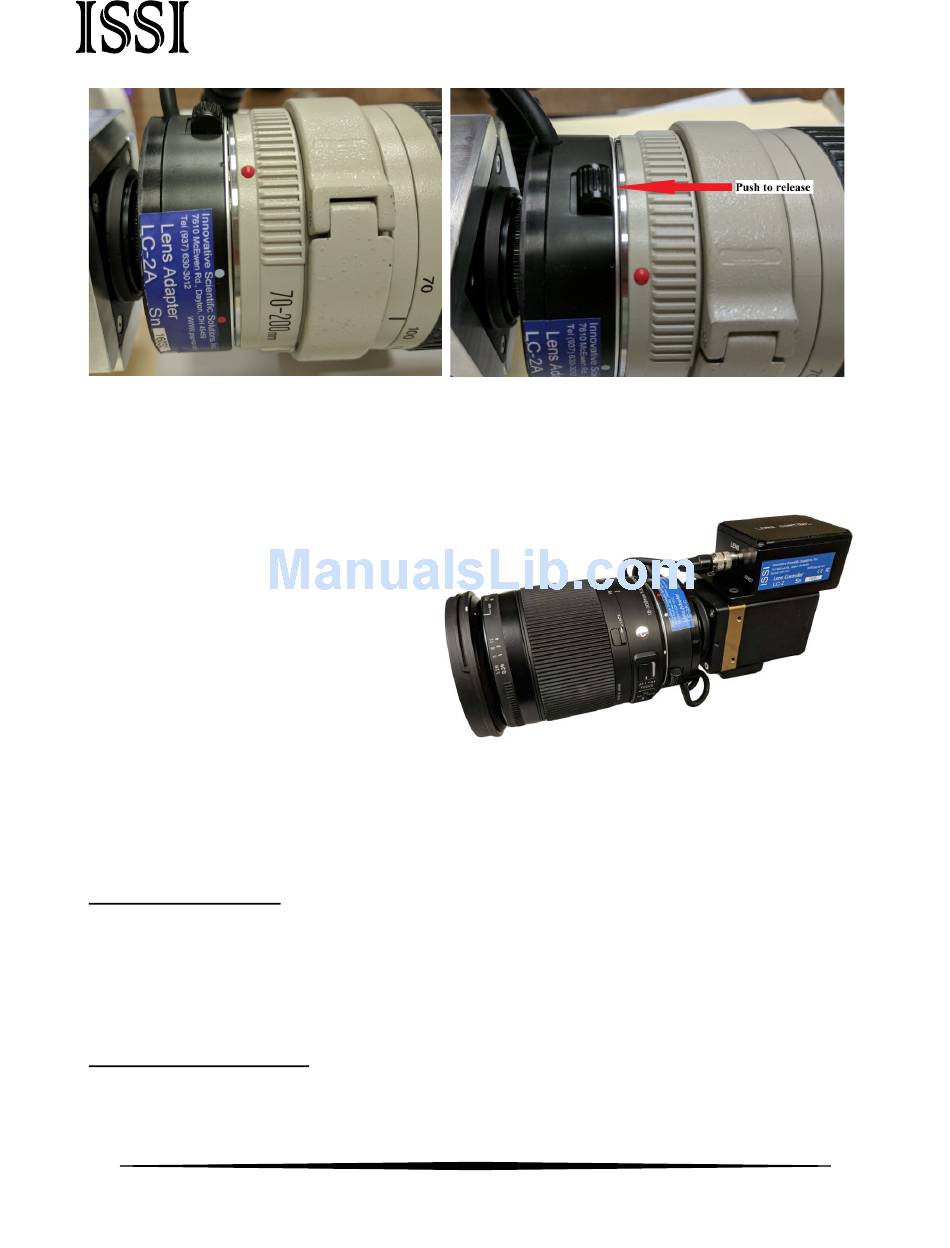

Lens in Lock Position Push Button to Release
Once the lens is connected, connect the plug from the lens adapter to the receptacle labeled
LENS on the control box. This is a keyed connector. Rotate and push in until it slides on and
locks. Screw on clockwise until secure.
Some EF lenses have a zoom function but
they are not motorized zoom, only
manual. For these lenses, the zoom is
displayed in the interface but not
controlled. The LC-2 will connect with
non-AF EF lenses but will only be able to
control the aperture as they have no
motor to control focus.
Lens Controller and Lens Connected to Camera
Failure to install and operate the LC-2
according to instructions may result in impairment or damage to the controller and attached
lens.

Maintenance

Inspect all connections and ensure they are free of debris that could prevent electrical contact
from being made. Make sure no debris is present that could cause an electrical short. Always
disconnect the device from power when performing routine maintenance inspections.

Network Setup

The network on the PC NIC (network interface card) needs to be properly configured for
communication over the network. To do this, navigate to the 'Network Connections' page on
