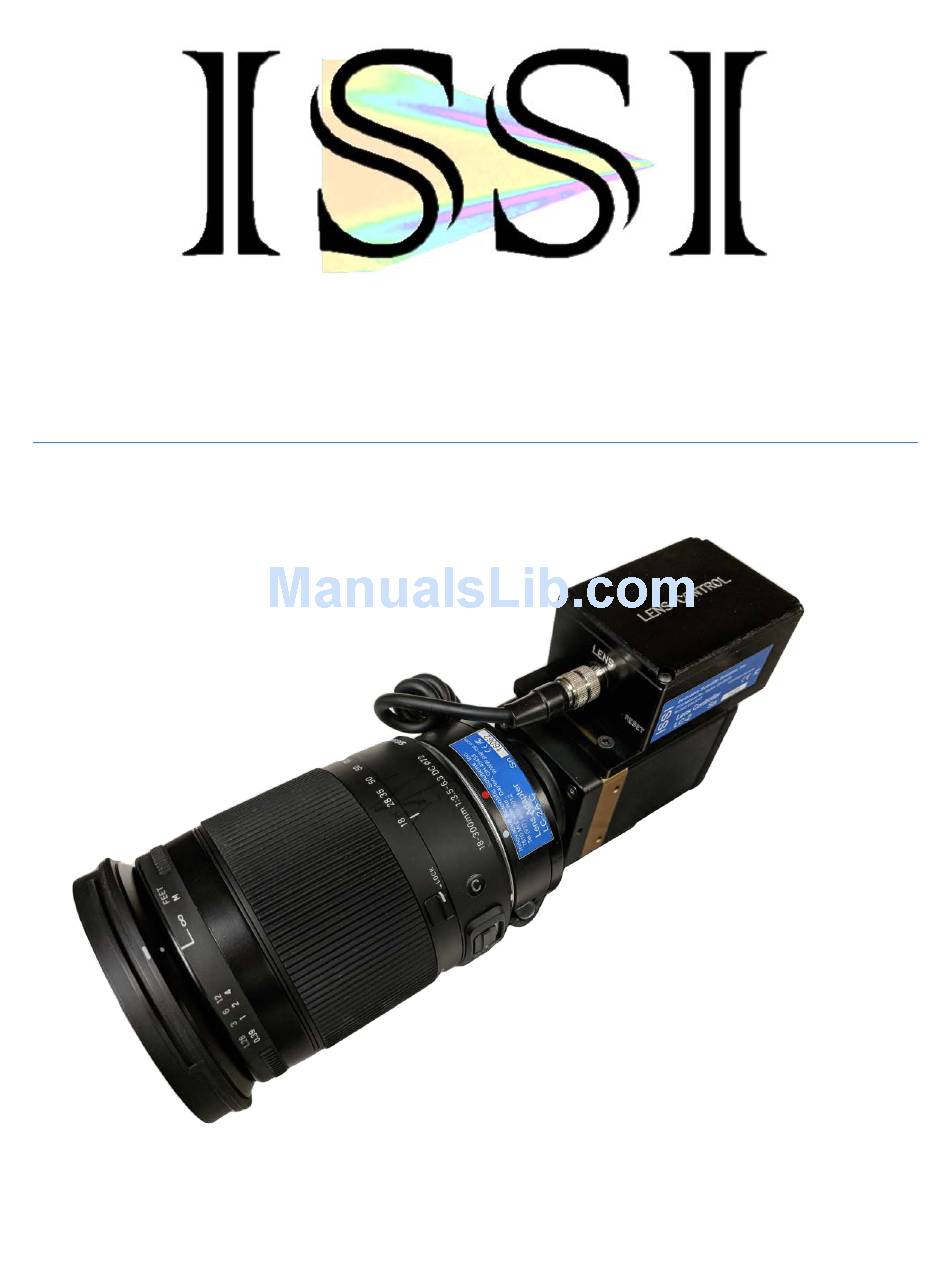

- Page 1 Canon® EF/EF-S Lens Controller (LC-2) Operation Manual (Version 4.0)
-
Page 2: Table Of Contents
Network Setup ........................9 Software Operation ......................11 Multi Control ........................16 Firmware Upgrade ......................16 Troubleshooting ....................... 19 Lenses Tested with LC-2 ....................22 Dimensions ........................23 Export Disclaimer ......................26 For questions or comments, please contact ISSI Innovative Scientific Solutions, Incorporated... -
Page 3: Description
This makes communication and physical cable connections much simpler than traditional serial lens controllers and also allows them to be operated over a longer distance than serial devices. The IP address of the LC-2 can be configured to match the local network. Specifications... -
Page 4: Connections
If the IP address is changed and forgotten, the reset switch will set the device back to its default IP address of 192.168.2.252. Use a paper clip to reset the device, holding for 3 seconds. Restart the software and the LC-2 will connect with its default IP address. Lens Connection / Reset... - Page 5 3. LC-2A-C/M42/T lens adapter 4. LC-2 lens control box 5. M3 Toolkit for mounting 6. USB drive with software and instruction manual Unboxing the LC-2 Lens Controller Connection of LC-2 to Canon® EF Lens using LC-2A-C lens adapter on c-mount camera...
-
Page 6: Installation And Operation
The LC-2 control box has a small slotted bracket to countersink M3 hex bolts for mounting. If the camera being used with the LC-2 has no mounting holes to mount the LC-2 control box, a bracket will need to be made to bolt the control box. It should be mounted within 6-inches (150-mm) of the lens connection on the camera. - Page 7 Once the LC-2 control box is secured, connect the power adapter to universal power (110-240 VAC). Plug the power adapter to the LC-2 control box in the receptacle labeled POWER. Seat the plug so it is fully inserted in the power receptacle. Screw the locking connector clockwise until tight.
- Page 8 Innovative Scientific Solutions, Inc. Next connect the lens adapter (LC-2A-C or LC-2A-M42) to the lens connection on the camera. This is a screw-on connection and should be screwed on clockwise until secure. Connect the lens to the adapter. The lens will have a red dot indicating the position of the lens to correctly install to the adapter.
-
Page 9: Maintenance
Lens Controller and Lens Connected to Camera Failure to install and operate the LC-2 according to instructions may result in impairment or damage to the controller and attached lens. - Page 10 This will open the ‘Internet Protocol Version 4 (TCP/IPv4) Properties’ window. This is where the IP addresses are entered so that LC-2 can be reached over the local network. The settings needed for communication are IP Address and Subnet mask.
-
Page 11: Software Operation
LC-2 from the Command Prompt. To do this, open the command prompt window and enter: Ping XXX.XXX.XXX.XXX –t Software Operation Open the software for the LC-2 from the desktop and it will ask for the IP of the connected LC- 2. Enter the IP address of the LC-2 connected to the network. - Page 12 Innovative Scientific Solutions, Inc. If the IP address is unknown, press ‘Browse’ to search through all IP addresses on the network under the subnetwork(s) of the NIC. Once connected, the GUI will learn the limits on the attached lens and show the current position of each motor of the lens.
- Page 13 Innovative Scientific Solutions, Inc. for coarse adjustments. Step size can be set from 1 to 50. The focus and aperture can also be moved to points within its range using the sliding adjustment labeled ‘Value’. Image stabilization (IS) can be enabled and disabled for lenses that have the IS feature. The IS switch on the lens must be switched ON to use this feature.
- Page 14 Innovative Scientific Solutions, Inc. If the toolbar is red, that means it is not a valid IP address. Type in the desired IP address and click Apply to implement. The new IP address will automatically be connected: If the IP address does not change and the following message is displayed after the IP is changed, it may need to be run as administrator.
- Page 15 To clear the table so the lens controller IP is reset to the new address entered, type “arp –d”. Running the lens control software as administrator will automatically clear the ARP table. Always on Top makes the LC-2 software always appear as the front window for all windows open on the desktop.
- Page 16 Innovative Scientific Solutions, Inc. To recall those lens settings, select Load Settings and the lens will return each motor to those positions. The lens focal length, position of the focus motor and F number will be displayed for each saved set point. When the position of the lens is being set, the above status window will show the progress.
-
Page 17: Multi Control
‘About’ menu. Firmware updates will be issued if needed and will always be posted to the ISSI website under the ISSI products page in the download section for the LC-2. Always use the software version recommended for the firmware. - Page 18 The following warning will appear to notify the user to cycle the power by the power connection before uploading the firmware update. Restarting the power to the LC-2 will place it into firmware upgrade mode. Cycle the power and the firmware will be uploaded.
-
Page 19: Troubleshooting
Innovative Scientific Solutions, Inc. Troubleshooting Communication The lights on the Ethernet port should be flashing if communication is established. If the device is locked and the lights are not flashing, it is locked in firmware upgrade mode. Check the lens to assure the lens is locked in place. - Page 20 Innovative Scientific Solutions, Inc. Another solution to communication issues is to clear the associated IP addresses to the LC-2. This problem can occur when the IP address is changed. There are two methods to clear the IP addresses. 1.) Run the lens control interface as administrator 2.) Open the command prompt (as administrator) and type “arp d”.
- Page 21 Innovative Scientific Solutions, Inc. If it does not start automatically (after 1-2 sec), restart by power. Recovery and Reset Once all network settings have been verified to be correct and if resetting the controller doesn’t solve communication problems, the following steps can be performed to reset the controller by power and recover communications.
- Page 22 Innovative Scientific Solutions, Inc. 1.) Connect a lens to the adapter to allow the controller to find the lens. It may be in a loop looking for a lens. If that does not work: 2.) Open the software and go to the firmware update. Select the firmware and load (even if the lens won't connect).
-
Page 23: Lenses Tested With Lc-2
Innovative Scientific Solutions, Inc. Lenses Tested with LC-2 • Canon EF 18-55mm f/3.5-5.6 USM • Canon EF 20mm f/2.8 USM • Canon EF 24mm f/2.8 IS USM • Canon EF 28mm f/1.8 USM • Canon EF 35mm f/2.0 IS USM •... -
Page 24: Dimensions
Innovative Scientific Solutions, Inc. Dimensions LC-2 Control Box... - Page 25 Innovative Scientific Solutions, Inc. Standard Lens Mount Lens Adapters LC-2A-C Lens Adapter (EF-C lens adapter) LC-2A-M42 Lens Adapter (EF-M42x1 lens adapter)
- Page 26 Innovative Scientific Solutions, Inc. T-Mount Lens Adapters LC-2A-T (EF-T lens adapter) For use with ASI1600 cameras LC-2A-T18 (EF-T lens adapter) For use with ASI1600 cameras with ZWO EFW filter wheel...
- Page 27 Innovative Scientific Solutions, Inc. Large Format Lens Adapters LC-2A-M58-75 Lens Adapter (EF-M58x0.75 lens adapter)
-
Page 28: Export Disclaimer
Except as authorized by law or distributor agreement with ISSI, you agree and warrant not to export or re-export the information to any country, or to any person, entity, or end-user subject to U.S.
