Promise Technology Pegasus2 R4 Quick Start Manual

QUICK START GUIDE
Step 1: Unpack the Pegasus2 Unit
The Pegasus2 box contains the following items:
• Power cord
• Pegasus2 Unit
• Thunderbolt cable
• Quick Start Guide

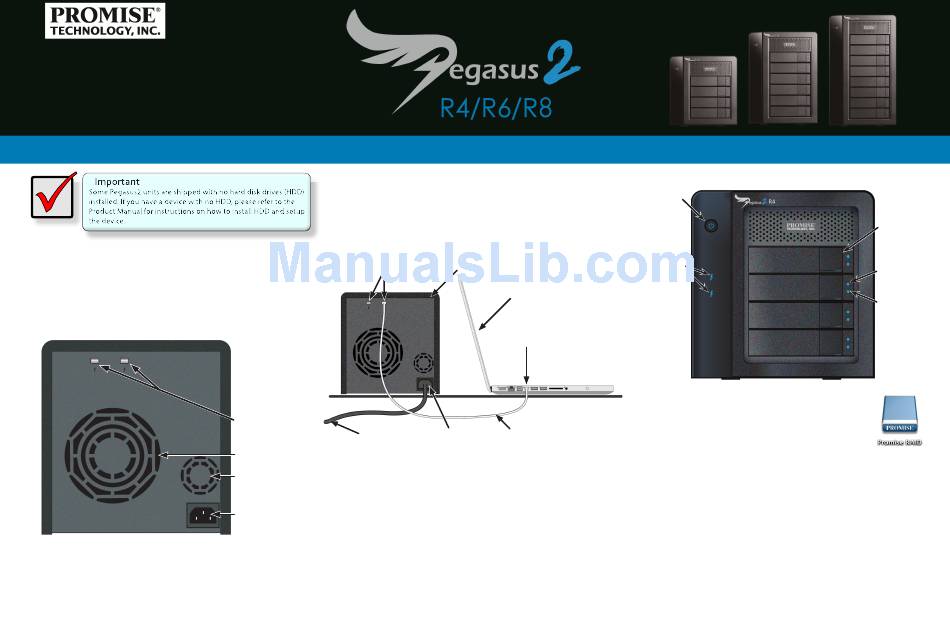

Figure 1. Pegasus2 back view
Step 2: Connect the Power
Attach the power cord on the back of the Pegasus2 unit. See Figure 2. Plug the other
end into a power source.`
Step 3: Connect to your Mac, power on Pegasus2
Connect a Thunderbolt cable from one of the Thunderbolt ports on the back of the Pegasus2
to the Thunderbolt port on your computer. See Figure 2.
The Pegasus2 powers on automatically as soon as the Thunderbolt cable is connected.
Figure 2. Thunderbolt and power connections
Thunderbolt ports
Thunderbolt ports
T o power source
You can use the second Thunderbolt port on the Pegasus2 to connect to another Thunderbolt device or
Main cooling fan
a mini-Display Port device.
Power supply cooling fan
Pegasus2 Power up sequence
Power connection
When the device is powered on by connecting the Thunderbolt cable, or by pressing the
Power Button, the Power Button turns orange. It takes about 30 seconds to start the Pegasus2
unit. When start-up is complete:
• The Power Button turns blue.
• The drive carrier Power/Status LEDs turn blue.
The Connection LEDs turn blue when there is a proper connection on that Thunderbolt port.
©2013 Promise Technology, Inc. All Rights Reserved. Version 2.0
Pegasus2 unit
MacBook Pro
Thunderbolt port
Power cable Thunderbolt cable
Lightning Fast Performance
Figure 3. Pegasus2 unit front view
Power button/
Status LED
Thunderbolt
Link LEDs
Pegasus2 ships from the factory pre-configured with one logical drive. This
configuration is suitable for general purposes.
When you start the Pegasus2, a removable-drive disk icon, representing the
logical drive, appears on your desktop (see right).
Notice! At this point, the synchronization process is running in the background.
Device performance will not be optimal until background
synchronization is completed. The process will take several hours. The
amount of time required depends on the total capacity.
Automatic Functions
• Sleep – When your Mac computer goes to sleep, the Pegasus2 unit automatically shuts
down after all background activities are finished.
• Wake – When your Mac computer wakes, the Pegasus2 unit automatically powers on.
• Shutdown – When your Mac computer shuts down, the Pegasus2 unit automatically
shuts down.
• Restart After Shutdown – When your Mac computer powers up, the Pegasus2 unit
automatically powers up.
See the Pegasus2 Product Manual for more information.
Need assistance and more information?
PROMISE E-Support: https://support.promise.com
PROMISE Website: http://www.promise.com/apple/
Drive Carrier
Drive Power
/ Status LED
Drive Activity
LED
