Appendix C Bogballe Calibrator Zurf Interface - Raven Envizio Pro Installation & Operation Manual

Bogballe Offset Distance Calculation
FIGURE 2.
Bogballe
Spreader
From the field computer Home screen, touch the Tools Menu icon and select the Offsets icon from the
4.
Vehicle submenu.
Touch the Fore/Aft value on the Offsets Setup screen and use the on-screen keypad to enter the calculated
5.
total offset value.
Note:
The values entered for the fore/aft value must be entered in the same units as shown above the
fore/aft offset value.
Manual No. 016-0171-148

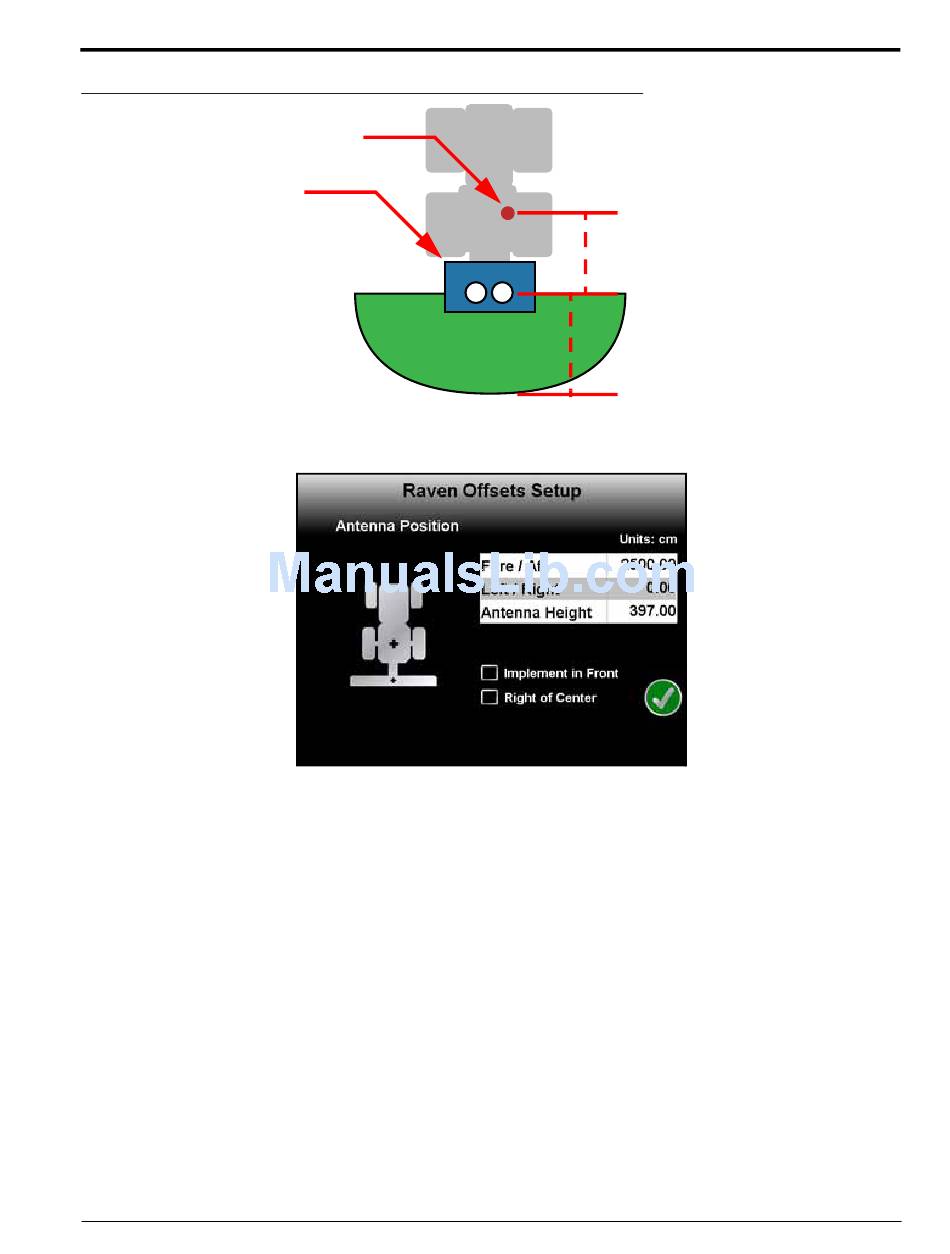

GPS Antenna
Bogballe Calibrator Zurf Interface
Antenna/Spinner Offset
Distance (measured)
Bogballe Spread
Distance (from Chart)
