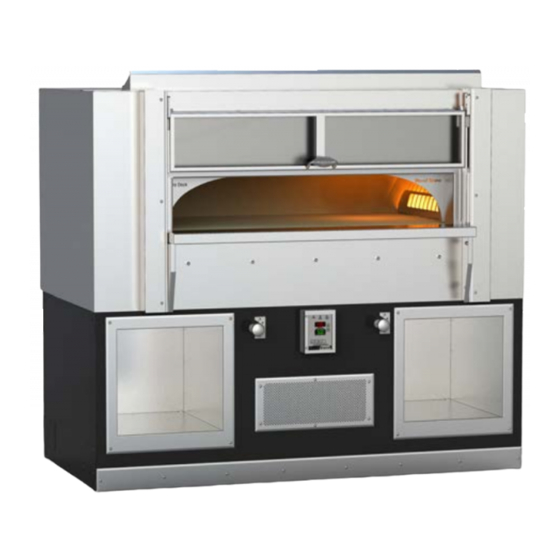

Fire deck series ce stone hearth oven

Advertisement

Quick Links

Installation and
Operation Manual
FIRE DECK SERIES - CE
Stone Hearth Oven
Gas-Fired, Gas/Wood
Combination European Models
FIRE DECK 6045 WS-FD-6045-CE
FIRE DECK 8645 WS-FD-8645-CE
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Tel +1.360.650.1111
Fax +1.360.650.1166
DOC NO M0042.04
REVISED November 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIRE DECK 6045 WS-FD-6045-CE and is the answer not in the manual?

Questions and answers

Summary of Contents for Wood Stone FIRE DECK 6045 WS-FD-6045-CE

  • Page 1 Installation and Operation Manual FIRE DECK SERIES - CE Stone Hearth Oven Gas-Fired, Gas/Wood Combination European Models FIRE DECK 6045 WS-FD-6045-CE FIRE DECK 8645 WS-FD-8645-CE WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 www.woodstone-corp.com...
  • Page 2: Table Of Contents

    ELECTRICAL DIAGRAM � � � � � � � � � � � � � � � 24 LIMITED WARRANTY � � � � � � � � � � � � � � � � 26 Wood Stone Corporation 1801 W. Bakerview Rd.
  • Page 3: Fire Deck

    FIRE DECK FD-6045-CE & FD-8645-CE Fire Deck Oven Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR WOOD STONE FIRE DECK OVENS STONE HEARTH OVENS EUROPEAN MODEL NATURAL GAS OR PROPANE FUELED WS-FD-6045-RFG-(L, R)-IR-CE-(NG, LP) WS-FD-8645-RFG-(LR, L, R)-IR-CE-(NG, LP) ADDITIONAL COPIES AVAILABLE UPON REQUEST Shown: WS-FD-8645-CE This appliance is for professional use by qualified personnel.
  • Page 4: Fd-6045 Specifications

    MAY REQUIRE US TO CHANGE SPECIFICATIONS LEGEND: LEGEND: An ongoing program of product improvement may require us to change 160,000 BTU, NG HOUT THE WRITTEN PERMISSION OF WOOD STONE IS WITHOUT NOTICE. WITHOUT NOTICE. info@woodstone-corp.com or visit woodstone-corp.com specifications without notice. FD-6045-CE, FD-8645-CE,...
  • Page 5: Fd-8645 Specifications

    UNLESS NOTED OTHERWISE GAS INLET: 3/4" NPT ANY REPRODUCTION OR USE IN PART OR AS A WHOLE 225,000 BTU, NG WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS 1801 W. Bakerview Rd. Tel +1.360.650.1111 AN ONGOING PROGRAM OF PRODUCT IMPROVEMENT...
  • Page 6: Installation Clearances

    CLEARANCES a. The Wood Stone Fire Deck oven should have a minimum 25mm (1") clearance to combustibles from all sides, and 610 mm (24") clearance to combustibles from the top. If building a facade that will contact the oven, use completely non- combustible materials*�...
  • Page 7: Oven Venting

    Frequent, regularly scheduled, thorough flue cleaning is the best way to minimize the risk of flue fires� Wood Stone recommends cleaning and inspection at least monthly on any ventilation system serving solid fuel equipment.
  • Page 8: Component Schematic

    E. Ignition module F. Controller circuit board G. Gas control valve H. Temperature Control Knob I. Flex conduit Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
  • Page 9 E. Ignition module F. Controller circuit board G. Gas control valve H. Temperature Control Knob I. Flex conduit Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
  • Page 10: Unloading And Moving

    Forklift pockets (side view) Always use the forklift pockets; lifting the oven any other way will result in damage� The Wood Stone Fire Deck 6045 weighs approximately 1450 Kg (3200 lbs), and the 8645 weighs approximately 1975 Kg (4350 lbs), and they are top-heavy� Use extreme caution and make sure that the forks extend all the way through the pockets provided (if not, fork extensions must be used so the forks extend the full length of the fork pockets)�...
  • Page 11 This oven is designed to be sealed to the floor upon installation� Use a silicone sealant acceptable to the local health official� Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166...
  • Page 12: Placing And Installation

    PLACING AND INSTALLATION FD-6045-CE & FD-8645-CE Fire Deck Oven Installation and Operation Manual PLACING THE OVEN The oven must be installed on a flat level surface� The weight of the oven is carried by the full perimeter of the oven stand� If it is necessary to shim the oven for leveling purposes, it is critical that the shim material be metal, and that the shims are installed in such a way that the full perimeter of the stand is solidly supported�...
  • Page 13: Facade Ready Ovens

    (supplied by others) noncombustible, sanitation approved materials used to cover the cement board can be neatly terminated at these points� 25 mm (1") stainless steel perimeter lip Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
  • Page 14 (supplied by others) sanitation approved materials used to cover the cement board can be neatly terminated at these points� 25 mm (1") stainless steel perimeter lip Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
  • Page 15: Gas Specifications

    Installation and Operation Manual The Wood Stone WS-FD-6045 and WS-FD-8645 are equipped with a 19 mm (3/4") female ISO-7 gas connection� Have a licensed gas installer provide the hookup and test all fittings and pipe connections for leaks. Use approved gas leak detectors (soap solutions or equivalent) over and around the fittings and pipe connections�...
  • Page 16: Scope Of Approvals

    3B/P(30) for use in: PL 3B/P(37) for use in: AT, DE, HU, SK and CH 3B/P(50) Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
  • Page 17: Electrical Specifications

    Junction box Gas inlet Electrical line entry (cord grip) Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
  • Page 18: Controller

    Toggle button to change between Fahrenheit and Celsius temperature scales 1-360-650-1111 www.woodstone-corp.com in display screens Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
  • Page 19: Initial Start-Up

    To adjust the oven’s thermostatic floor temperature setting, simply press the arrow button corresponding to the direction in which you would like the setting to go� If the thermostatic Hearth Set Point is raised above the actual hearth temperature, the Underfloor IR burner should activate� Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166...
  • Page 20: Daily Oven Operation

    Note: It is possible to program the floor’s thermostatic Hearth Set Point to temperatures from 37–427 °C (100–800 °F)� Once proper temperatures for your application have been established, there should be little or no need to change the floor Hearth Set Point� Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166...
  • Page 21: Daily Maintenance

    OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use� Use a natural fiber brush—always brushing away from the radiant burner wells� For deeper cleaning, use a brass bristled brush�...
  • Page 22: Operational Sequence

    OPERATIONAL SEQUENCE FD-6045-CE & FD-8645-CE Fire Deck Oven Installation and Operation Manual RFG-(W) CE OVEN BURNER OPERATION SEQUENCE Power On. ICS2 Module powers Igniter and opens Pilot valve. Pilot lights. Pilot does not light, ICS2 Module times ICS2 Module senses out.
  • Page 23 Set Point – Controller turns off ower to ICS1 to turn off IR burner. Note: Primary heat source for this model is the wood fire. Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com...
  • Page 24: Electrical Diagram

    TB3-5 DIAG #: WD066 Rev. 1 Bellingham, WA +1(360)650-1111 www.woodstone-corp.com DATE: 4/7/2014 Wood Stone Corporation 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 An ongoing program of product improvement may require us to change info@woodstone-corp.com or visit woodstone-corp.com specifications without notice.
  • Page 25 ELECTRICAL DIAGRAM FD-6045-CE & FD-8645-CE Fire Deck Oven Installation and Operation Manual FD-6045-CE & FD-8645-CE 230 VAC MODEL RFG-(LR)-IR-CE / W-IR-CE TYPE 2 CONTROLLER RADIANT FLAME BURNERS Dual Radiant Flame - CE XFMR Spark / Sensor ICS 2 SV-2 fuse F1 = 5A fuse F2 = 2A TB4-P Pink 6EQ1...
  • Page 26: Limited Warranty

    LIMITATIONS OF LIABILITY: In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
