Installation and
Operation Manual

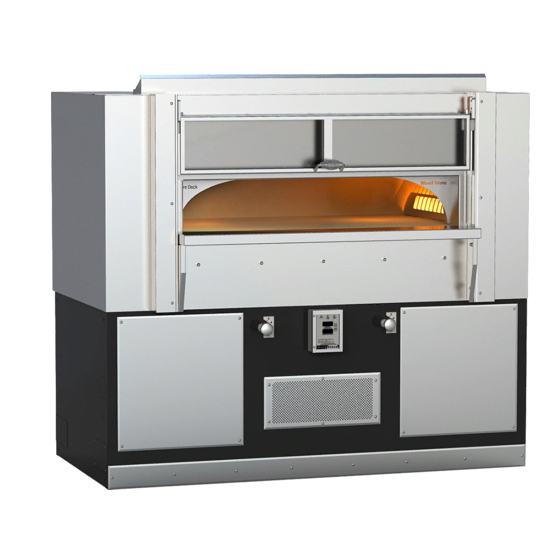

FIRE DECK SERIES - CE
Stone Hearth Oven
Gas-Fired, Gas/Wood
Combination European Models
FIRE DECK 6045 WS-FD-6045-CE
FIRE DECK 8645 WS-FD-8645-CE
FIRE DECK 8645 WS-CS-REC-16-CE
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Tel +1.360.650.1111
Fax +1.360.650.1166
DOC NO M0042.13
REVISED JULY 2019
Advertisement
Table of Contents
Related Manuals for Wood Stone FIRE DECK Series
Summary of Contents for Wood Stone FIRE DECK Series
- Page 1 Installation and Operation Manual FIRE DECK SERIES - CE Stone Hearth Oven Gas-Fired, Gas/Wood Combination European Models FIRE DECK 6045 WS-FD-6045-CE FIRE DECK 8645 WS-FD-8645-CE FIRE DECK 8645 WS-CS-REC-16-CE WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166...
-
Page 2: Table Of Contents
TABLE OF CONTENTS FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual TABLE OF CONTENTS � � � � � � � � � � � � � � � � � � � Fire Deck CE � � � � � � � � � � � � � � Cautions &... -
Page 3: Fire Deck Ce
FIRE DECK CE FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR WOOD STONE FIRE DECK OVENS ORIGINAL INSTRUCTIONS STONE HEARTH OVENS EUROPEAN MODEL NATURAL GAS OR PROPANE FUELED WS-FD-6045-RFG-(L, R)-IR-CE-(NG, LP) WS-FD-8645-RFG-(LR, L, R)-IR-CE-(NG, LP) -
Page 4: Cautions & Warnings
CAUTIONS & WARNINGS FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual WOOD STONE FIRE DECK SERIES CE GAS-FIRED OVEN OPERATING INSTRUCTIONS DO NOT THROW THIS MANUAL AWAY RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at woodstone-corp�com�... -
Page 5: Fd-6045-Ce Specifications
FD-6045-CE SPECIFICATIONS FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual Plan view NOTES This oven is available in a left or right side burner Air intake: Do not 59 3/4" configuration� Gas connections 1520mm facade or cover over 1" will be on the same side of 30mm Must be left... -
Page 6: Fd-8645-Ce Specifications
FD-8645-CE SPECIFICATIONS FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual Plan view NOTES 85 3/4" 2180mm This oven is available Air intake: Do not 1" 30mm in a left, right or left facade or cover over and right side burner Must be left configurations�... - Page 7 CLEARANCES a. The Wood Stone Fire Deck oven should have a minimum 25mm (1") clearance to combustibles from all sides, and 610 mm (24") clearance to combustibles from the top. If building a facade that will contact the oven, use completely non- combustible materials*�...
-
Page 8: Unloading & Moving The Oven
USING A FORKLIFT. The Wood Stone Fire Deck 6045 weighs approximately 1450 Kg (3200 lbs), and the 8645 weighs approximately 1975 Kg (4350 lbs), and they are top-heavy� Use a forklift with adequate fork lengths and lifting capacity� When using a forklift, always use the forklift pockets� Lifting the oven any other way with a forklift may result in damage�... -
Page 9: Optional Temp Caster Install
INSTALLATION OPTIONAL TEMP CASTER INSTALL FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual INSTRUCTIONS FOR INSTALLING AND REMOVING OPTIONAL OVEN CASTERS Fire Deck ovens are VERY heavy. Do not attempt to move the oven over any type of grade or sloped surface when using the Casters or Pallet Jack. WARNING: Failure to follow these instructions may result in severe injury or death. -
Page 10: Placing & Installation
PLACING & INSTALLATION FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual PLACING THE OVEN The oven must be installed on a flat level surface� The weight of the oven is carried by the full perimeter of the oven stand� If it is necessary to shim the oven for leveling purposes, it is critical that the shim material be metal, and that the shims are installed in such a way that the full perimeter of the stand is solidly supported�... -
Page 11: Venting
The above statement taking precedence, Wood Stone Corporation recommends the following options: • This Wood Stone Fire Deck oven can be vented as a Type A appliance (with no flue connection), designed to be installed under an exhaust hood (canopy)� The hood must be connected to a grease-rated duct system� The venting system must be designed and installed in accordance with all relevant codes pertaining to grease and smoke producing commercial cooking appliances�... -
Page 12: Facade Requirements
ABOUT FACADE MATERIALS Fire Deck Series ovens can be finished with any non-combustible decorative material that can be easily affixed to the oven surface, including tile, stone or brick� It is always advisable to consult with the appropriate authority having jurisdiction before proceeding as there may be regulations regarding the suitability of various materials�... - Page 13 FACADE REQUIREMENTS FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual WS-FD-8645-CE The facade-ready front Fire Deck oven features cement board already installed on the front surfaces of the oven� ANY MATERIALS AFFIXED TO THE CEMENT BOARD MUST NONCOMBUSTIBLE� Total thickness of facade materials, including the cement board, should not exceed 25 mm (1") in...
-
Page 14: Gas Specifications
NOTE: Some models are only equipped with two valves. Wood Stone recommends that the Fire Deck be equipped with a manual, individual shut-off valve, located between the oven and the main gas supply, and that this shut-off valve (supplied by others) be left readily accessible� Wood Stone also recommends that inspection and maintenance of the burners and gas piping connections of this appliance be performed at regularly scheduled intervals and only by professional gas appliance service agencies�... - Page 15 GAS SPECIFICATIONS: FD-6045-CE FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual NATURAL GAS (NG) Gas Supply and Pressure WS-FD-6045-RFG-(L R)-IR-CE-NG MODELS EN 437 Gas Group 2ELL Declared Input (kW) 41�39 41�39 41�39 41�39 Inlet Pressure (mbar) 20/25 Declared SV-1 8�7 8�7 8�7...
- Page 16 GAS SPECIFICATIONS: FD-8645-CE FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual NATURAL GAS (NG) Gas Supply and Pressure WS-FD-8645-RFG-LR-IR-CE-NG MODELS EN 437 Gas Group 2ELL Declared Input (kW) 65�93 65�93 65�93 65�93 Inlet Pressure (mbar) 20/25 Declared SV-1 8�7 8�7 8�7 8�7...
-
Page 17: Electrical Specifications
ELECTRICAL SPECIFICATIONS FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual ELECTRICAL The oven is rated at 230 VAC, 2 A, 50 Hz� The rating also appears on the data plate� Electrical diagrams are located on the junction box and also at the end of this manual� Electrical Grounding: This appliance must be electrically grounded (earthed)�... -
Page 18: Controller
CONTROLLER CONTROLLER FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual CONTROLLER FUNCTIONS Hearth Heat Indicator Light Dome Flame Indicates that the pilot for the Indicator Light Underfloor IR burner is lit� This Power Indicator Light Indicates the pilot light will go OFF whenever the Indicates the oven is for the radiant flame hearth temperature is above the... -
Page 19: Initial Start-Up
INITIAL START-UP FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual INITIAL OVEN START-UP FIRST DAY 1. Make sure main gas supply is ON (valve parallel with gas line)� 2. Push I/O button on controller� It may take a while for the gas to purge all the air from the gas lines� 3. -
Page 20: Daily Oven Operation
DAILY OVEN OPERATION FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual DETAILED DAILY OVEN OPERATION IMPORTANT: If at any time you feel that either or both of the burners are not operating properly, turn the oven OFF and call for service. Before servicing, disconnect the electrical supply at the breaker and turn OFF the gas supply at the appliance’s individual gas shut-off valve. -
Page 21: Daily Maintenance
OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use� Use a natural fiber brush—always brushing away from the radiant burner wells� For deeper cleaning, use a brass bristled brush�... -
Page 22: Burning Wood Safely
FIRE DECK MODELS LISTED FOR WOOD BURNING WILL HAVE A “-W” IN THE MODEL NUMBER. When burning wood in a Wood Stone Fire Deck, the fire should be located on the side of the oven chamber opposite the radiant gas burner� Wood may be burned at a rate not to exceed 6�8 kg (15 lbs) per hour� Two models, “-W-IR” and “-W”, have no radiant burners—wood may be burned on both sides of the oven chamber simultaneously�... -
Page 23: Managing The Oven Fire
OR SIMILAR LIQUIDS TO START OR FRESHEN A FIRE IN THIS OVEN. KEEP ALL SUCH LIQUIDS AWAY FROM THE OVEN WHILE IT IS IN USE. DO NOT USE PRESSED WOOD PRODUCTS IN WOOD STONE EQUIPMENT AS THEY MAY DAMAGE THE CERAMICS. -
Page 24: Fuelwood Facts
Wet wood is the most common operational difficulty associated with wood-fired cooking equipment� Wood Stone’s optional Mini-Ligno E Wood Moisture Meter can save you from paying for water when you thought you were paying for wood (see the Tools &... -
Page 25: Troubleshooting Guide
Underfloor IR burner did not fire when the floor temperature dropped below Hearth Set Point� the Hearth Set Point� Contact Wood Stone for assistance� “Chec” display on Controller Underfloor IR burner did not fire when the floor temperature dropped below the Hearth Set Point�... -
Page 26: Operational Sequence
OPERATIONAL SEQUENCE FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual RFG-(W) CE OVEN BURNER OPERATION SEQUENCE RFG-IR-(W) CE OVEN BURNER OPERATION SEQUENCE Power ON� Power ON� ICS2 Module powers ICS2 Module (Radiant burner) Igniter and opens Pilot powers Igniter and opens valve�... -
Page 27: Component Schematic
COMPONENT SCHEMATIC COMPONENT SCHEMATIC FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual The Fire Deck 8645-CE with an Underfloor (IR) Burner, two Burner Jets (typ) w/ Flame Retention Springs Radiant Burners and a Decorative Flame is shown below� Actual components and layout will vary depending upon the model and specific configuration of the oven�... -
Page 28: Electrical Diagrams
ELECTRICAL DIAGRAMS FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual RFG-(L OR R)-IR-CE ... - Page 29 ELECTRICAL DIAGRAMS FD-6045-CE and FD-8645-CE Fire Deck Installation and Operation Manual TYPE 2 CONTROLLER-CE Type 2 Controller Temperature Controller Control Panel Type 2 Thermo TB4-R Couple TB4-Y Yellow TB3-2 5 orange TB3-5 pink TB4-P white TB4-8 4 brown TB3-4 6 yellow TB3-6 green Ground...
-
Page 30: Limited Warranty
In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�... - Page 31 Blank page M0042.13 JULY 2019...
- Page 32 WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166 www.woodstone-corp.com An ongoing program of product improvement may require us to change specifications without notice. M0042.13 JULY 2019...
