2.1.2

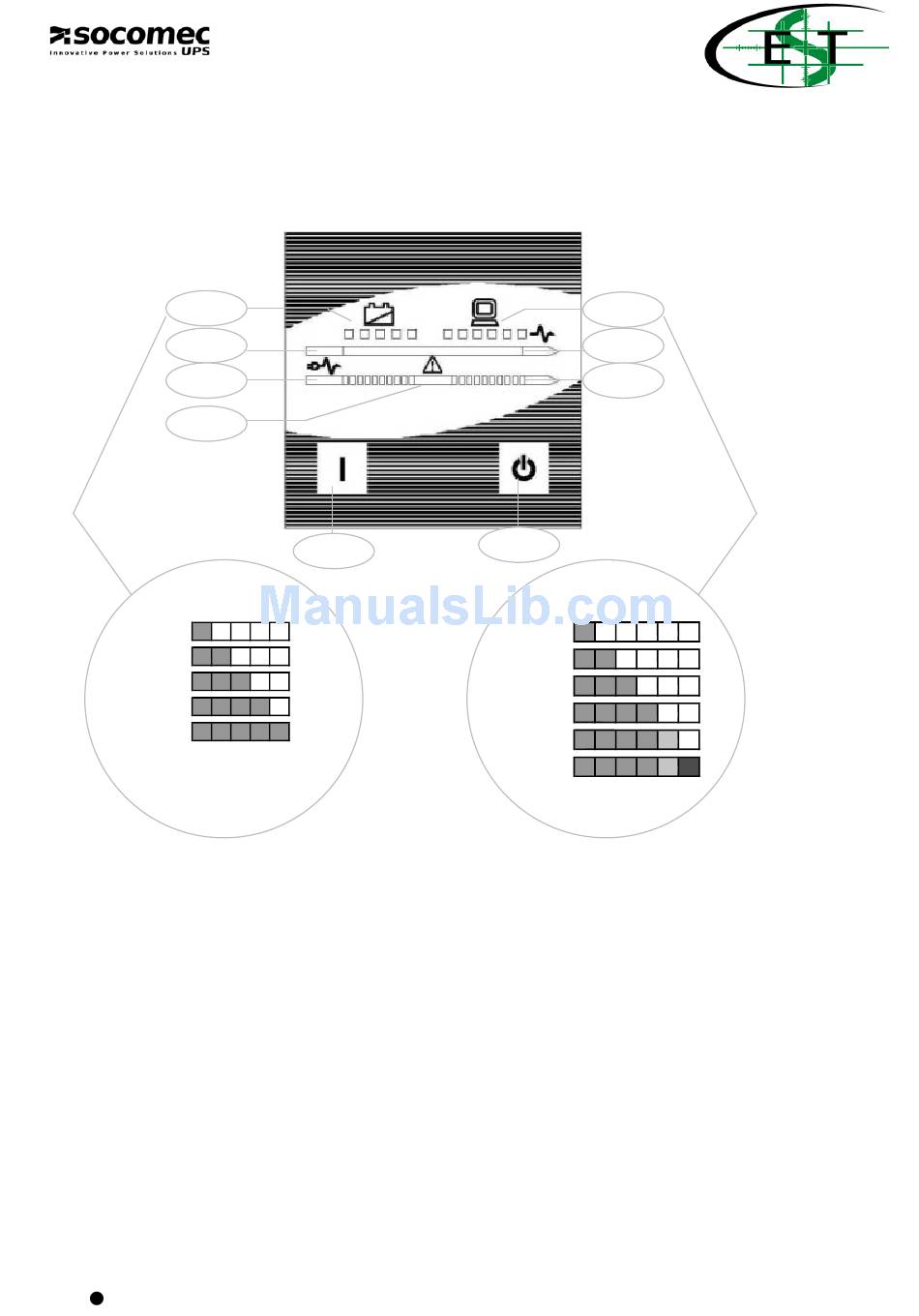

LED display and control panel

LED 1
LED 2
LED 3
LED 4
<35%
35-55%
55-75%
75-95%
95-100%
Key
ON
OFF
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
LED 7
6
SECTION 1
GENERAL DESCRIPTION
ON
On button (mute buzzer, reset alarms)
Off button (inverter OFF)
Battery capacity % LED bar
GREEN Mains up and regular
YELLOW Auxiliary mains present and regular (bypass line)
RED General alarm (stop or failure)
Delivered power % LED bar
GREEN no-break output
YELLOW by-pass output
LED 5
LED 6
LED 7
OFF
<35%
35-55%
55-75%
75-95%
95-105%
>105%
