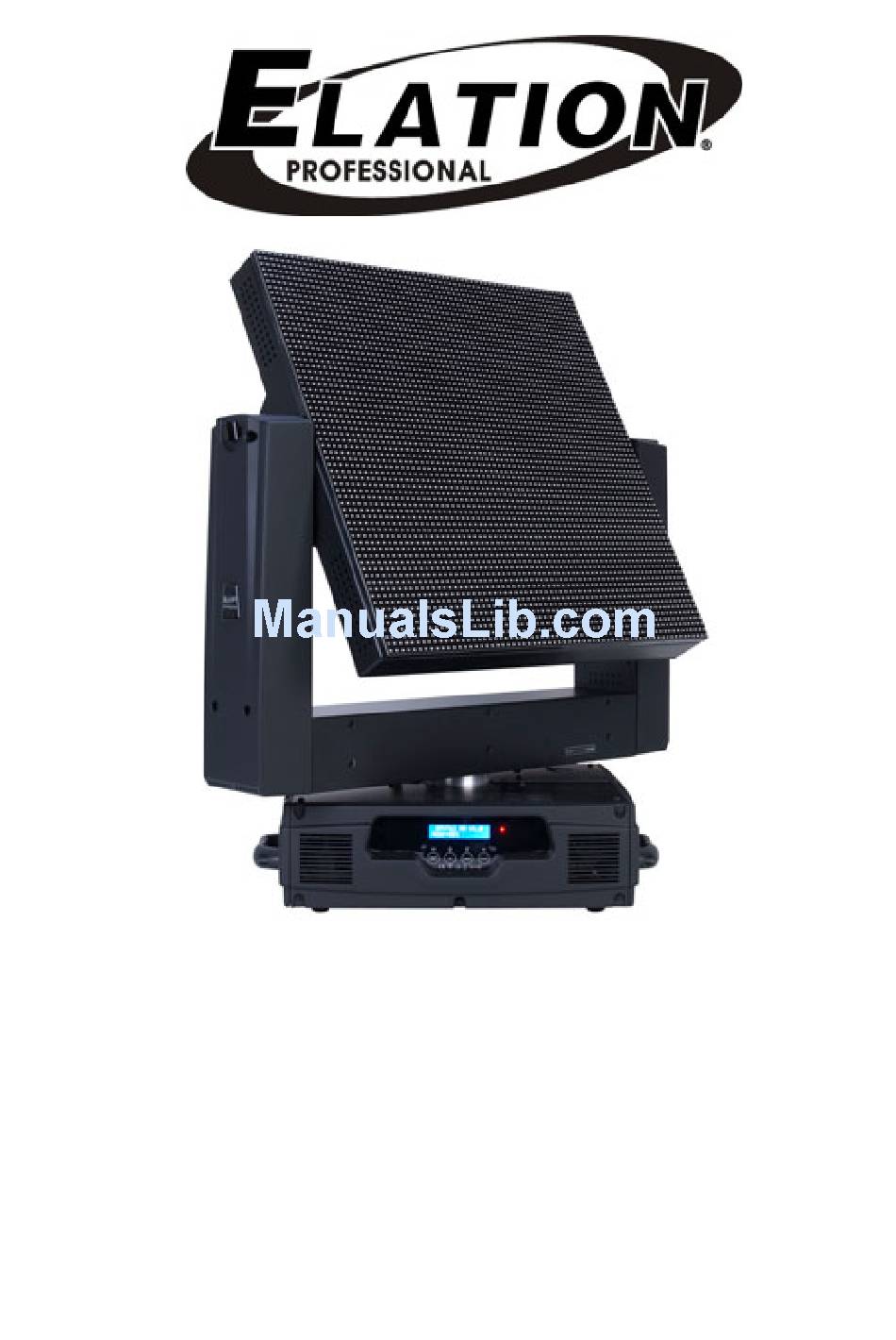

- Page 1 EPV762 MH Elation Professional 6122 S Eastern Ave Los Angeles, Ca 90040 www.elationlighting.com...
-
Page 2: Table Of Contents
Contents 1. Introduction……………………………………………………………………………………………………………..…….1 1.1. Brief Instruction …………………………………………………………………………………….…………….1 1.2. Package Accessories…………………………………………………………………….……………………….1 2. Features………………………………………..……………………………………………..…………….………………….1 3.TECHNICAL SPECIFICATIONS…………………………………….………………..……….……………………….2 4 .Overview ………………………………………………………………………………………………………………………. 3 5 .Safety Info …………………………………………………………………………………………………………………… 4 5.1. Important Safety Caution………………………………………………………………………………….. 4 5.2. GENERAL GUIDELINES………………………………………………………………………….…………… 4 6 .Installation Instruction………………………………………………………………………………………………….. 5 7 . DMX-512 control connection……………………………………………………………………………………….. 6 8 .Connection of PC and Controller……………………………………………………………………………………... - Page 3 17.4. Set property of Video files………………………………………………………..…………..…………. 36 18．Table display ………………………………………………………………………………………………….………….. 36 18.1. New multimedia window.………………………………………………………………………………..36 18.2. Set multimedia window ……………………………………………………………………………………. 36 18.3. Insert & Edit table……………………………………………..…………………………………………….. 36 19．Web display ………………………………………………………………………………………………….………….. 38 19.1. New multimedia window.………………………………………………………………………………... 38 19.2. Set multimedia window …………………………………………………………………………………… 39 19.3.
- Page 4 28.3. Edit time repertoire……………………………………………………………………………………………. 60 28.4. Delet time repertoire……………………………………..………………………….……………….……. 60 28.5. Start time repertoire…………………………………………………….……………………………………. 60 28.6. Exit…………………………………………………..………………………………………….……………….……. 60 29．Environment Monitoring ………………………………………………………………….………..….………….. 61 29.1. Open Brightness Control Repertoire.………………………………………………………………... 61 29.2. New brightness control repertoire ……………………………………………………….………… 61 29.3. Edit brightness control repertoire………………………………………………..…………………. 62 29.4.
-
Page 5: Introduction
1. Introduction 1．1 Brief Instruction Thank you for having chosen this professional LED lighting. You will see you have acquired a powerful and versatile device. For your own safety and utilize all wonderful functions of our LED screen, please read this user manual carefully before installing the device. -
Page 6: Technical Specifications
3. TECHNICAL SPECIFICATIONS Pixels Placing：7.62MM Pixels Density：17222dots/m2 View Angle：H145°/V110° Video Output：DVI Power supply：AC 100-240V~, 50/60Hz Power consumption：320W Unit Size：488 x 488mm Net weight：24KG/ screen 4. Overview... -
Page 7: Safety Info
1）LCD Display 2）Mode/esc Button 3）Menu UP Button 4）Menu DOWN Button 5）Enter Button 6）Microphone 7）5-Pin DMX in 8）5-Pin DMX out 9）3-Pin DMX in 10）3-Pin DMX out 11) Power in 12) Fuse 13）Signal out 14）Signal in 15) Carrying handle 16) LED CURTAIN 17）Yoke 5. -
Page 8: General Guidelines
This LED CURTAIN has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. ... -
Page 9: Installation Instruction
6. Installation Instruction a). The operating temperature of this device is -15 C ~ 50 C and moisture within 10%~95%, please use the device not exceed this range. b). The installation of the effect has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. -
Page 10: Dmx-512 Control Connection
Notice: this step is quite important to ensure that the fixture will not drop out by the damage of the clamp. 7. DMX-512 control and signal connection DMX-512 control connection Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. -
Page 11: Connection Of Pc And Controller
8. Connection of PC and Controller Connect the video display controller and PC DVI connector with DVI cable, then connect controller to PC USB connector with USB cable, controller’s output cable connect to vertical input of LED screen, see following picture: A. -
Page 12: Control Board
11. Control Board There are four keys on the control panel , which could be used to set the address, turn ON/OFF, operating the program and reset. [Mode/Esc] press this key to enter into edit mode. Press this key under the edit mode if you want to return to previous menu. -
Page 13: Dmx Address Setting
Select Programs Auto Pro Part 1 Auto Pro Part 1 Auto Pro Part 1 Program 1 ~ 10 Program 1 Program 1 ~ 10 Program 1 Program 1 ~ 10 Program 1 Program 1 ~ 10 Program 1 Select programs to be run Auto Pro Part 2 Auto Pro Part 2 Auto Pro Part 2... -
Page 14: Software Version
Information Time information Current Time With this function, you can display the temporary running time of the device from the last power on. The display shows “XXXX”, “XXXX” stands for the number of hours. The counter is resetted after turning the device off. Total Run Time With this function, you can display the running time of the device. - Page 15 starting address is set. Hold If No DMX With this function, when the drive is not DMX signal, it runs automatism, close, hold and music, the default is hold. Pan Reverse With this function you can reverse the Pan-movement. Tilt Reverse With this function you can reverse the Tilt-movement.
- Page 16 Edit program Select program With this function, you can select the program for the Program Run. Edit program With this function, you can edit the internal programs. Edit scenes With this function, you can edit the scenes of the internal programs. Auto scenes rec.
- Page 17 • Press the Mode/Esc button in order to return to the main menu. 3. Program selection for Auto Pro Part • Select “Edit program” by turning the encoder. • Press the Enter button to confirm. • Select “Select programs” by turning the encoder. •...
-
Page 18: Instructions On Use
12. INSTRUCTIONS ON USE: DMX channel´s functions and their values (6 DMX channels): DMX channel´s functions and their values (6 DMX channels): DMX channel´s functions and their values (6 DMX channels): Channel Value Function PAN Movement 8bit : ... -
Page 19: Software Fractional Introduce
When you turn on the fixture, it will make a reset at first. The display may show “Err channel is XX” while there are problems with one or more channels. “XX” stands for channel 1, 3, 5,etc who has the testing sensor for positioning.For example, when the display shows “Err channel is Pan”, it means there is some error in channel 1. -
Page 20: Operating Environment
13.2 Operating environment Operating System Windows2000/ XP Chinese and English Hardware CPU: Celeron 2.4G or higher Memory: 1G or higher Display card: 32M or higher Related Software Video Decoder--compulsory Microsoft Media player--compulsory OFFICE2000—in case of *.doc files RealPlayer—in case of RM or RMVB files 13.3 Install It is simple to install the <LED Manager 2010>... -
Page 21: 14．Use Details
as Fig.2-3 shows. 14. Use details 14.1 Program composition Program (program files) includes one or more episode. And there are two kinds of episode: normal episode and instant messaging programs. The former is the main component of program, which can have more than one and be played in order; the latter is only one which will be cycle played during the whole process, it is used to play a fixed content. - Page 22 14.2.1 Play Window Play window (The contents are displayed on the LED screen) is used to play the text, images, animation, multimedia clips and other content the user want to. Here's the content coincides with what the LED screen shows. This software supports play windows, up to 99 maximally, that means one computer can control the 99 pieces of display screen.
-
Page 23: Feature Detail
14.3 Feature detail 14.3.1 Menu Function menu contains seven sub-menus： <Files>, <Edit>, <New>, <Material>, <Setting>, <Tool>, and <Help>. <File>: as shown in Fig. 3-4, including <New Project>, <Open Project>, <Save Project>, < Save Project As>, <Project Full Save>, <Save the Default > and < Exit>. Fig 3-4 ... - Page 24 Copy: Used to copy an episode or multimedia windows. Paste: Paste an episode or multimedia windows. Move up: Move up an episode or the position of multimedia window. Only can move on the same level, not move over level ...
- Page 25 Fig.3-7 Brightness / Contrast / Color Temperature: used to adjust the screen brightness, contrast, color temperature (see "21.1 Setting Brightness / contrast / color temperature"). Screen Location Settings: used to set the LED screen location (see Chapter 21.1 to set the position of LED screen).
- Page 26 Fig. 3-9 Screen Test: used to test the display screen effect. Click and pop up a text box to shut up current play window. Then right click the mouse button in the player window, do the appropriate testing according to the need, as shown in Fig.3-10.
- Page 27 14.3.3 Edit area It is the core of this software; see the next section-program production process, for details. 14.4 Program production process 14.4.1 Step 1: Set the size of Play Window Fig.3-13 The size of Play window must be set correctly, otherwise the program may only display a part because the play windows is not big enough.
- Page 28 14.4.3 Step Three: Set the options of episode As Fig.3-15 shows, the options of episodes includes <Name>, <Play Option>, <Timer/ Plays>, and <Background Music>. Fig.3-15 14.4.4 Step Four: New Multimedia window Episodes are only a framework; it contains any number of multimedia windows. Click the button <New >...
- Page 29 Name: the name of the multimedia window, it will appear in the left directory editor column, as on the left menu bar shown Fig. 3-17. Left, Top: the distance from the left frame of media window to the left frame of its play window;...
-
Page 30: 15．Text Display
Web display: used to display web pages. Temperature/Humidity Display: use to display the current environmental temperature and humidity. Instant Messaging: used to quick input a short text, such as notification letter. Screen Capture: used to record the current screen image inside the window. 14.4.7 Step Seven: Set property of multimedia material For each of the properties of multimedia material, we will point out in the later chapter. - Page 31 Fig. 4-1 15.1.4 Set a single line text The set interface window of <One-line text> shows as Fig. 4-2. Fig. 4-2 Font (set font): Set text attributes, including fonts, font, size, word width, spacing, color. Note: The text color and texture animation are mutually exclusive. Set the text color, texture animation need to set the <no mixing>, when setting text color, software automatically set texture animation to no mixing ...
-
Page 32: Play Multi-Line Window
15.2 Play multi-line text window Need to enter multiple lines of text information on the screen such as advertisements, notices, etc., can be achieved through multi-line text window. 15.2.1 New Multimedia Window Click button< > for a new multimedia window. 15.2.2 Set Multimedia Window Set multimedia window properties (see 3.4.5 Step five: multi-media window property). -
Page 33: Play Word/Excel
Animation, Times (animated time): the animation effect when the texts enter into the scene after the stop, and the time of text to stay in the scene. Clear (Clearance effect), Times (the clearance time): the animation effect of text out of the scene, and the time out of the scene. -
Page 34: 16．Image Display
Fig. 4-7 Name: The program's name, it will appear in the left directory editor column, shown as on the left menu bar of Fig. 4-7. Edit: Click the <Edit> button will pop up the original Word/Excel files convenient for editing. - Page 35 Fig. 5-1 Popup the<Image Viewing Window> shown as Fig. 5-2 and then select the pictures needed to play. Fig. 5-2 16.4 Set the property of the played image. The setting interface of the picture (Imager file) shown as Fig. 5-3. Fig.
-
Page 36: 17．Video Display
Fit Mode: the way of files fit with the Play Window. Action (Action effect), Times (action time): the display effect of the pictures when enter the scene, as well as the duration of the process. Animation, Speed (animated time): the animation effect when the text enters into the scene after the stop, and the time of text to stay in the scene. -
Page 37: 18．Table Display
Fig. 6-2 Name: The program's name, it will appear in the left directory editor column, shown as on the left menu bar of Fig. 6-2. File Path: shows the directory where video files. Click the button< > can replace the video. - Page 38 Fig. 7-1 Toolbar The button <Grid Color >:used to set the color of table line The button <Back Color >:used to set the color of background The button < merge (Merged Table) >:used to merge the table ...
-
Page 39: 19．Web Display
Merge/Cancel merge Select the <Cell> you want to merge, then right-click it and select<Merge Table> as Fig. 7-3 shows. Fig. 7-3 If want to cancel the merge, select the < cell> and right-click it, then select < Cancel Merge>... -
Page 40: Set Web Properties
Fig. 8-1 Key in what web address you want in the edit box and click OK, then multi-media window displays the address of the website. It is noteworthy that this software can only display simple pages. 19.4 Set Web property Set web property in the editing area of software as shown in the Fig. - Page 41 In the pop-up Database window, select a well-established database file, as shown in Fig. 9-2. Fig. 9-2 The control window after increasing the database shows as Fig. 9-3. Fig. 9-3 The above table is a database list, you can use the button <Delete >...
- Page 42 File Path: shows the directory where files. Click the button< > can replace the Word / Excel documents. Fit Mode: the way of files fit with the Play Window. Action (Action effect), Times (action time): the display effect of the pictures when enter the scene, as well as the duration of the process.
- Page 43 Fig. 9-6 Move up: move up the position of the selected key word and its column. Move down: move down the position of the selected key word and its column. Name: use to set the column name. ...
-
Page 44: New Multimedia Window
Fig.9-7 21. Time and date 21.1 New Multimedia Window Click the button< > for a new multimedia window. 21.2 Set Multimedia Window Set multimedia window properties (see 3.4.5 Step five: multi-media window property). 21.3 New date/ time Click the button < >... -
Page 45: Set Data/Time
Fig. 10-1 21.4 Set date/ time You can set the date / time in the software editor, as shown in Fig. 10-2. There are two clock modes - an analog clock and digital clock. There are the options in the < Display Style >... -
Page 46: New Multimedia Window
Digital Clock: Setting interface and display of analog clock are as shown in Fig. 10-3. Fig. 10-3 Name: The name of the program. Time difference: set the time difference compared to local time. Lead: the time difference ahead. Lag: time lag ... -
Page 47: Set External Program Window
Window> and select <External Program Window>, then the dialog box popup as Fig. 11-1shows. Select what program you want to open. Fig. 11-1 Sometimes the application program will have several windows; software will list all the windows to the window menu. For example, in this case, select the calculator application program carried with the Windows system, this program has two windows: Calculator window and CalcMsgPumpWnd window, as shown in Fig. -
Page 48: New Multimedia Window
23.1 New Multimedia Window Click the button< > for a new multimedia window. 23.2 Set Multimedia Window Set multimedia window properties (see 3.4.5 Step five: multi-media window property). 23.3 New timer Display Click the button < > and select<Time Display> → <Timer> or right-click <Multimedia Window>... -
Page 49: 24．Instant Messaging
24. Instant Messaging It is used to insert the instant messaging temporarily and urgently, when the screen is played. 24.1 New instant messaging Click the button < > and select <Instant messaging>, or right-click <Multimedia window>→<Instant messaging>, as Fig. 13-1 shows. Note: the instant messaging is universal, not a proprietary for some multi-media, and therefore only one can be created. -
Page 50: Play Instant Messaging
Text Mask: This feature is to make text transparent, while the background opaque. Back Anime (Background animations), Play (Play Counts): Text-background animation supports AVI format video and video play times. Plays (Set the font): Set text attributes, including fonts, size, word width, spacing, and color. - Page 51 click <Multimedia Window> and select<External Video>→<External Video Device>, as Fig. 14-1 shows. Fig. 14-1 Click【Settings】→“Video Input Settings”→ “Video Source Settings”, as Fig. 14-2 shows. The “video source settings” interface pops up. 图14-2 Select the “radio” option in the “video source settings” interface, click the “application” button, as Fig.
-
Page 52: 26．Flash Display
图14-4 Select "Cable TV Signal" or "Antenna TV Signal" in In the "parameters" interface, then you can select the channel to play television programs. 图14-5 26. Flash Display This software can play flash files, and moreover can make Flash effect text. 26.1Make Flash effect text 26.1.1 New FLASH effect text Click <... -
Page 53: Make Flash Effect Text
Fig. 15-1 26.1.2 Make Flash effect text The interface of Flash Effect Text as Fig. 15-2 shows, it includes the features of video clips, background selection, background effects, text editing, font effects, font interactive, sound playback. You can edit the Flash effect text upon need. If edit the half, you want to save the current progress of the work, please click the button <Save>... -
Page 54: Play Flash
Fig. 15-3 26.2 Play Flash 26.2.1 New Multimedia Window Click the button< > for a new multimedia window. 26.2.2 Set Multimedia Window Set multimedia window properties (see 3.4.5 Step five: multi-media window property). 26.2.3New Flash file Click the button < >... -
Page 55: New Screen Capture
File Path: shows the directory where the program is in the local computer. Click the button< > to replace flash files. Play Time: The program’s stop time in scene. 27. Screen Capture Screen capture function is to store the operations in the screen as AVI video. 27.1 New multimedia window Click the button<... -
Page 56: Set Screen Capture
27.4 Set Screen Capture Select a save path, the <video compression options> pop-up. Upon need, select the appropriate compression procedures and compression quality, and then click OK as Fig. 16-3 shows. As for general requirements for video recording, we recommend using the default settings as Fig. -
Page 57: Open Time Repertoire
28. Time Display 28.1 Open time repertoire Click <Settings> in the menu and select the button <Time Repertoire> as Fig. 17-1, then start the Dialog box <Scheduled Command Table> as Fig. 17-2. Fig.17-1 Fig.17-2 28.2 New time repertoire 28.2.1 Step One: Open the Dialog Box < Scheduled Command Table > Click the button <Add>... - Page 58 Fig. 17-3 28.2.2 Step Two: Set < Scheduled Command > Order content: Select the implementation of orders, the default is to display the option of large-screen contents. Screen number: Choose the number of the screen. Program file: when Directive content is only the Play Grogram, the option will be valid.
-
Page 59: Exit
28.3 Edit time order Select what orders need to edit in the time repertoire, and click the button <Edit> to open the dialog box <Time order> to edit orders. 28.4 Delete time order Select what orders need to delete in the time repertoire, and click the button <Delete>; if need delete all orders, click the button <... -
Page 60: New Brightness Control Repertoire
Fig. 18-2 29.2 New brightness control repertoire Map Relation of the illumination value and brightness of the LED screen in the Brightness Control Repertoire. 18.3 Edit brightness control repertoire Select what brightness orders needing to edit in the automatic brightness control repertoire, enter the new illumination value or brightness value, click the button <Update>, a new set of values will replace the original content. -
Page 61: Delete Brightness Control Repertoire
monitoring devices detect. 29.3 Open Brightness control repertoire Click the <Setting> in the menu and select <Brightness control repertoire> as Fig. 18-3 shows, the interface < Brightness control repertoire > pop up as Fig. 18-4 shows. Fig. 18-3 29.4 Delete brightness control repertoire Select what brightness orders needing to edit in the automatic brightness control repertoire, click the button <Delete>;... -
Page 62: 31．Hardware Setting
Fig.19-2 There are following functions to set in the software setting interface: Start automatically when Windows is running, Software runs automatically play, Auto Play and then minimize to the system tray icon, Show Mouse Cursor, Play Window Always on Top, Border width, sequential play upon display screen, timing off. -
Page 63: 32．Screen Control
and the file will lose when power off. Save to screen: Write the LED screen connect file into the hardware, and take effect when reset the system. Advance: Use in specific application. Exit: exit the interface. 32. Screen control 32.1 Set Brightness/Contrast/Color Temperature Click the <Setting>... -
Page 64: Set Screen Location
32.2 Set Screen Location Click the <Setting> in the menu and select < Screen Location Settings> as Fig. 21-3 shows; the interface < Set Screen Area > pops up as Fig. 21-4 shows. Fig. 21-3 Fig. 21-4 The interface <Set Screen Area> contains following parameters: Start X:Horizontal starting point Start Y:Vertical Starting Point Border width: Set the Border width of the display area. -
Page 65: Open Device Status
Fig. 21-5 System will stop outputting the display images, and the screen is close. Re-click will re- start screen, the screen will be open. Click the <Setting> in the menu and select < Freeze Screen > as Fig. 21-6 shows. Fig. -
Page 66: 34．View Environment Monitoring
Fig. 22-2 The area on the left of the top shows the status of the transmitting card, the area on the right shows the statue of the receiving cards. The area on the bottom shows some information. Start Detection: start to detect the statue of receiving cards. When it be pressed, the button turn to Stop Detection, when you press it, the detecting will stop. -
Page 67: Open Environment Monitoring
34.1 Open environment monitoring Click the <Setting> in the menu and select <Environment Monitoring> as Fig. 23-1 shows, the interface < Environment Monitoring > pop up as Fig. 23-2 shows. Fig. 23-1 Fig. 23-2 34.2 Set Environment monitoring factors Illumination (Illumination value): the system shows the value of the current environment. - Page 68 measuring range the same with the probes). Double click to change them, shown as Fig. 23-3. Fig.23-3 35. FAQ 1､ How to set the display effect of picture in picture?
- Page 69 Fig.24-1 Create a program episode 2) Create a multimedia window (window1) in this episode. Adjust the size of the window, and load a material file. 3) Create another multimedia window (window2) in this episode. Adjust the size of the window, and load a material file. 4) The window 2 will superimposed on the window 1, this is the display effect of picture in picture, shown as Fig.24-1.
- Page 70 Fig.24-4 Select the multimedia window in the left part of the interface, and click the “transparent” items in the right of the interface, as shown in Fig.24-3. 4､ How to lock the row / column of custom table. Select the custom table in the left part of the interface, you can input the number of locked row / column in the right of the interface, as shown in Fig.24-5.
- Page 71 lines text. 9、How to lock screen position? See chapter 21.2 set screen position 10、 Set screen area and play window area. Set screen area: It shows the area that LED screen display. Click Setting→Screen Location Setting. Screen area border consist Inner frame border and External frame border. External frame border only displays on the monitor and can be set as one to ten pixels width.
- Page 72 playlists.
