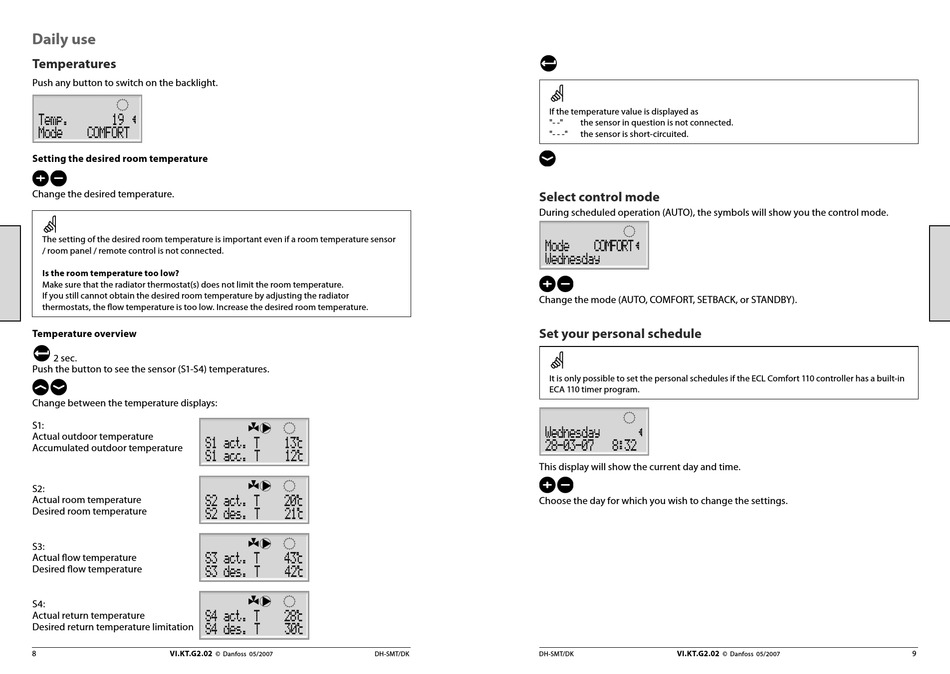

Daily use
Temperatures
Push any button to switch on the backlight.
������ � ����
����� � �������
Setting the desired room temperature
Change the desired temperature.
The setting of the desired room temperature is important even if a room temperature sensor
/ room panel / remote control is not connected.
Is the room temperature too low?
Make sure that the radiator thermostat(s) does not limit the room temperature.
If you still cannot obtain the desired room temperature by adjusting the radiator
thermostats, the flow temperature is too low. Increase the desired room temperature.
Temperature overview
2 sec.
Push the button to see the sensor (S1-S4) temperatures.
Change between the temperature displays:
S1:
Actual outdoor temperature
���������� ����
Accumulated outdoor temperature
��������� � � ����
S2:
���������� ����
Actual room temperature
Desired room temperature ��������� � � ����
S3:
���������� ����
Actual flow temperature
Desired flow temperature ��������� � � ����
S4:
���������� ����
Actual return temperature
Desired return temperature limitation ��������� � � ����
8 VI.KT.G2.02
© Danfoss 05/2007 DH-SMT/DK
If the temperature value is displayed as
"- -" the sensor in question is not connected.
"- - -" the sensor is short-circuited.
Select control mode
During scheduled operation (AUTO), the symbols will show you the control mode.
����� � ��������
���������
Change the mode (AUTO, COMFORT, SETBACK, or STANDBY).
Set your personal schedule
It is only possible to set the personal schedules if the ECL Comfort 110 controller has a built-in
ECA 110 timer program.
����������������
��������� � ������
This display will show the current day and time.
Choose the day for which you wish to change the settings.
VI.KT.G2.02
DH-SMT/DK © Danfoss 05/2007
9
