Summary of Contents for Danfoss CDS203 LCP

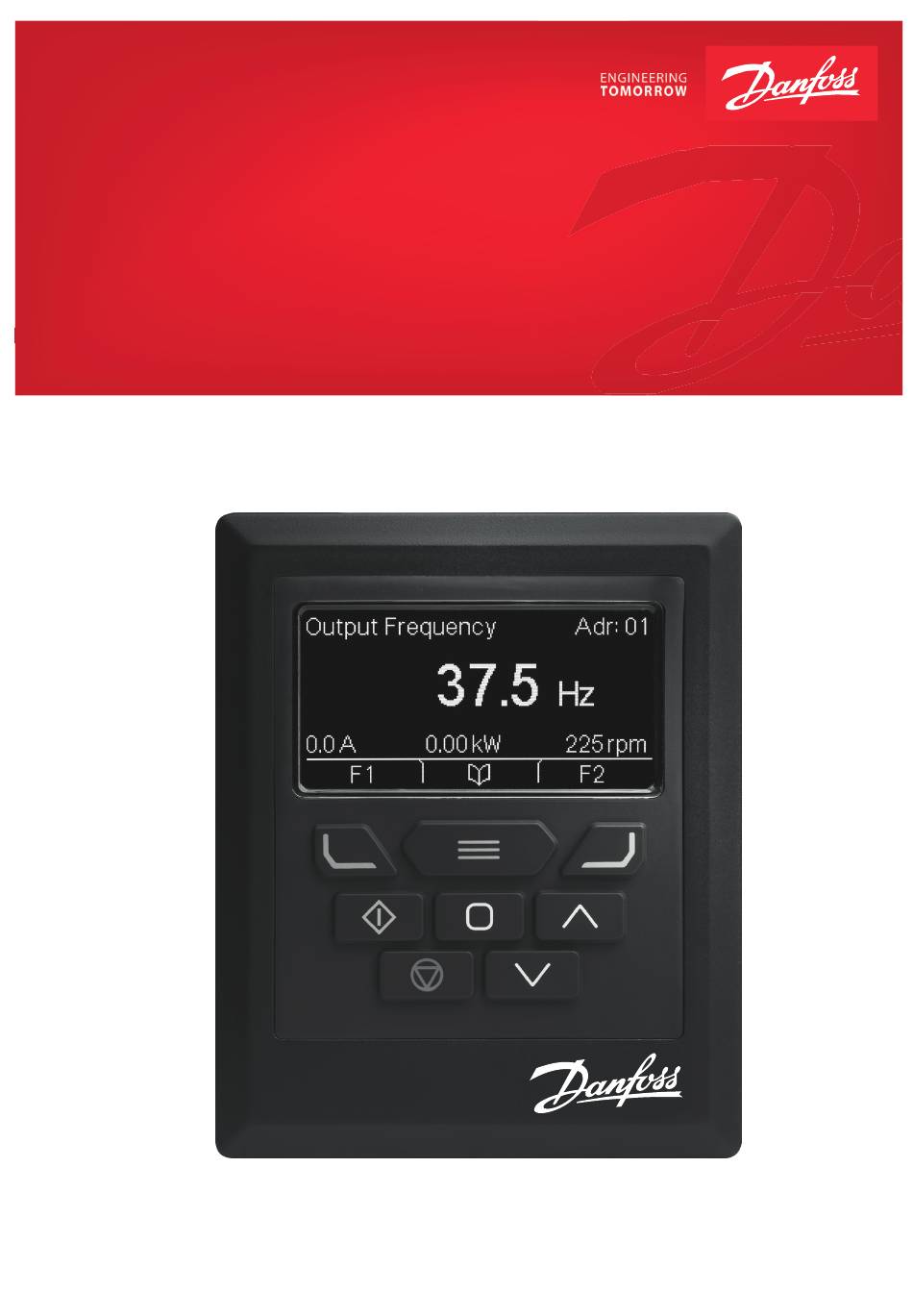

- Page 1 User Guide Danfoss CDS203 LCP 116B9002 Operating Instructions http://cc.danfoss.com...
- Page 2 Max Cable Length: 25m / 82.5ft shielded twisted pair Mechanical Installation Dimensions Through Panel Mount The panel on to which the CDS203 LCP is to be mounted should be cut out in accordance with the diagram below. 1 10mm 100mm 102mm...
- Page 3 Easy Startup To setup drive communication address By default, the CDS203 LCP will try to communicate with the drive that has Address 31 in the network after powering up for the rst time. The CDS203 LCP will display “Scanning for Drive 31. ” after power up, which indicates that the CDS203 LCP is searching for the drive with the correct drive address in the network.
- Page 4 Display will show menu. display. the maximum and Display will show minimum possible the present settings on the parameter value lower line of the on the lower line of display. the display. www.danfoss.com 4 | CDS203 LCP Remote keypad User Guide...
-
Page 5: Auto Tuning
Indicates an Overload Switching frequency is The incoming mains condition. Output current reduced, due to high heatsink power supply has been exceeds the motor rated temperature. disconnected or is missing. current. www.danfoss.com CDS203 LCP Remote keypad User Guide | 5... - Page 6 Drive Fault Messages and Trip Codes See CDS203 User Guide for further information Further Status Messages and Troubleshooting CDS203 LCP uses various display messages to indicate di erent working status. See the following table for more information. Status Messages Message...
- Page 7 Operating Instructions www.danfoss.com CDS203 LCP Remote keypad User Guide | 7...
- Page 8 Ñ82-OPTFT-IN_V2.01lÓ 82-OPTFT-IN_V2.01...
