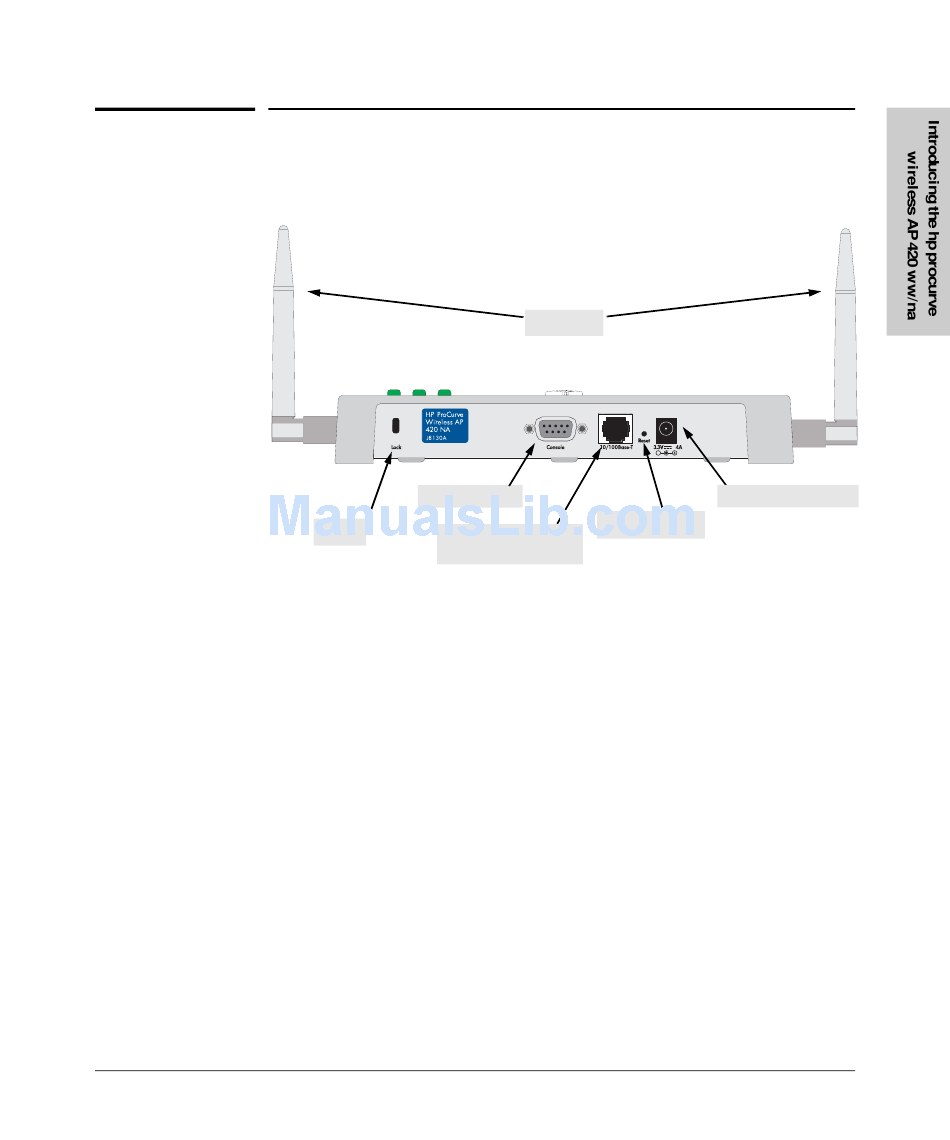

Back of the Access Point

Back of the Access Point
hp procurve wireless AP 420 ww/na

Antennas

Console Port DC power connector
Reset buttons
Lock
10/100Base-TX RJ-45
port and PoE Input
Antennas
The access point includes two antennas for wireless communications. The
outbound signal transmitted from both antennas is identical, but only the best
inbound signal received on one of the antennas is used. The antennas transmit
the outgoing signal as a toroidal sphere, so the antennas should be adjusted
to different angles to provide better coverage. For further information on
positioning the antennas, see "Position the Antennas on the Access Point" on
page 2-10.
Lock
The access point includes a Kensington security slot on the rear panel, marked
"Lock". You can prevent unauthorized removal the access point by wrapping
the Kensington security cable (not provided) around an unmoveable object,
inserting the lock into the slot, and turning the key.
