1.2 Cascade Manager Units
(150Product Code 96.30000-7184)
(225 Product Code 96.30000-7185)
The Cascade Manager Unit is supplied without an integral low loss header.
A suitably sized low loss header must be installed within the system.
The system's (Secondary) circulating pumps (Heating / HWS) are to be connected
(hydraulically) to the external low loss header and not to the appliances flow and
return connections.
The Cascade Manager Unit is supplied complete with an integral RVS43 143multiple
unit Cascade Manager. Remote Flow and Return sensors (QAD36) must be mounted
as indicated in the hydraulic diagram section of manual and wired back the unit. An
outside are sensor (QAC34) is also supplied and located in the base of the unit.

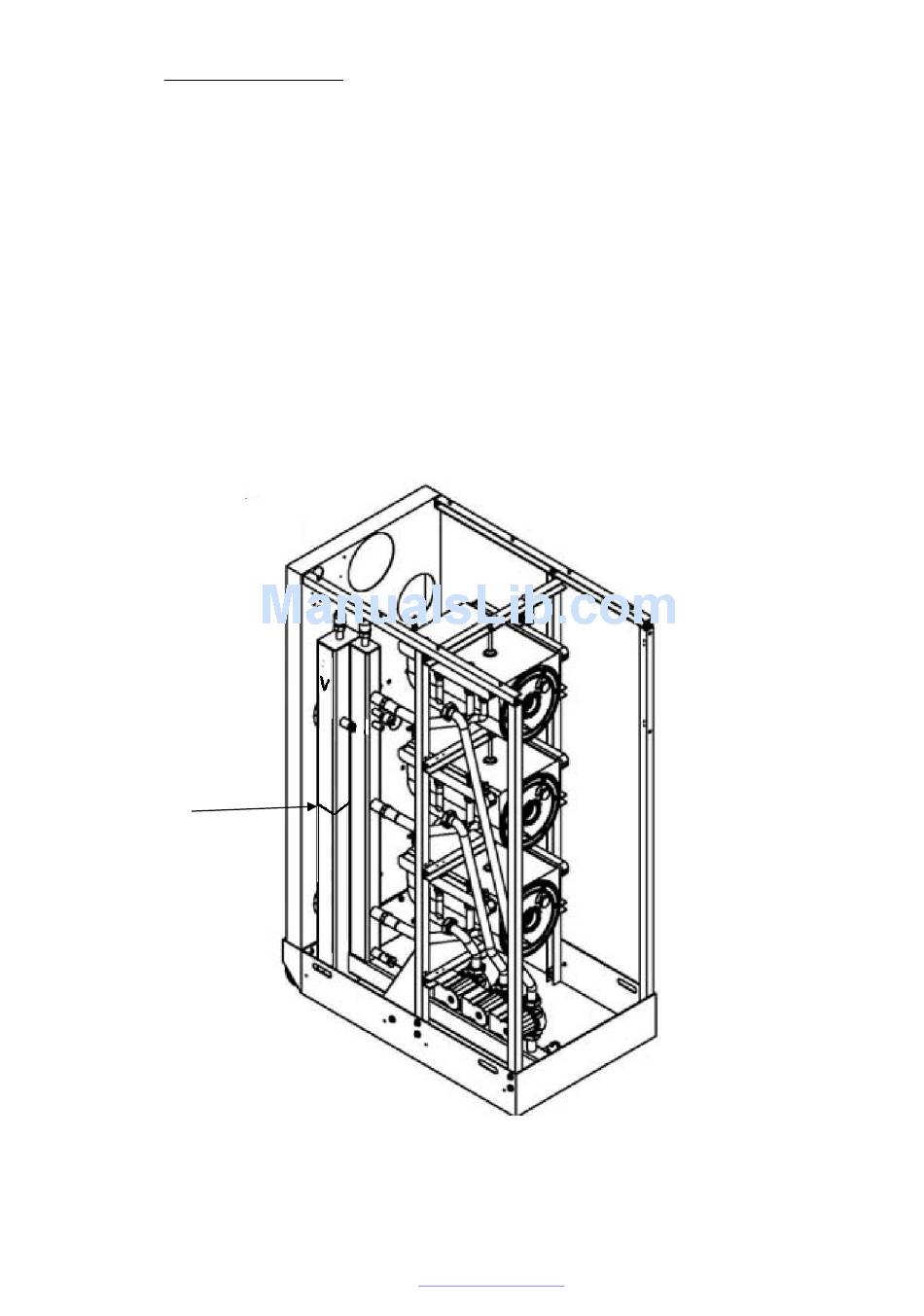

Integral
Distribution
Header.
