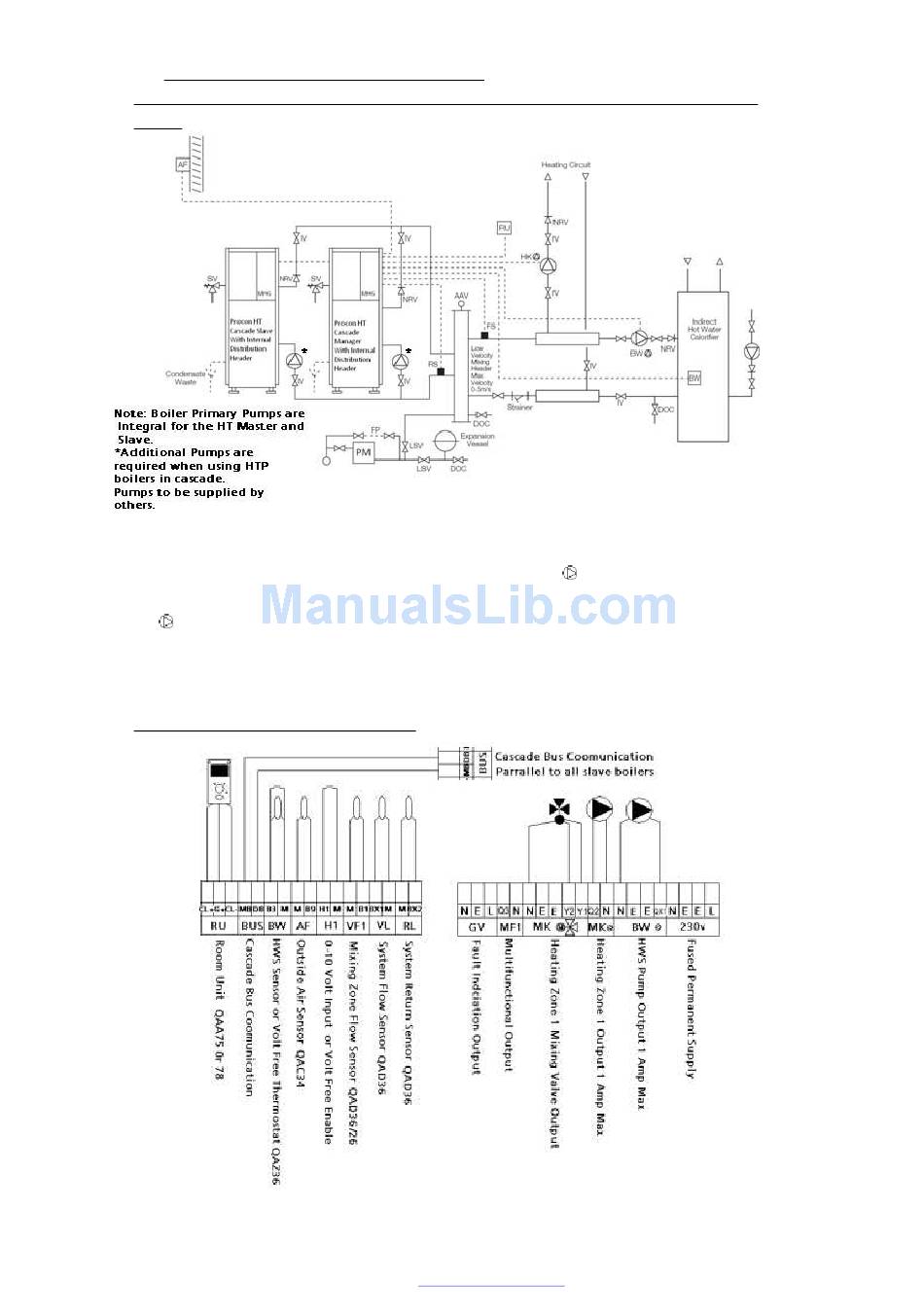

8.1 Hydraulic Design Cascade Units (HT Only)
(Additional Boiler circuit circulating pumps are required when using multiple HTP
units.)
Legend
AF Outside Air Sensor (QAC34)
BW Hot Water Sensor(QAZ36) or VF Thermostat PM
BW Hot Water Primary Pump
FP System Filling (Approved)
RS Return Sensor
Electrical Connections Cascade Units
If Direct On Boiler Weather Compensation is not required a 3000 Ohm Resistor must be applied to the AF terminals to remove the E10 Error Code from the RVS43 143
Addition control and hydraulic configurations are possible.
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
P:0845 6448802 F:0845 6448803
© MHG Heating Ltd
HK
RU
FS
Cascade Manager LPB Network.
E:info@mhgheating.co.uk
010617
Heating Circuit Pump
System Pressure Manager
Room Unit (QAA), BMS etc
Flow Sensor
W: www.mhgheating.co.uk
17
