1.4 System Separation Plate Heat Exchanger Units
(150 Product Code 96.30000-7325)
(225 Product Code 96.30000-7326)
The System Separation Plate Heat Exchanger Unit are supplied with an integral plate
heat exchanger that maintains absolute separation of the boilers circuit from the
systems circuit.
These units may require the installation of a second low loss header remote from the
appliance. Alternatively the system's (Secondary) circulating pumps (Heating / HWS)
can be connected (hydraulically) to the appliances flow and return connections.
The System Separation Plate Heat Exchanger Unit is supplied complete with an
integral RVS43 143 Single Unit Cascade Manager wired to integral flow and return
sensors (QAZ36). An outside are sensor (QAC34) is also supplied and located in the
base of the unit.

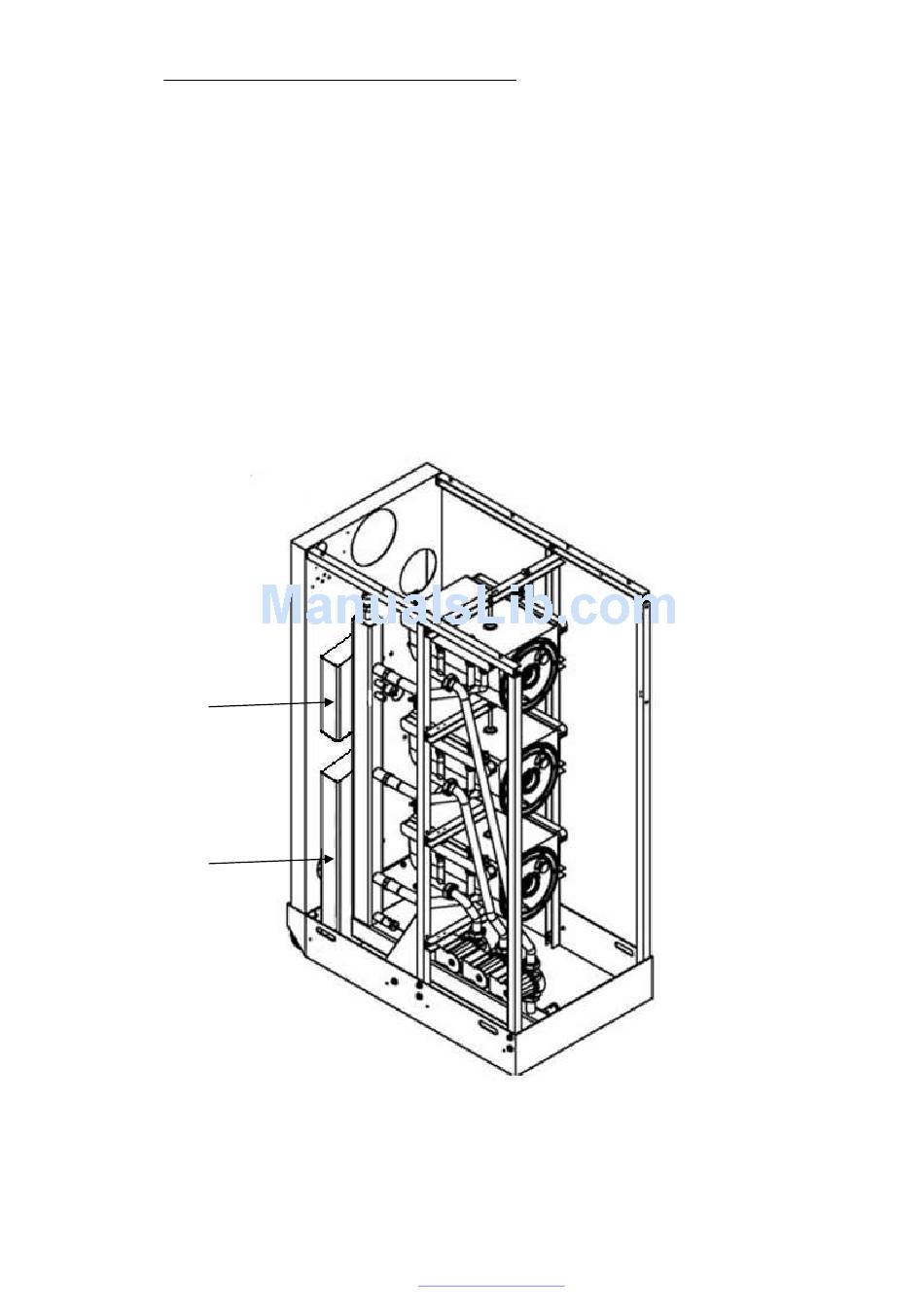

Integral Pressure
Vessel
Integral System
Separation Plate
Heat Exchanger
