1.2 Cascade Manager Units
(150 Product Code 96.30000-7184)
(225 Product Code 96.30000-7185)
The Cascade Manager Unit is supplied without an integral low loss header.
A suitably sized low loss header must be installed within the system.
The system's (Secondary) circulating pumps (Heating / HWS) are to be connected
(hydraulically) to the external low loss header and not to the appliances flow and return
connections.
The Cascade Manager Unit is supplied complete with an integral RVA47 multiple unit
Cascade Manager. Remote Flow and Return sensors (QAD21) must be mounted as
indicated in the hydraulic diagram section of manual and wired back the unit. An
outside are sensor (QAC32) is also supplied and located in the base of the unit.

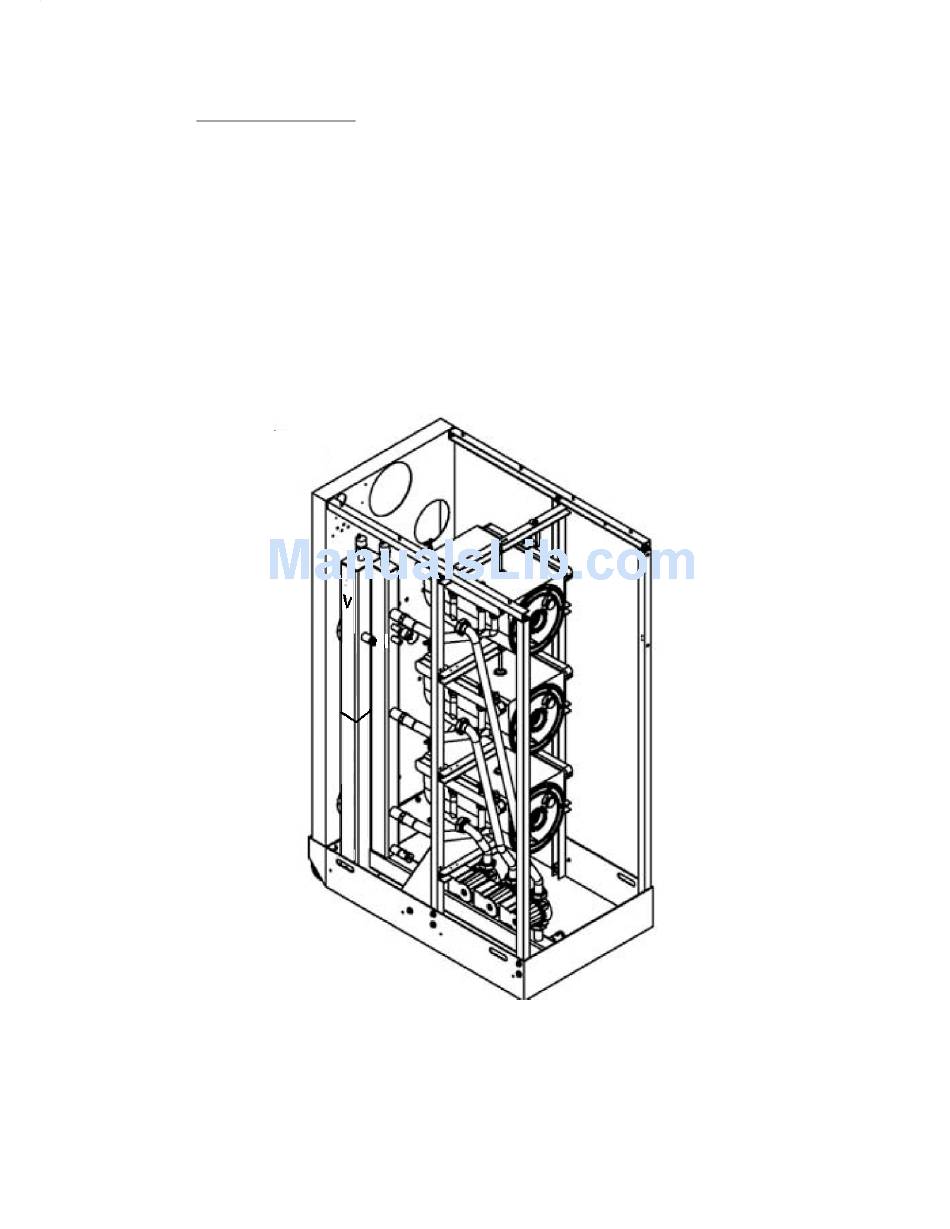

Integral
Distribution
Header.
