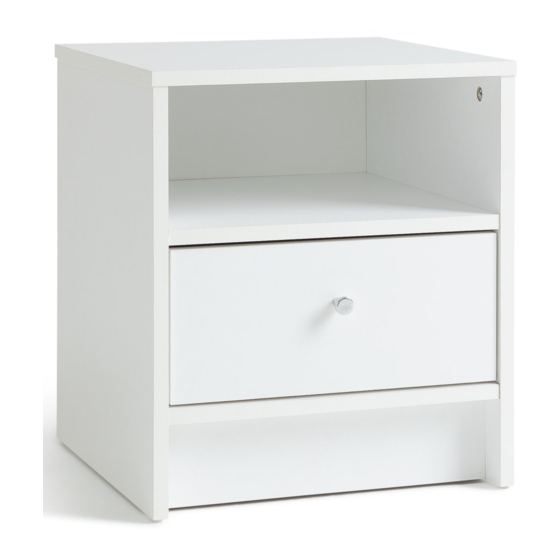

Adult Malibu - Single Bedside
Assembly Instructions -
More help is available throughout this booklet by scanning
Dimensions
Width - 38.3cm
Depth - 39.6cm
Height - 44.6cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Please keep for future reference
in the QR codes or typing in the links
C R
532/9717
555/1231
565/5814
565/6291
553/2803
MADE IN
BRITAIN
Issue 2 - 24/05/16
Advertisement
Related Manuals for Argos Adult Malibu 532/9717
Summary of Contents for Argos Adult Malibu 532/9717
- Page 1 Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928.
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 10kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 Components - Panels If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020...
- Page 4 Components - Fittings If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly.
- Page 5 Assembly Instructions Step 1 Prepare the drawer sides Insert a large locking cam nut into the left drawer side . and the right drawer side Note: The arrow on the locking cam nut must point towards the hole in the end of the panel.
- Page 6 Assembly Instructions Step 3 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 4 Fit the drawer back Fit the drawer back between the drawer sides 9 10 Make sure that the...
- Page 7 Assembly Instructions Step 6 Fit the wedgefixes Turn the drawer assembly over and slide 2 wedgefixes into the front and back grooves, as shown, and tighten up the screws. Important: Make sure that the drawer assembly is square before fitting the wedgefixes.
- Page 8 Assembly Instructions Fixing Bottom Mounter Runners Step 8 https://www.youtube.com/watch?v=Z6lGMy19h7Q Prepare the left side Fit the CL runner screw to the left side The 1st screw uses the 1st hole in from the front of the runner. The 2nd and 3rd screws Finished use the holes that line front edge...
- Page 9 Assembly Instructions Step 9 Prepare the right side screw Fit the CR runner to the right side The 1st screw uses the 1st hole in from the front of the runner. The 2nd and 3rd screws use the holes that line up with the other panel Finished holes.
- Page 10 Assembly Instructions Step 10 Prepare the shelf Insert 4 large locking cam nuts into the shelf Push 4 of the quickfit dowels as far as they Finished will go into the shelf front edge Tap 4 wooden dowels into the shelf Carcase Assembly Step 11 https://www.youtube.com/watch?v=9C7tgv5xnbE...
- Page 11 Assembly Instructions Step 14 Prepare the plinth Insert 2 large locking cam nuts into the plinth Push 2 of the quickfit dowels as far as they will go into the plinth Tap 2 wooden dowels into the plinth Step 15 Fit the plinth Push the plinth down...
- Page 12 Assembly Instructions Step 17 Fit the back rail Push the back rail down onto the left side Turn the large locking cam nut clockwise as far as they will go to secure the panels. Important: Make sure there is no gap between the fitted panels.
- Page 13 Assembly Instructions Step 20 Squaring up a Chest and tting the Back Panel www.youtube.com/watch?v=FeaI6541z7o Fit the back Carefully lay the unit The measurement from top corner X to bottom corner X must be down onto its front equal to the measurement from top corner Y to bottom corner Y edges for this step.
- Page 14 Side panel Drawer If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020...
- Page 16 ALR3316...
