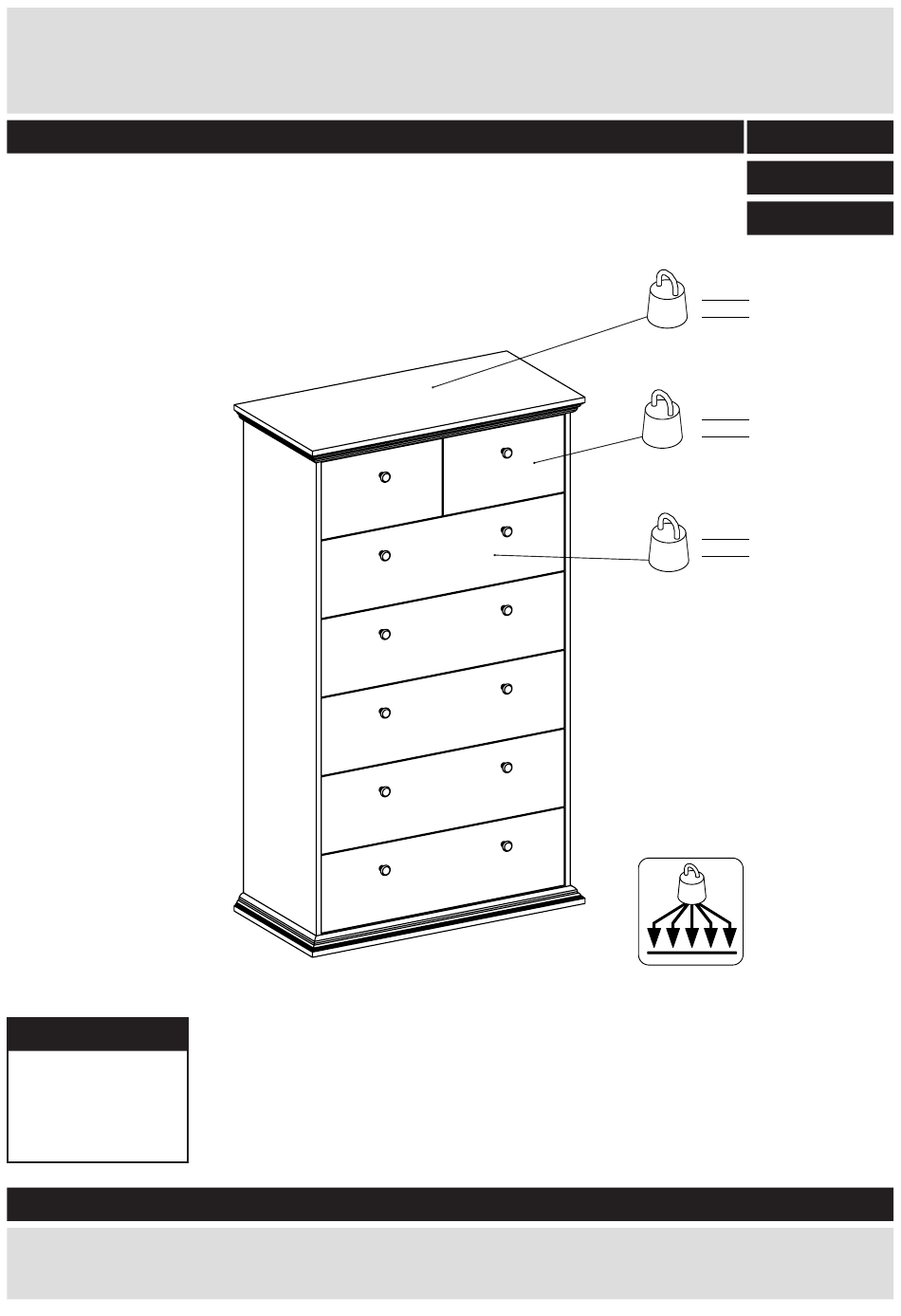

Canterbury 5+2 CHEST
Assembly Instructions
Dimensions
Width - 84.3cm
Depth - 41.9cm
Height - 144.5cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0845 6400800
- Please keep for future reference
517/0571
509/4334
476/9086
25 Kg
55 lbs
5 Kg
11 lbs
9 Kg
20 lbs
max
71932 Version A Date 09/11/2015
Advertisement
Related Manuals for Argos Canterbury 517/0571
Summary of Contents for Argos Canterbury 517/0571
- Page 1 Width - 84.3cm Depth - 41.9cm Height - 144.5cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0845 6400800 71932 Version A Date 09/11/2015...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly, do not stand • We do not components and tools listed on or put weight on the product, recommend the use the following pages.
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0845 6400800 Please check you have all the panels listed below A 00489 Left drawer side (34.5 x 14cm) x7 B 00488 Right drawer side P 06056 Drawer bottom (34.5 x 14cm ) x7...
-
Page 4: Tools Required
Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 10401 11011 17414 Panel clips x8 Tape dots x1 Drawer support x14 20203... - Page 5 Assembly Instructions Step 1 Fittings you will need for this step: Insert dowles Dowel # 31687 X10 # 20203 X10 Insert dowels 20203 into outer holes on the ends of side panel FY and divider panel G . Place cam 31687 into the holes on top of side panel FY and divider panel G .
- Page 6 Assembly Instructions Step 3 Fittings you will need for this step: Place drawer runners Flat head screw Flat head screw Drawer runner # 26020 X24 # 25233 X12 # 41435 X12 Extend drawer glide 41435 . Place flat head screw 26020 through the correct holes at the back of the drawer glide, into the holes on the side...
- Page 7 Assembly Instructions Step 4 Attaching drawer run- Fittings you will need for this step: ners Drawer runner Flat head screw Flat head screw # # 41435 X2 # 26020 X4 # 25233 X2 Extend drawer glide 41435 . Place flat head screw 26020 through the correct holes at the back of the drawer glide,...
- Page 8 Assembly Instructions Step 6 Attaching back panel Slide the back panel S smoothly down into the grooves in the side and bottom panel FY + IA . Step 7 Attaching divider panel Press down divider panel G towards the top panel LA .
- Page 9 Assembly Instructions Step 8 Attaching top panel Place the cam bolts from top panel LA into the end holes on side panel FY . Tighten cams. Step 9 Fittings you will need for this step: Gathering profiles Wedges # 33204 X4 Insert wedges 33204 into slots on the angle ends of side and front...
- Page 10 Assembly Instructions Step 10 Fittings you will need for this step: Gathering profiles to cabinet Flat head screw # 26033 X7 Push the profile down as it reaches the bottom panel IA . Use flat head screw 26033 to tighten. Step 11 Fittings you will need for this step: Gathering profiles...
- Page 11 Assembly Instructions Step 12 Fittings you will need for this step: Gathering profiles to Glue # 22601 X1 cabinet Add glue 22601 in holes of the top panel LA . Place the gathering profile as shown and press down (dowels into holes).
- Page 12 Assembly Instructions Step 14 Attaching base rail Turn cabinet around standing on bottom panel IA . Take off paper from tape dots. Place the base rail behind the gathering profile (push forward as shown with the arrow). Step 15 Fittings you will need for this step: Attaching stabilizer Flat head screw Stabilizer...
- Page 13 Assembly Instructions Step 16 Fittings you will need for this step: Attaching back panels Panel clips # 10401 X8 Important: The unit MUST be square when the panel clips is attached. Lay face down the cabinet on the floor. To stabilize the back panel, use the panel clips 10401 .
- Page 14 Assembly Instructions Step 18 Fittings you will need for this step: Fix unit to wall with strap Strap # 94009 X2 94009 The screw supplied together with the anti-topple bracket is to be used only for fixing the anti-topple bracket to the furniture.
- Page 15 Assembly Instructions Step 20 Fittings you will need for this step: Attaching drawer Screw # 20228 X28 Align holes at back of the drawer sides A + B with the holes on the drawer back D and C . Make sure the groove is facing inside of the drawer.
- Page 16 Assembly Instructions Step 22 Attaching drawer front Attach the drawer front EE and EF by placing dowels and cam bolt in the correct holes. See the detail drawing. Tighten the cams. Step 23 Fittings you will need for this step: Attaching the drawer Handle Machine screw...
- Page 17 Assembly Instructions Step 24 Fittings you will need for this step: Attaching drawer Drawer bottom support Screw bottom support # 10510 X5 # 25440 X15 Place the drawer bottom support 10510 on back side of the drawers. See the detail drawing, for correct direction.
- Page 18 Fix the rail into the slot of the drawer. Use machine screw 26221 (inside the drawer) tight up and fix drawer to the rail. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0845 6400800...
