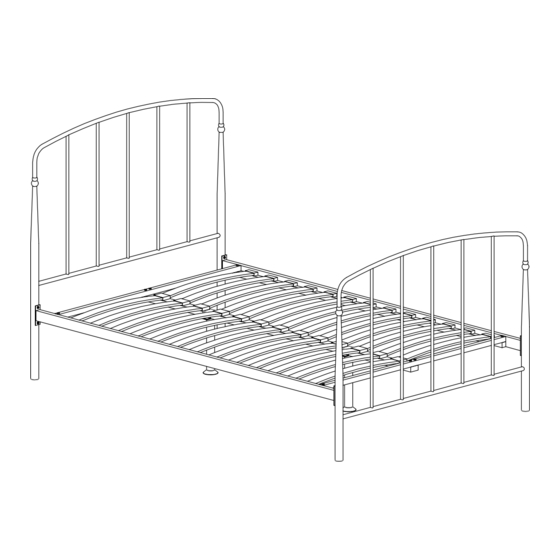

Aurelie 4', 4'6" and 5' Bed
Assembly lnstructions - Please keep for future reference
Dimensions 4'
Width - 128cm
Length - 199cm
Height- 120cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Dimensions 4'6"
Width - 143cm
Length - 199cm
Height- 120cm
Dimensions 5'
Width - 158cm
Length - 209cm
Height- 120cm
557/4861
543/9559
539/6207
Issue 17-05-16
